Working Height
43.15m
Horizontal Reach (Riser Retracted)
21.26m
Width (Axles Retracted)
2.46m
Lift Capacity
272kg
Gradeability
45%
Weight
21,092kg
Reliable diesel performance
All-terrain capability
Has power to platform
Rotating platform for flexibility
Working envelope
Dimension drawing

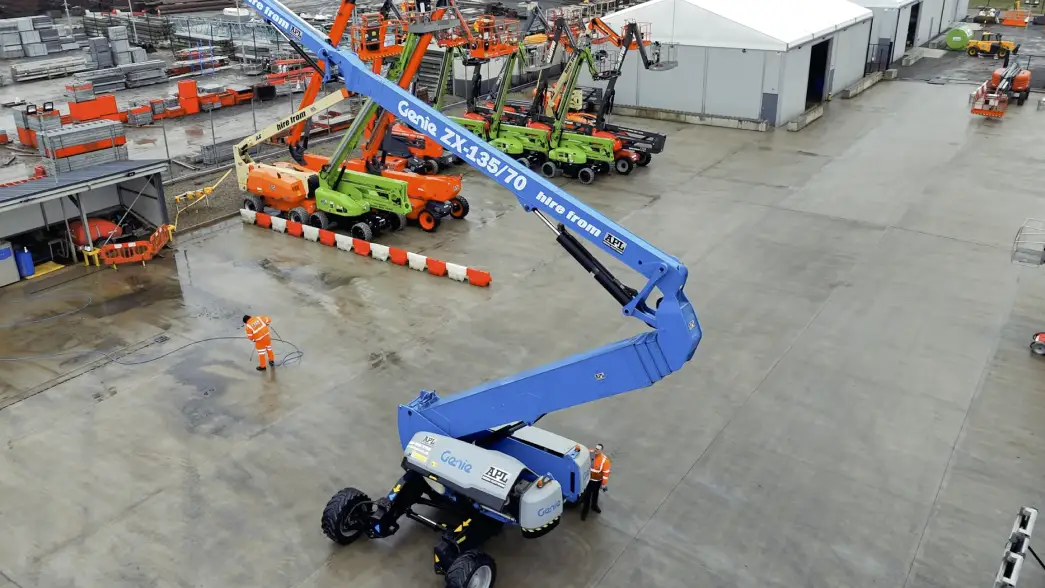

The Genie ZX-135/70 is a diesel-powered articulating boom lift designed for extensive reach and versatility in challenging work environments. It offers a maximum working height of 43.15 meters and a horizontal reach of 21.26 meters, enabling access to difficult-to-reach areas. The platform supports a lift capacity of 272 kilograms and features a 160° platform rotation and 110° vertical jib rotation for precise positioning. The machine's design includes a stowed width of 2.46 meters with axles retracted and 3.94 meters when extended. Equipped with four-wheel drive and full-time positive traction, the ZX-135/70 ensures superior performance on rough terrains. Additional features include a 360° continuous rotation turntable and a 5.87-meter below-ground reach, enhancing operational flexibility. The machine's weight is 21,092 kilograms.
Ideal for outdoor construction and industrial applications, the Genie® ZX-135/70 articulating boom lift delivers access to up, over and out applications inaccessible by a traditional jib.
Four-wheel drive with full-time positive traction means that this articulating boom can handle rough jobsite ground conditions with ease.
360˚ continuous rotation turntable and 160˚platform rotation for fast, easy positioning
141 ft | 43.15 m
600 lb | 272 kg
21,092kg *

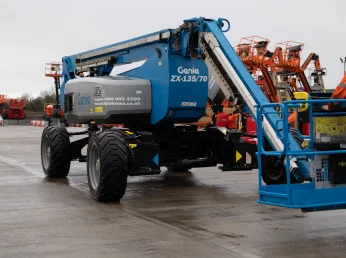

Maximise site flexibility with the innovative X-Chassis design. Retracted to a narrow 2.46m profile, it easily navigates tight transport spaces. When extended to a 3.94m working footprint, it delivers the rock-solid foundation required for confident 43.15m high-reach operations.

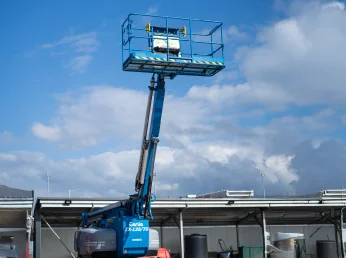

Beyond exceptional height, this machine boasts 23.01m of up-and-over clearance. Featuring a telescoping jib with 110° vertical rotation, operators can effortlessly navigate complex site hazards, rooflines, and structural steel to position the basket exactly where needed.

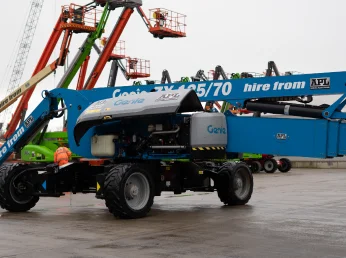

Maximise on-site efficiency with a continuous 360-degree rotating turntable. Operators can swing the boom in a complete circle without repositioning the heavy base. Paired with 160° basket rotation, this ensures pinpoint accuracy and eliminates wasted movement.
A dedicated ground-level control panel enhances safety and simplifies maintenance. Ideal for pre-use checks or emergency lowering, it allows managers to operate the boom from the floor. Built-in diagnostics also enable rapid troubleshooting to keep downtime minimal.

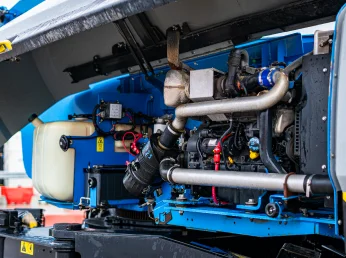

Powered by a reliable 74 hp turbo diesel engine, this machine provides the essential torque to navigate harsh conditions. Combined with 4-wheel drive and positive traction , it guarantees peak performance across muddy, uneven ground and steep 45% gradients.

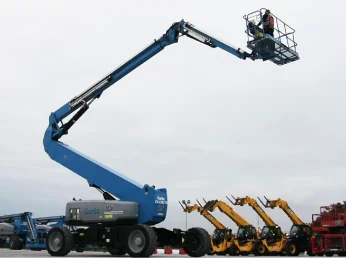

While designed for extreme heights, the ZX-135/70 also excels going downwards. Boasting an impressive 5.87m below-ground reach, it is the ideal solution for dockyard maintenance, deep foundation works, and bridge inspections from a secure, ground-level position.
