Diesel Boom Lift
| Working Height | 26.38m |
| Platform Height | 24.38m |
| Horizontal Outreach | 15.80m |
| Up and Over Height | 9.78m |
| Swing (Continuous) | 360° |
| Lift Capacity | 227kg |
| Platform Rotator | 180° |
| Jib Overall Length | 1.83m |
| Jib Range of Articulation | 130° (+70°/-60°) |

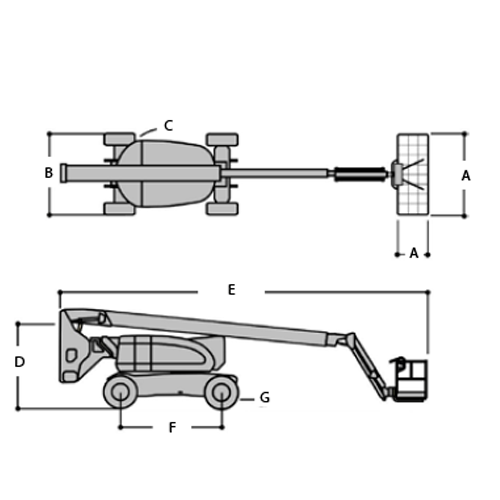

| A. Platform Size | 0.91m x 1.83m |
| B. Overall Width | 2.49m |
| C. Tailswing | 0.76m |
| D. Height Stowed | 3.00m |
| E. Length Stowed | 11.13m |
| F. Wheelbase | 3.05m |
| G. Ground Clearance | 0.28m |
| Gradeability | 45% |
| Weight | 15,558kg |

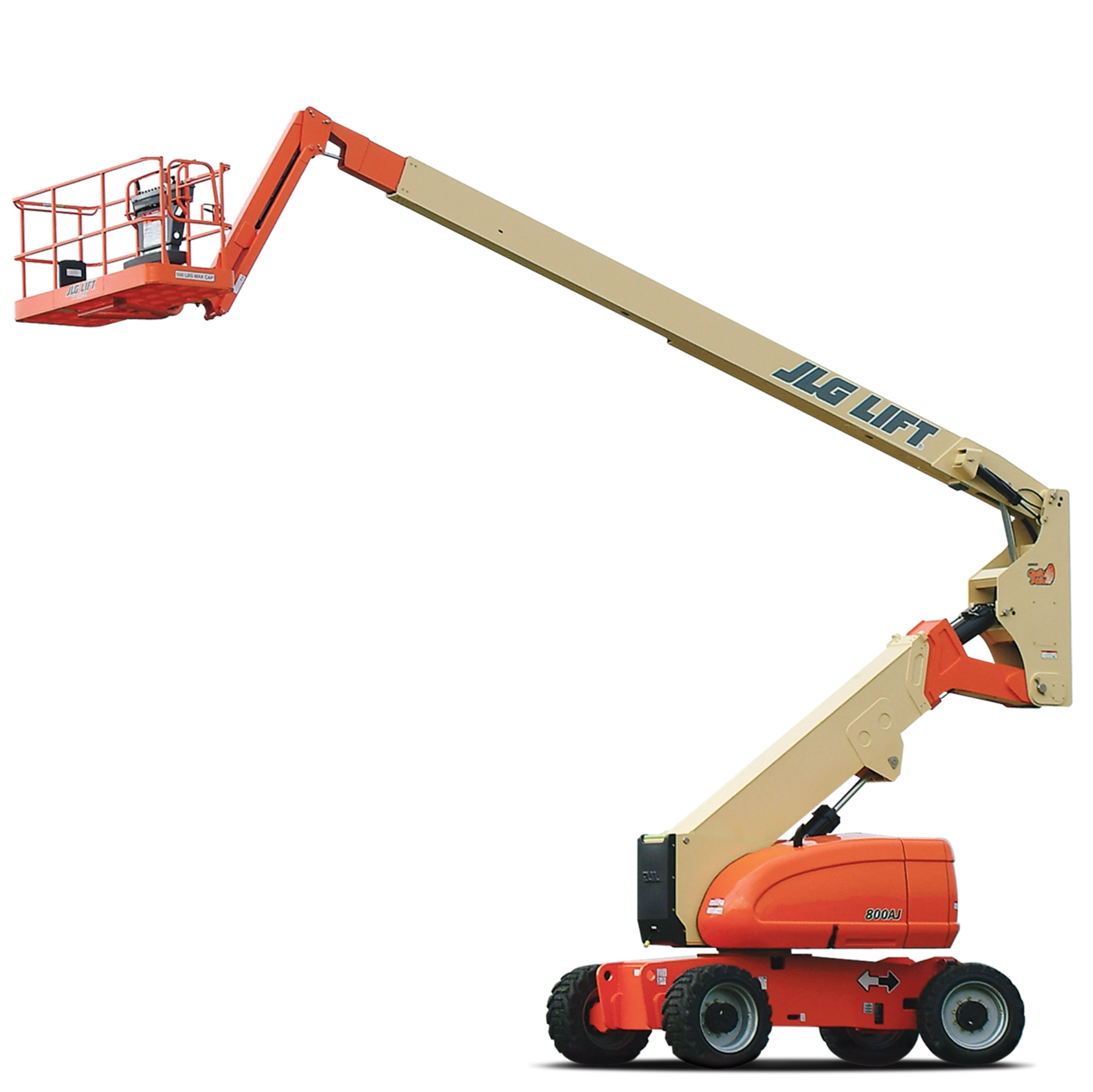

The JLG 800AJ is a diesel-powered articulating boom lift designed for versatile access in challenging work environments. It offers a maximum platform height of 24.38 meters and a horizontal outreach of 15.8 meters, enabling operators to reach elevated and distant work areas effectively. The platform has an unrestricted capacity of 227 kilograms, accommodating two occupants with tools. Key features include a 1.83-meter jib with a 130° range of articulation, 180° platform rotation, and 360° continuous swing, providing enhanced maneuverability and precision. The machine's dimensions are 11.13 meters in length, 2.49 meters in width, and 3.00 meters in height when stowed, facilitating ease of transport and storage. Equipped with four-wheel drive and a 45% gradeability, the 800AJ ensures superior performance on rough terrains. Additional features include JLG's QuikStick® boom design for reduced lift/lower cycle times and customer-preferred controls for intuitive operation. The machine's weight is approximately 15,558 kilograms.
JLG’s patented QuikStick® boom design significantly reduces lift/lower cycle times
Best in class reach envelope for enhanced productivity
Customer-preferred controls mean fewer buttons and switches used to position the platform and less time spent learning to use the platform controls
Lower hydrocarbon, carbon monoxide, particulate and NOx emissions with Stage IIIB-compliant engine
Equipped with hydrostatic drive for easy, precise, infinitely-variable-speed manoeuvrability. Go from ground to over 26m in under 50 seconds an enjoy industry best reach envelope with exclusive QuickStik boom
Conquer rough terrain with standard oscillating axle and four-wheel drive, delivering optimised grip and stability
