Skyjack SJ45 AJ+

ENQUIRE NOW Call hire desk 0800 085 3709

Specifications

Max. Working Height

15.54m

Max. Platform Height

13.72m

Horizontal Outreach

6.93m

Up and Over Height

7.45m

Platform Size (A)

0.76m x 1.83m

Stowed Width (B)

2.29m

Tailswing (C)

0.61m

Stowed Height (D) x Length (F)

2.06m/6.00m

Lift Capacity SWL

300kg

Turning Radius (Inside/Outside)

1.50m/4.34m

Axle Oscillation

12.70cm

Wheelbase

2.03m

Gradeability

40%

Rotation

355° NC

Platform Rotation

170°

Jib Length

1.40m

Jib Range

+70° / -75°

Max. Wind Rating

12.5m/s

Max. Number of Persons

2

Weight

5,075kg

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Please follow all health and safety guidelines when using our products. Always wear the appropriate protective equipment and adhere to local regulations to ensure safe handling and operation.

Health & Safety downloads

Application & uses

Diesel Powered

Diesel Powered

Reliable diesel performance

4 x 4 Drive

4 x 4 Drive

All-terrain capability

Power-To-Platform

Power-To-Platform

Has power to platform

Basket Rotation

Basket Rotation

Rotating platform for flexibility

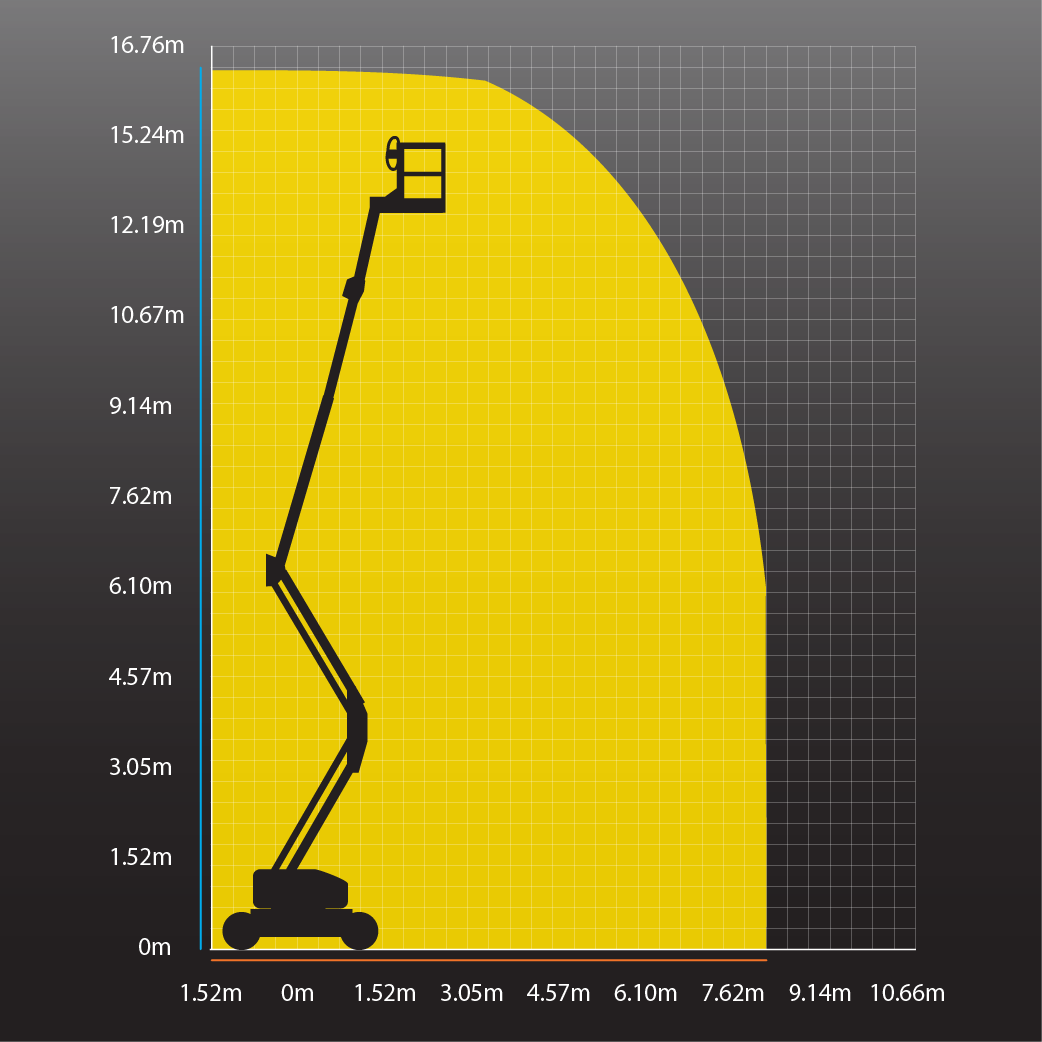

Working envelope

Working envelope

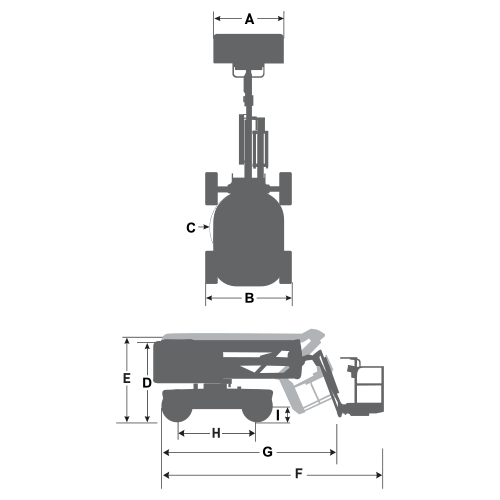

Dimension drawing

Dimension drawing

MACHINE INFORMATION

The Skyjack SJ45AJ+ is 45ft rough terrain articulating boom lift that offers a working height of 15.54m, a horizontal outreach of 6.93m and an 'Up and Over' height of 7.45m. It is Skyjacks' latest generation of machine and features substantial improvements from its predecessor, the SJ46AJ including its SMARTORQUE technology which allows a smaller, lighter and more economical engine to achieve the same power as larger machine. Thanks to this new technology, the SJ45AJ+ boasts up to 45% fuel and 20% carbon emission savings compared to previous models. It can be driven at its full height of 13.72m and features a unique drive and steer direction sensing system which means the boom lift's drive function operates in accordance with the general orientation of turret's counterweight over the chassis. This means that forward on the joystick will always make the machine drive forward, regardless of whether the machine is slewed or not. The SJ45AJ+ also features an onboard generator allowing the operator to power their tools directly from the machine, eliminating trailing cables and potential trip hazards.

STANDARD FEATURES

EASYDRIVE™ Direction sensing drive and steer controls

SKYRISER™ True vertical rise allowing for easier maneuverability in tight spaces

40% Gradeability, Oscillating steer axle and AXLDRIVE™ Axle-based 4WD system allowing for exceptional traction on even the most challenging terrains

Increased Lift Capacity

Benefit from a 300kg safe working load (S.W.L)

Driveable at full height

Can be driven at maximum platform height of 13.72m increasing efficiency by reducing the amount of repositioning needed.

Increased Lift Capacity

45% fuel and 20% carbon emission savings compared to other models
