Electric Scissor Lift

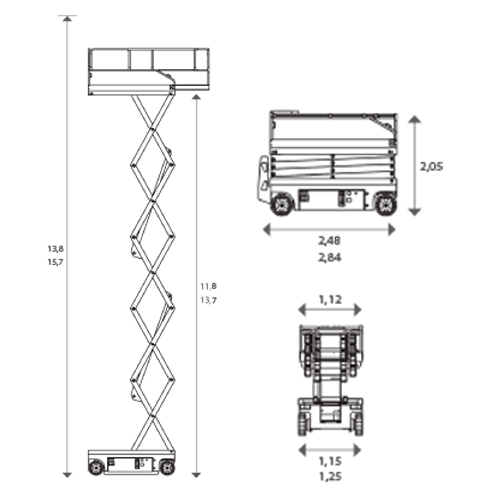

| Working Height | 13.80m |
| Platform Height | 11.80m |
| Overall Length | 2.48m |
| Overall Width | 1.19m |
| Overall Height (Rails Up) | 2.59m |
| Overall Height (Rails Down) | 2.05m |
| Platform Size | 2.27m x 1.12m |
| Lift Capacity (SWL) | 320kg |
| Deck Extension | 0.90m |
| Ground Clearance (Stowed) | 0.10m |
| Ground Clearance (Raised) | 0.019m |
| Wheelbase | 1.87m |
| Turning Radius (Inside) | 0m |
| Turning Radius (Outside) | 2.20m |
| Gradeability | 25% |
| Weight | 2,880kg |

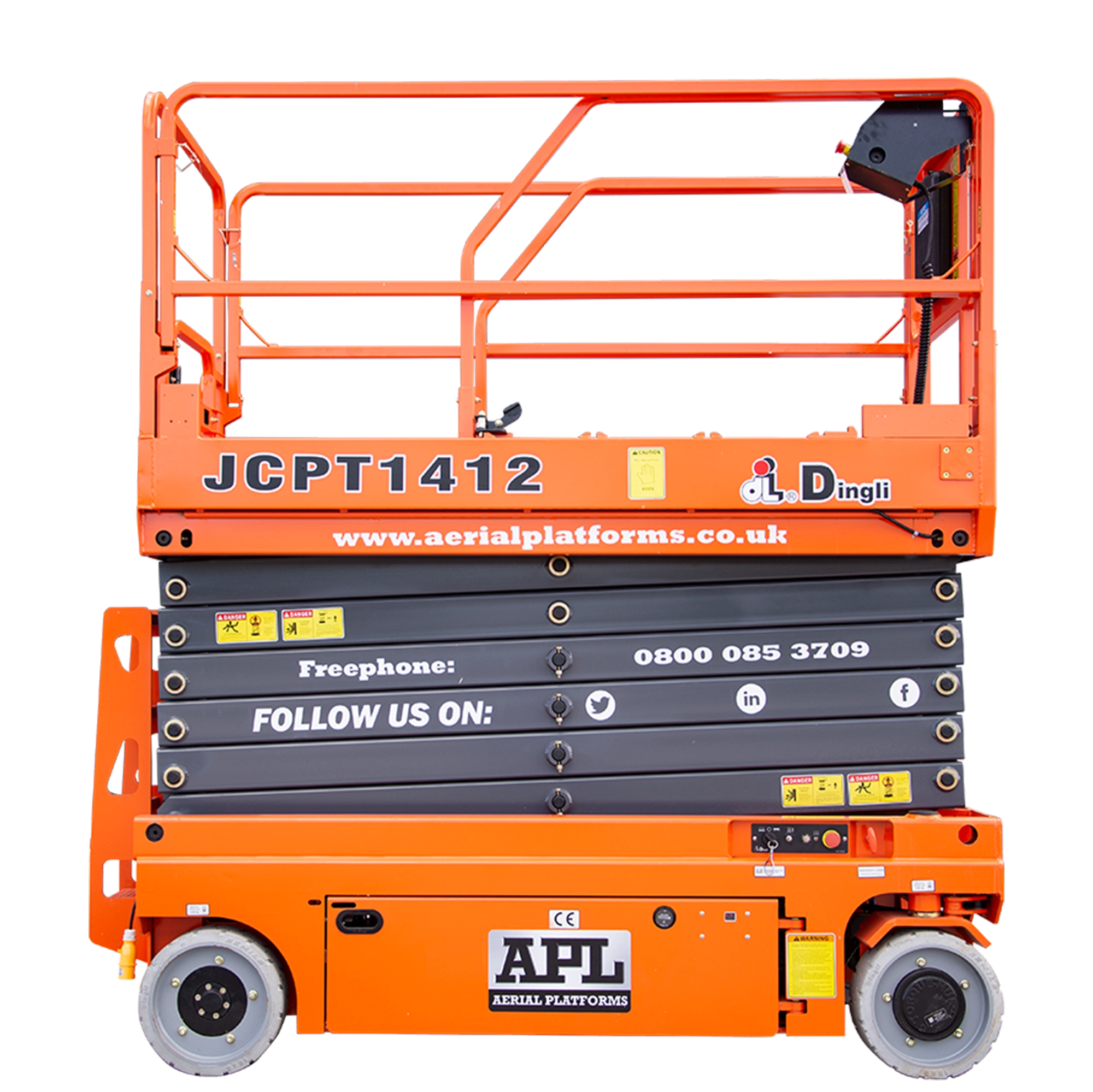

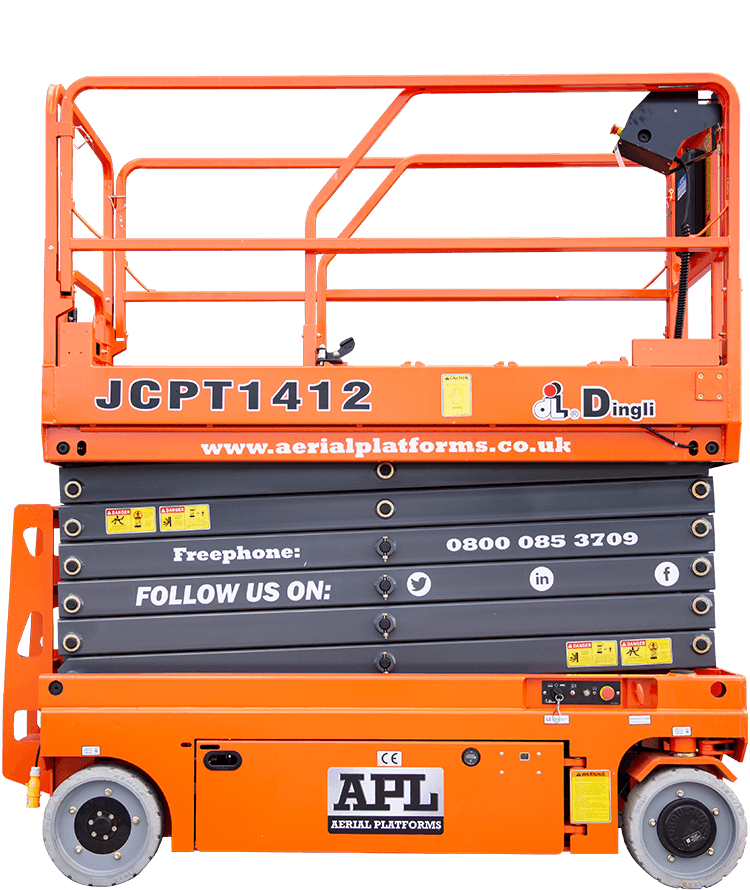

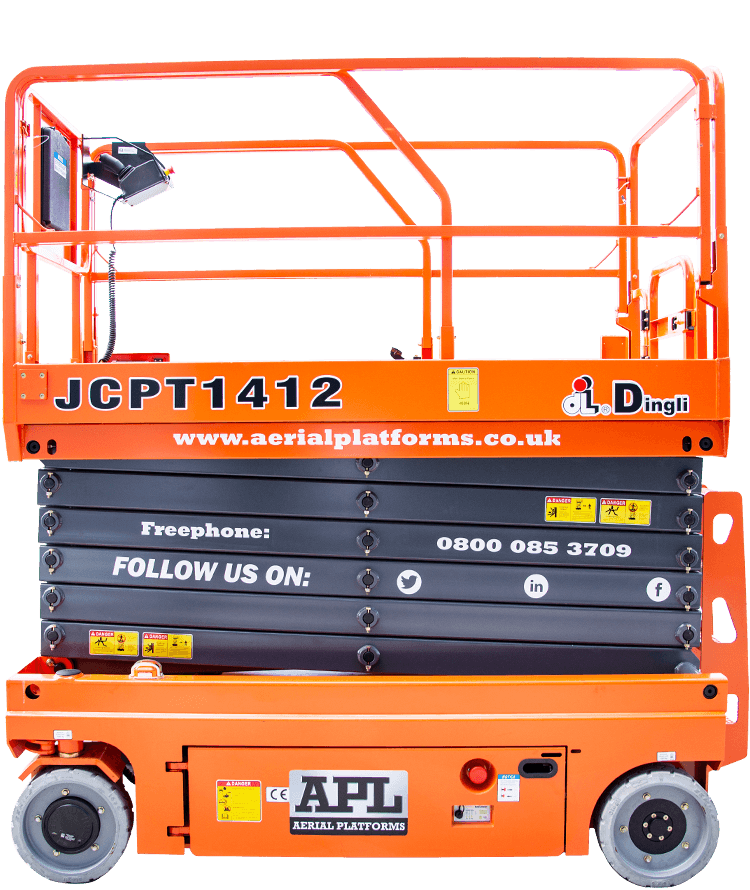

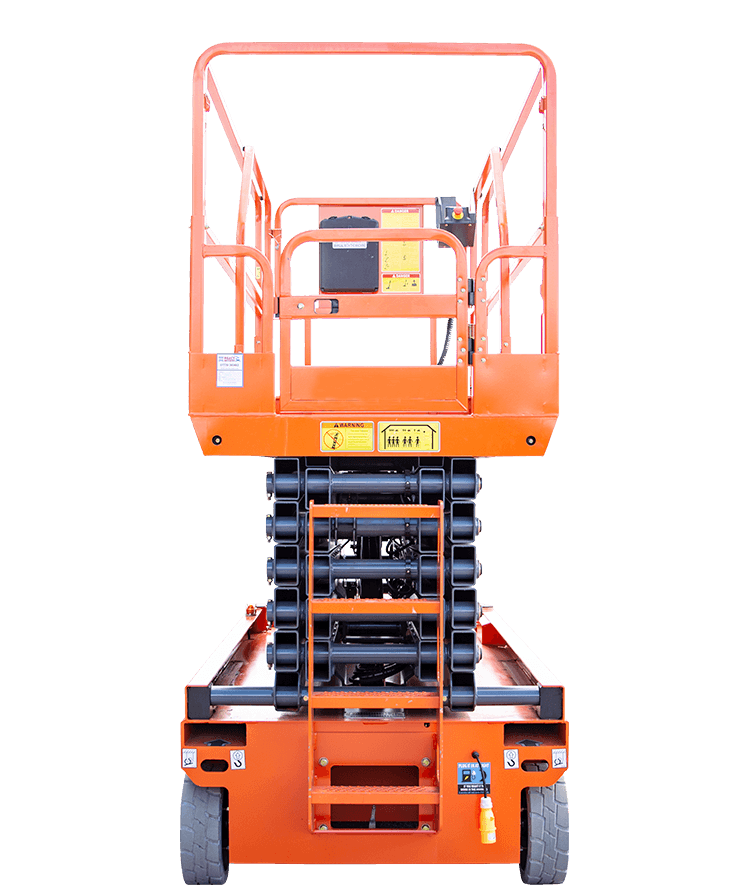

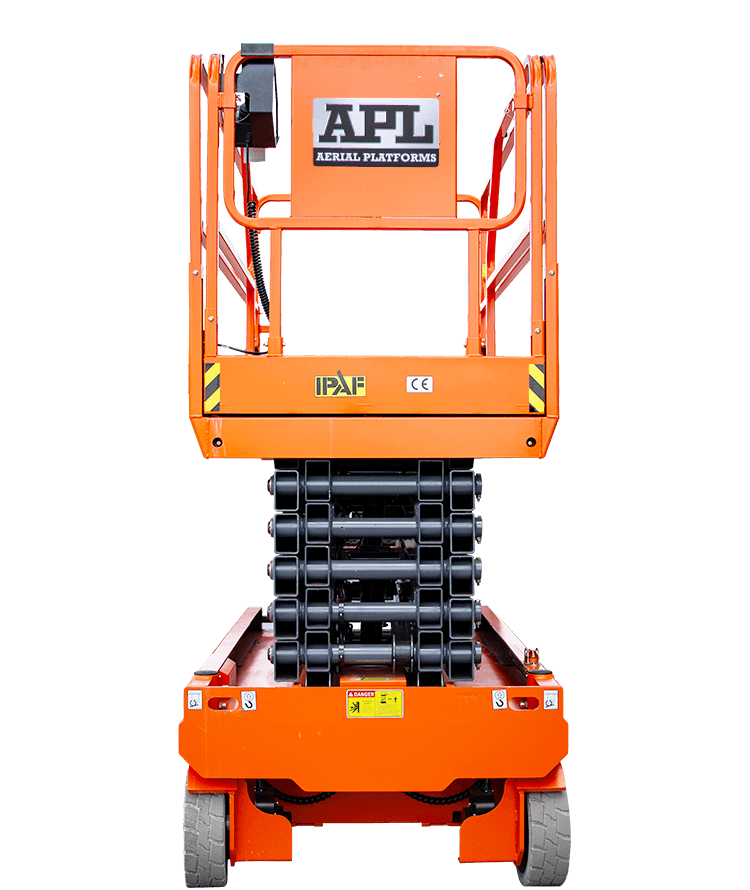

The Dingli JCPT1412DC is an electric scissor lift offering a maximum working height of 13.80 meters and a platform capacity of 320 kilograms. The platform measures 2.27 meters by 1.12 meters and includes a 0.90-meter extension for enhanced reach. The lift's compact design features an overall length of 2.48 meters, a width of 1.19 meters, and a stowed height of 2.59 meters (reducible to 2.05 meters with guardrails folded), facilitating maneuverability in confined spaces. It has a zero inside turning radius and an outside turning radius of 2.20 meters, with a gradeability of 25%. Weighing 2,880 kilograms, the JCPT1412DC is equipped with non-marking tires and offers power-to-platform functionality. Additional features include proportional drive controls with full-height drive capability, a self-locking gate on the platform for added safety, and an onboard diagnostic system.
Self-lock gate on platform for added safety
Proportional drive controls with the ability to drive at full height
2.27m x 1.12m platform size 0.90m extending deck for increased productivity

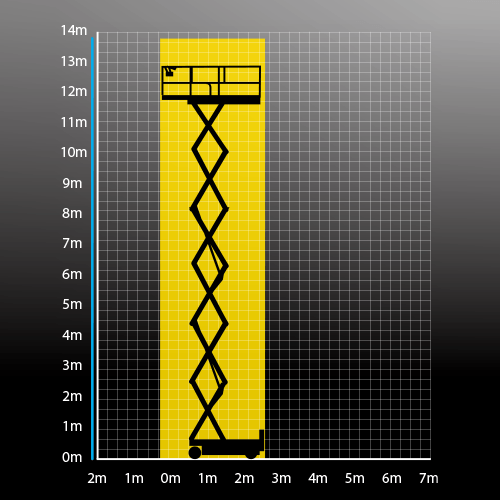

13.80m working height with the ability to drive at full height
13.80m working height with the ability to drive at full Low weight of just 2,880kg which is considerably lighter than other machines with similar working heights
320kg lift capacity making it ideal for jobs when a number of tools are required to be lifted at once
