Diesel Scissor Lift
| H. Working Height | 34.00m |
| A. Max Platform Height | 31.50m |
| C. Platform Height (Stowed) | 2.47m |
| DxF. Platform Dimensions | 6.66 x 2.80m |
| ExF. Platform Dimensions (Deck Extended) | 9.66 x 2.80m |
| H1. Height Stowed | 3.63m |
| H3. Height Stowed (Rails Folded) | 2.87m |
| LxB. Machine Length x Base | 7.02 x 2.98m |
| G. Wheelbase | 4.63m |
| M. Ground Clearance | 360mm |
| Lift Capacity | 1000kg (4 Pers. + 680kg) |
| Lift Capacity on Extension Deck | 1000kg (4 Pers. + 680kg) |
| Gradeability | 35% |
| Weight | 31,200kg |

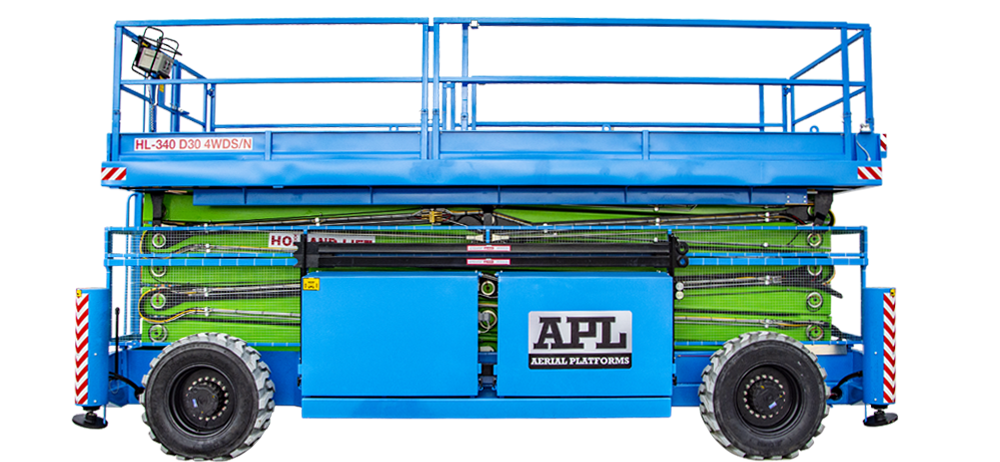

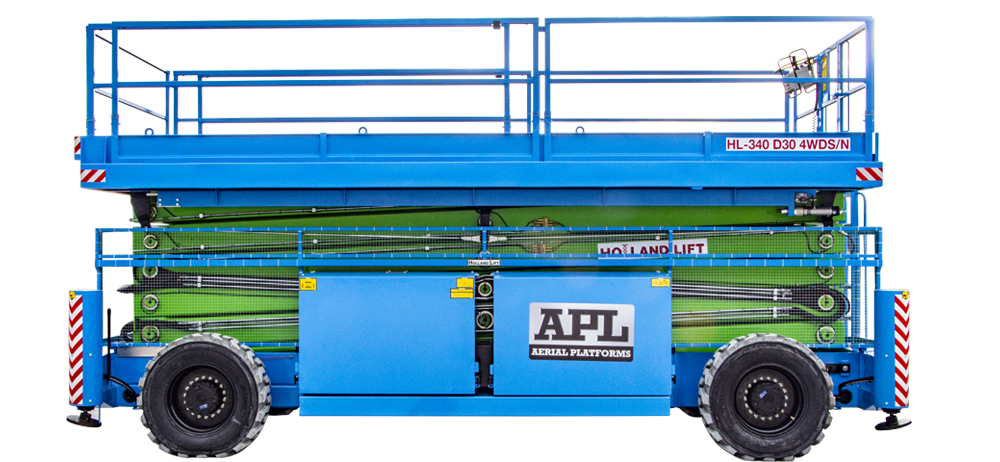

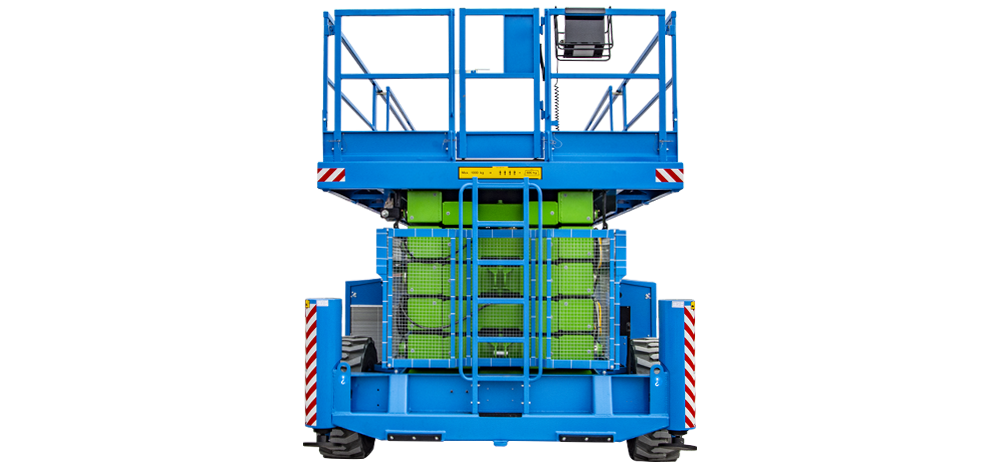

The Holland Lift HL-340 D30 is a diesel-powered rough terrain scissor lift offering a maximum working height of 34 meters and a platform capacity of 1,000 kilograms, accommodating up to four occupants with tools. The platform measures 6.66 meters in length and 2.80 meters in width, extending to 9.66 meters with a 3-meter deck extension, providing ample workspace. Equipped with four-wheel drive, oscillating axles, and self-leveling jacks, it ensures stability and maneuverability on challenging terrains. The lift features a gradeability of 35% and can be driven at full height, enhancing productivity on site.
Scissor skirt to improve safety on site and reduce risk of injury from the scissor pack
Drivable at full height of 32m
6.66m x 2.80m platform dimensions with an additional 3m deck extension
Offering a 1000kg lift capacity, the HL-340 is suitable for multiple men and their tools
Four wheel drive with oscillating axle and self-levelling jacks
Work for longer thanks to the onboard 230V generator and power supply on platform
