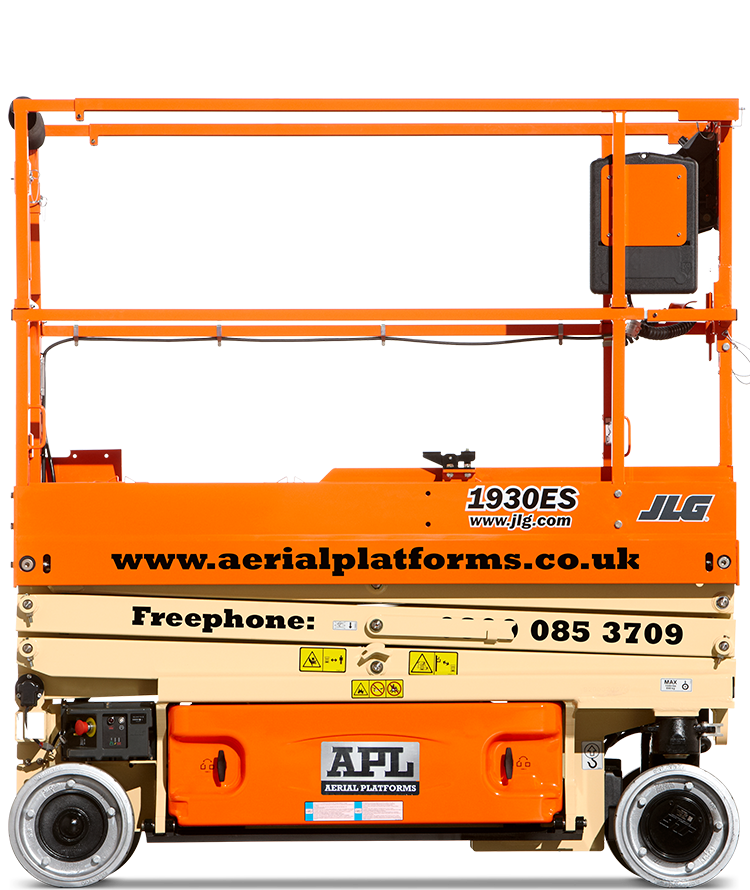

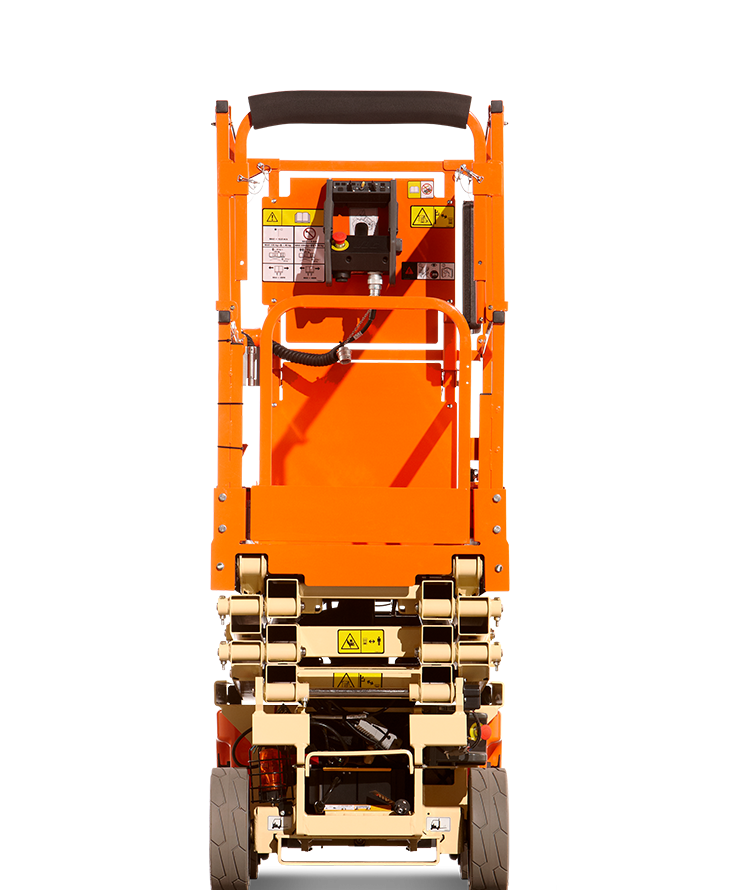

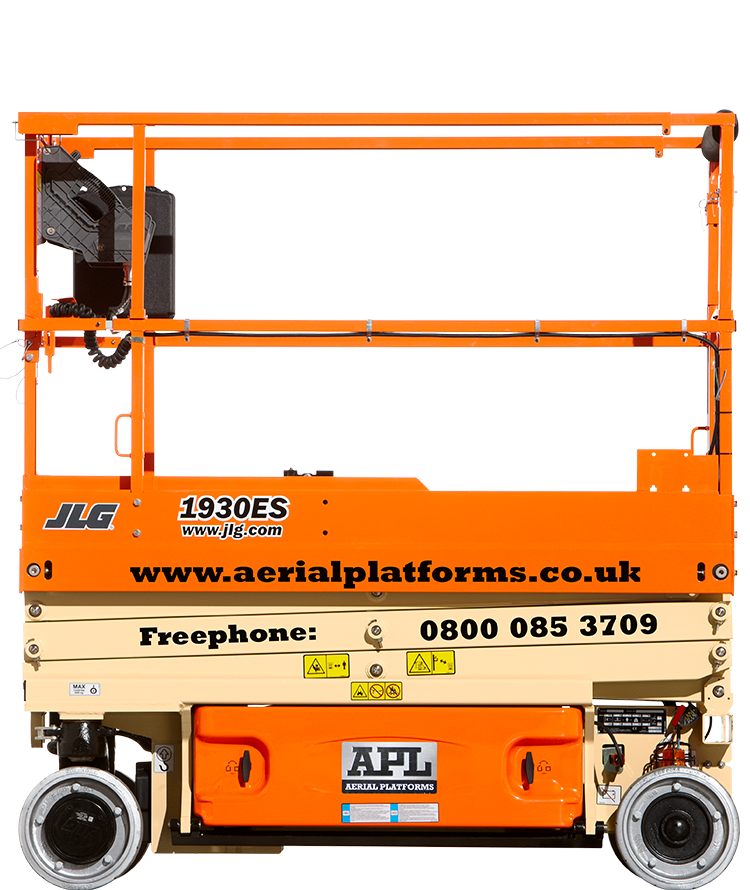

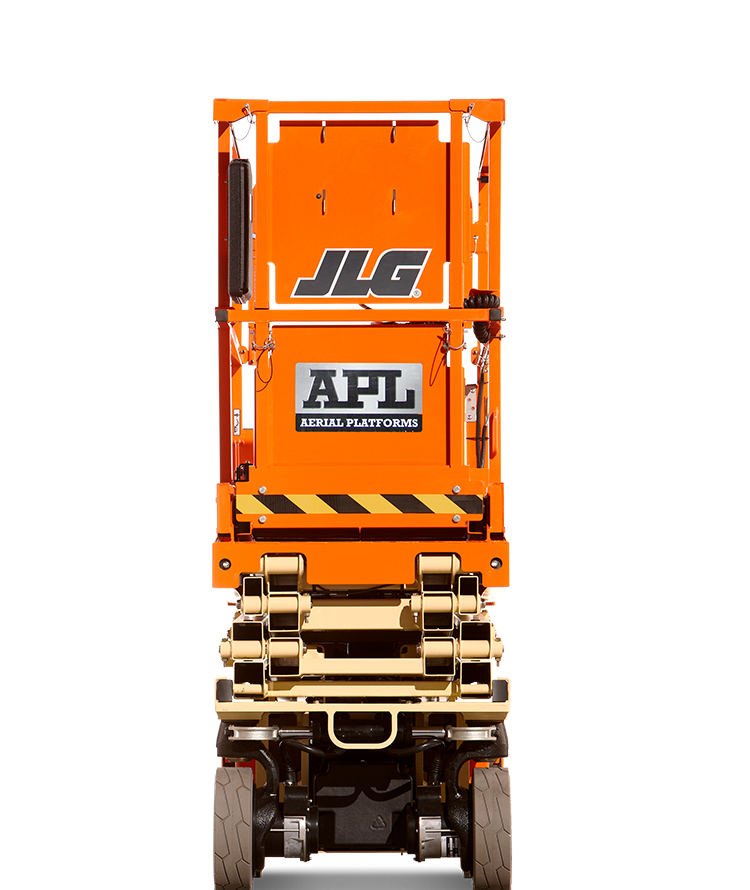

JLG 1930ES Electric Scissor Lift

Platform Specifications

Working Height 7.72m
Platform Height 5.72m
A. Stowed Height 2.02m
B. Platform Railing Height 1.10m
C. Stowed Height (Rails Folded) 1.59m
D. Platform Size (W x L) 0.76m x 1.87m
E. Deck Extension 0.90m
F. Overall Width 0.76m
G. Overall Length 1.87m
H. Wheelbase 1.60m
I. Ground Clearance 0.09m
Lift Capacity 230kg
Capacity On Deck Extension 120kg
Maximum Drive Height Full Height
Turning Radius (Inside) 0m
Turning Radius (Outside) 1.75m
Gradeability 25%
Weight 1,550kg
Battery Powered
Diesel Powered
Dual Fuel
Hybrid
4x4
Jack Legs
Non Marking Tyres
Power-To-Platform
Basket Rotation
Enquire Now
×

Call our hire desk
0800 085 3709

MACHINE INFORMATION

STANDARD FEATURES

Max working height of 7.72m suitable for a number of external applications

Benefit from a lift capacity of 230kg ideal for a range of scenarios

Non-marking solid tyres perfect for work on sensitive flooring

MORE ECONOMIC

Electric power for zero emissions and near-silent running indoors

MORE PRODUCTIVE

Boost efficiency with direct electric drive

MORE ACCESS

Get into more places with compact dimensions and precise control system

WORKING ENVELOPE

DIMENSIONS

HIRE JLG 1930ES Electric Scissor Lift
