Electric Mast Boom Lift
| Working Height | 12.65m |
| Platform Height | 10.65m |
| Working Outreach | 6.05m |
| Up and Over Height | 7.12m |
| Swing | 345° |
| Lift Capacity | 200kg |
| Jib Overall Length | 4.14m |
| Jib Range of Articulation | 120° (+60°/-60°) |
| A. Platform Size | 0.70m x 1.05m |
| B. Overall Width | 1.20m |
| C. Tailswing | 13cm |
| D. Height Stowed | 1.99m |
| E. Overall Length | 3.65m |
| F. Wheelbase | 1.60m |
| G. Ground Clearance | 10cm |
| Turning Radius (Inside) | 0.75m |
| Turning Radius (Outside) | 2.60m |
| Gradeability | 30% |
| Weight | 4,900kg |

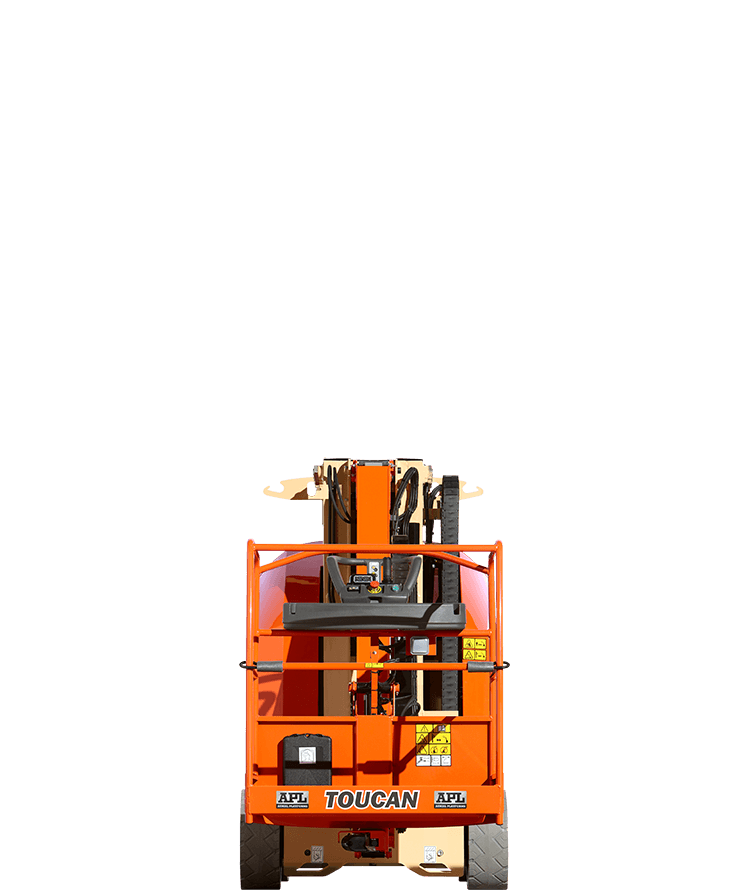

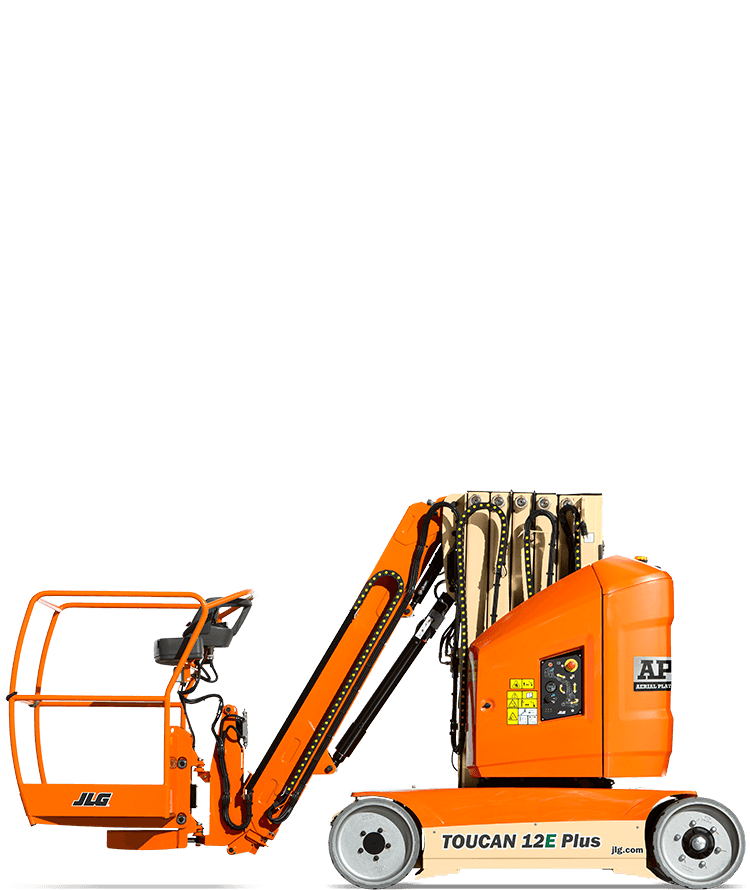

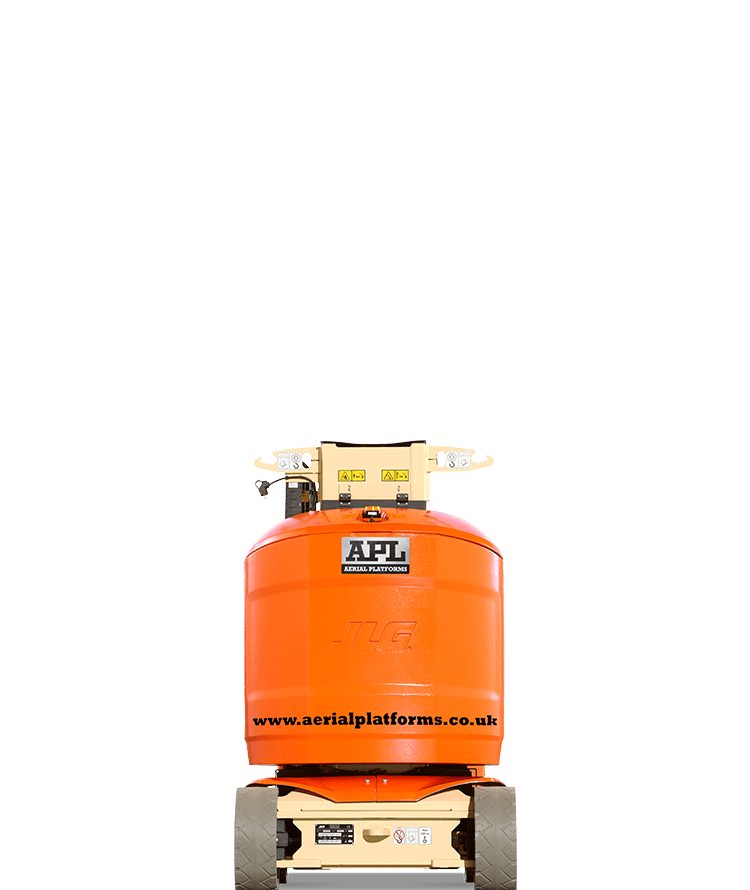

The JLG Toucan 12E Plus is an electric mast boom lift designed for efficient operation in confined spaces. It offers a maximum working height of 12.65 meters and a horizontal outreach of 6.05 meters, with a platform capacity of 200 kilograms. The lift features a 4.14-meter jib with a 120-degree range of articulation (+60°/-60°), enhancing versatility in positioning. Its compact design includes an overall width of 1.20 meters, a stowed height of 1.99 meters, and 13cm tailswing, making it suitable for indoor applications with limited space. The Toucan 12E Plus is equipped with non-marking tires and immediate-response AC drive motors for greater torque and efficiency.
Electric power for zero emissions and near-silent running indoors.
No waiting with immediate-response AC drive motors for greater torque and efficiency.
Extended reach and up-and-over height with heavy duty forklift-style mast and versatile articulating jib.
12.65 m / 41.5 ft
6.70 m / 22 ft
7.12 m / 23.4 ft
