Snorkel S2755BE

Specifications

Max. Working Height

8.50m

Max. Platform Height (A)

6.50m

Platform Size (Stowed) (B)

1.40m x 2.73m

Platform Size (Extended) (C)

1.40m x 3.93m

Extension Deck Length

1.20m

Overall Width (D)

1.45m

Stowed Length (E)

3.30m

Stowed Height (F)

2.35m

Ground Clearance

260mm

Platform Capacity (SWL)

420kg

Max. Drive Height

6.50m

Max. Wind Speed

12.5m/s

Gradeability

35%

Max. Outrigger Levelling (Front to Rear)

Max. Outrigger Levelling (Side to Side)

10º

Max. Drive Speed (Stowed)

5.2km/h

Raise/Lower Time

26/30 secs

Inside Turning Radius

2.50m

Outside Turning Radius

4.75m

Weight

2,780kg

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Please follow all health and safety guidelines when using our products. Always wear the appropriate protective equipment and adhere to local regulations to ensure safe handling and operation.

Health & Safety downloads

Application & uses

Diesel Powered

Diesel Powered

Reliable diesel performance

Dual Fuel

Dual Fuel

Flexibility in fuel options

Hybrid

Hybrid

Efficient hybrid system

4 x 4 Drive

4 x 4 Drive

All-terrain capability

Jack Legs

Jack Legs

Stability on uneven ground

Non Marking Tyres

Non Marking Tyres

Indoor and delicate surface use

Power-To-Platform

Power-To-Platform

Has power to platform

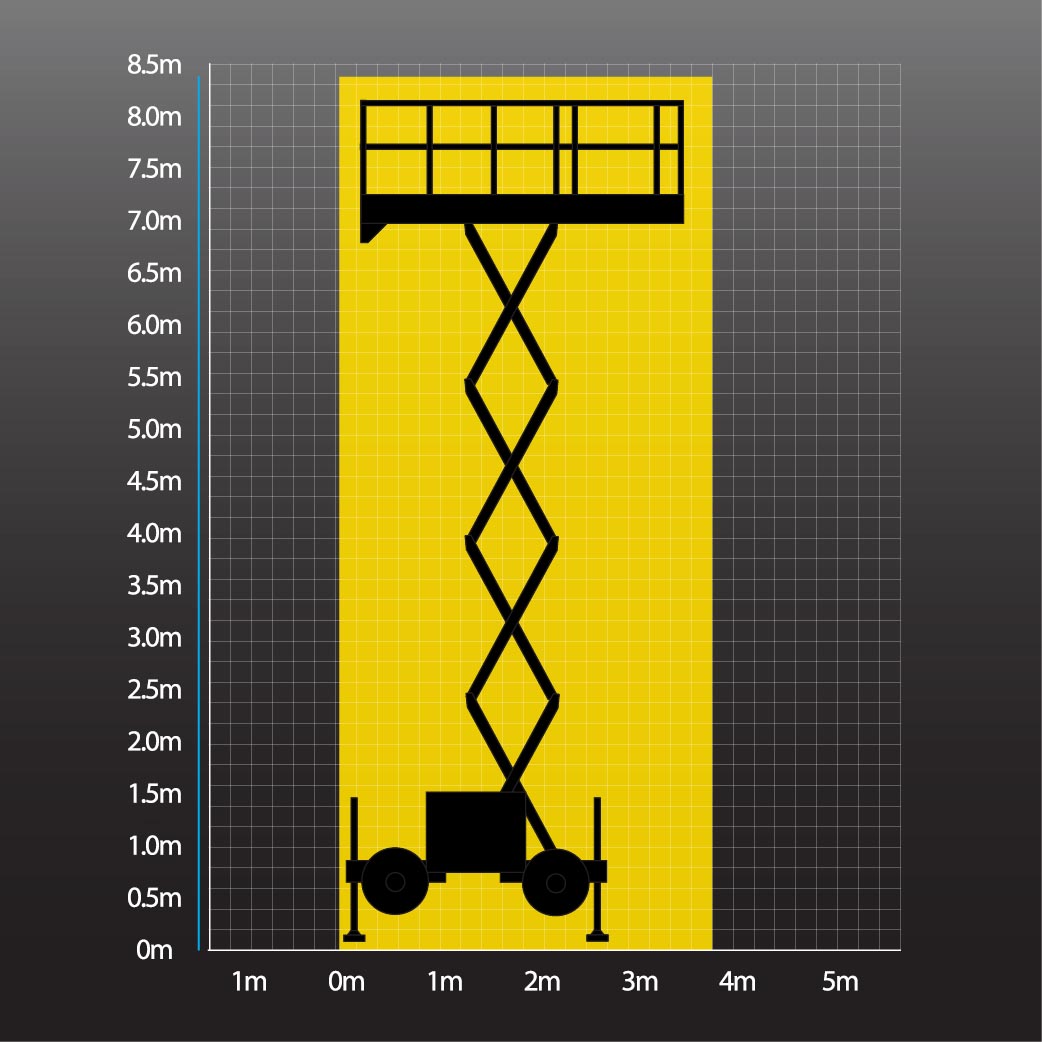

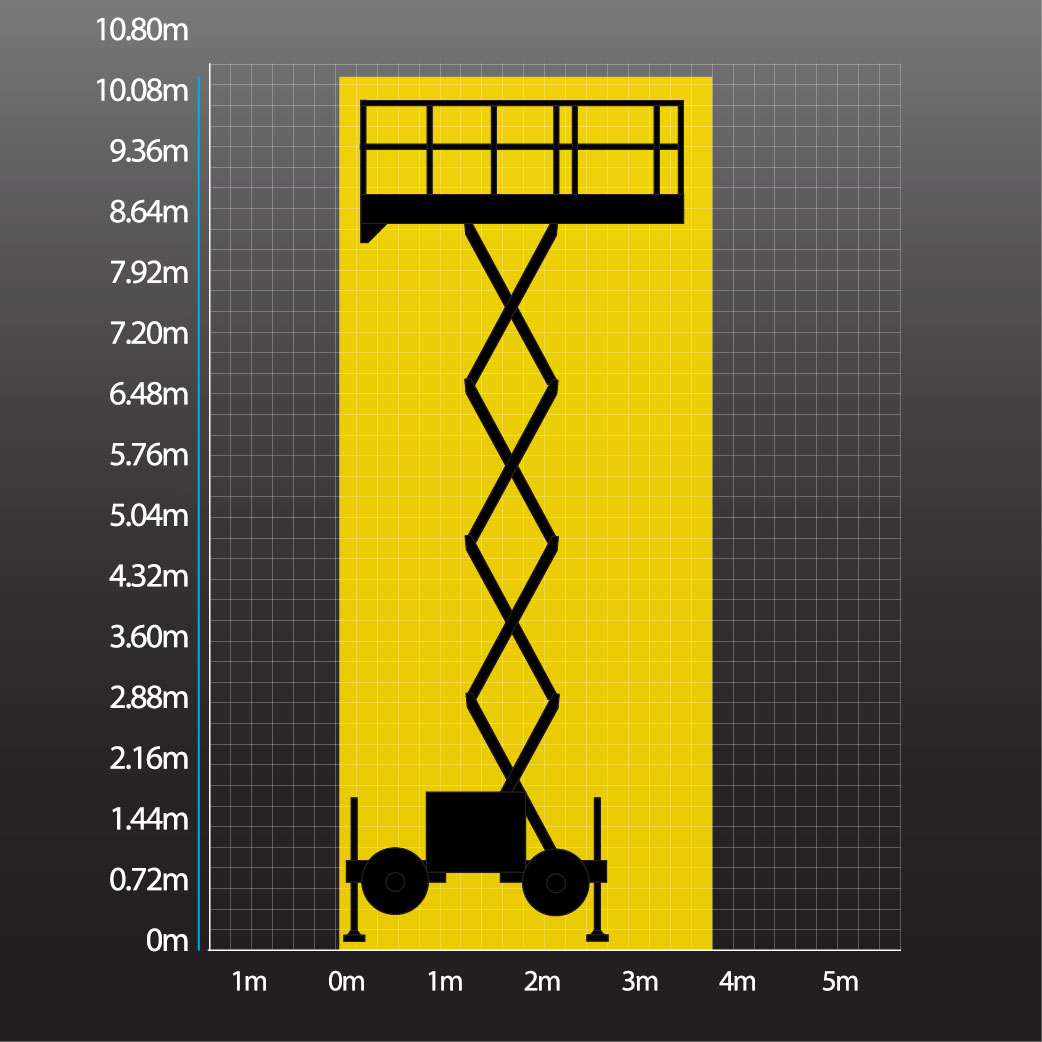

Working envelope

Working envelope

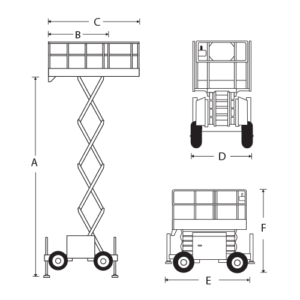

Dimension drawing

Dimension drawing

MACHINE INFORMATION

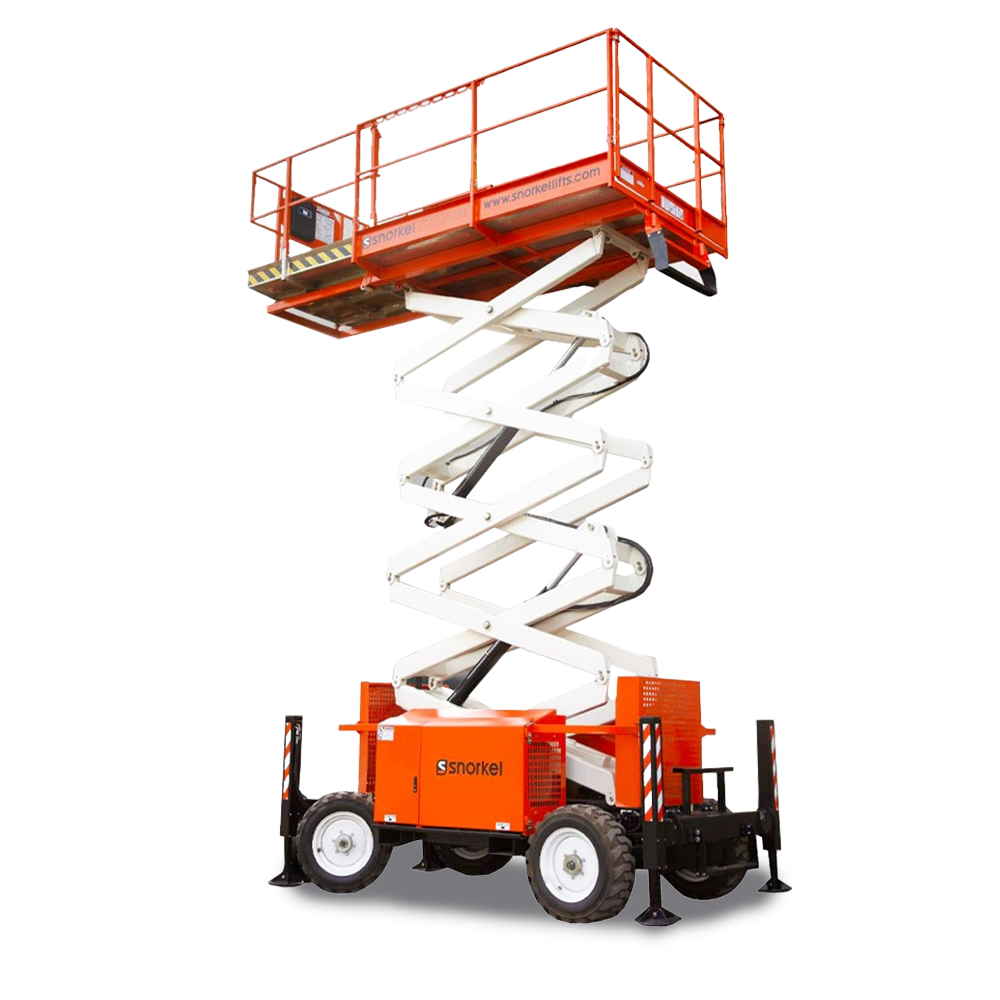

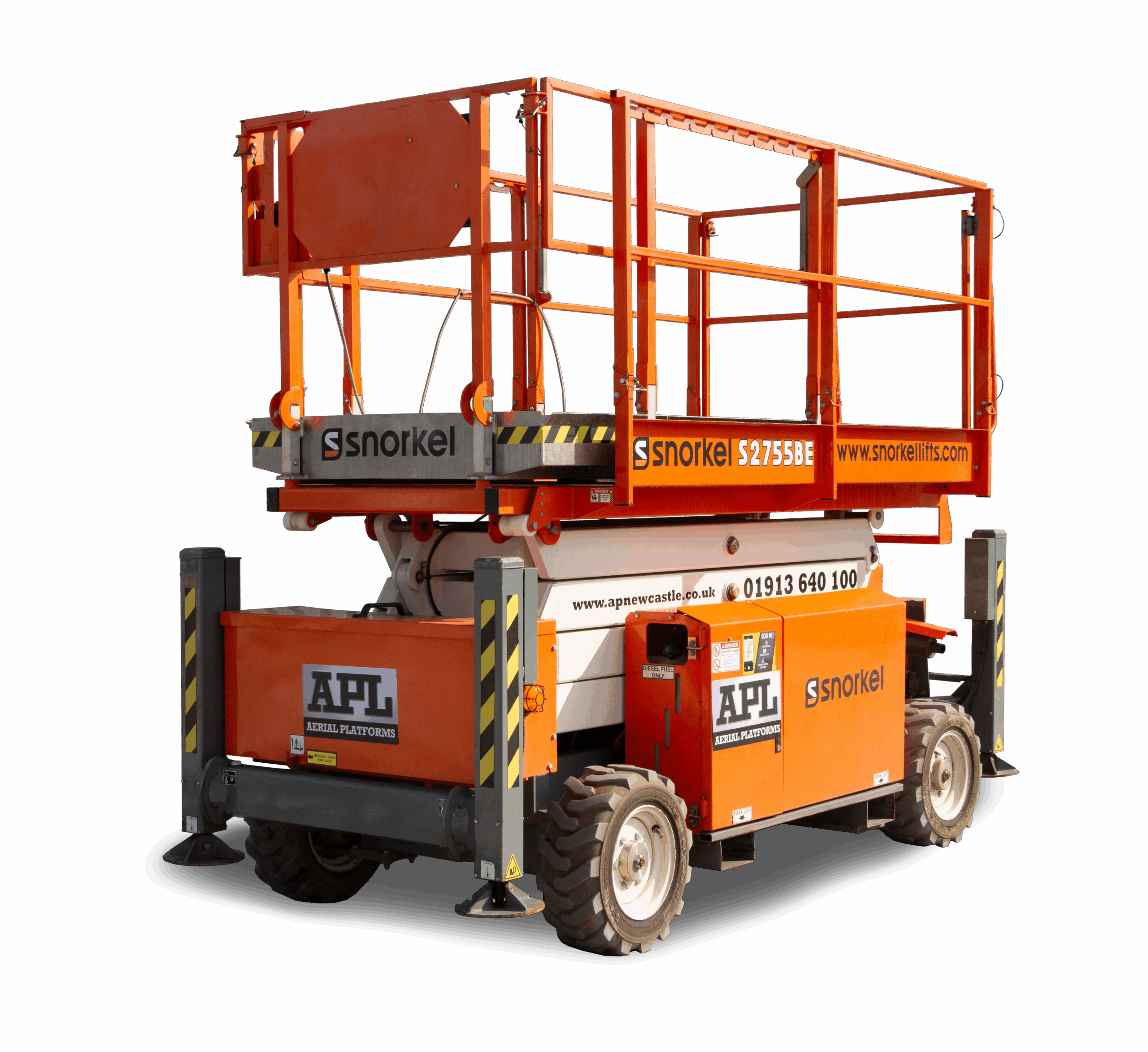

The Snorkel S2755BE is a compact rough-terrain scissor lift which can be operated on either diesel or electric power. It features 4-wheel drive and rough terrain tyres, which combined with its self-levelling outriggers and oscillating axle make it perfect for both indoor and outdoor work. The Snorkel S2755BE has some impressive specifications including a 8.50m working height and a 420kg safe working load (SWL). It also comes equipped with power to platform and a large platform size of 1.40m x 2.73m (with 1.20m deck extended) meaning 2 operatives and their tools can work safely and comfortably at height.

STANDARD FEATURES

The Snorkel S2755BE has a working height of 8.50m

35% gradeability, meaning it can operate on rough terrain

An impressive platform capacity of 420kg

Versatile Use

The Snorkel S2755BE can be operated on both electric and diesel power making it suitable for indoor and outdoor use.

Suitable on Rough Terrain

Automatic self-leveling outriggers and non-marking terrain tyres enable it to be used on rough, uneven ground.

Versatile Use

The Snorkel S2755BE has a spacious 1.4m x 2.73m platform with additional 1.20m deck extension.
