Dingli JCPT1418RT

ENQUIRE NOW Call hire desk 0800 085 3709

Specifications

Max. Working Height (A)

14.30m

Max. Platform Height (B)

12.30m

Overall Length (C)

3.84m

Overall Width (D)

1.76m

Overall Height (Rails Up) (E)

2.74m

Overall Height (Rails Down) (F)

1.97m

Platform Size (Length x Width)

2.88m x 1.52m

Platform Extension Size (G)

1.43m

Maximum Drive Height

12.30m

Wheelbase (H)

2.29m

Turning Radius (Inside/Outside)

2.15m/4.85m

Platform Capacity SWL

363kg

Platform Capacity SWL on Extension

136kg

Max. Occupants

3

Gradeability

40%

Travel Speed (Stowed)

5.00km/h / 3.10mph

Up/Down Speed

45/46 secs

Overall Weight

5,050kg

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Please follow all health and safety guidelines when using our products. Always wear the appropriate protective equipment and adhere to local regulations to ensure safe handling and operation.

Health & Safety downloads

Application & uses

Diesel Powered

Diesel Powered

Reliable diesel performance

4 x 4 Drive

4 x 4 Drive

All-terrain capability

Jack Legs

Jack Legs

Stability on uneven ground

Non Marking Tyres

Non Marking Tyres

Indoor and delicate surface use

Power-To-Platform

Power-To-Platform

Has power to platform

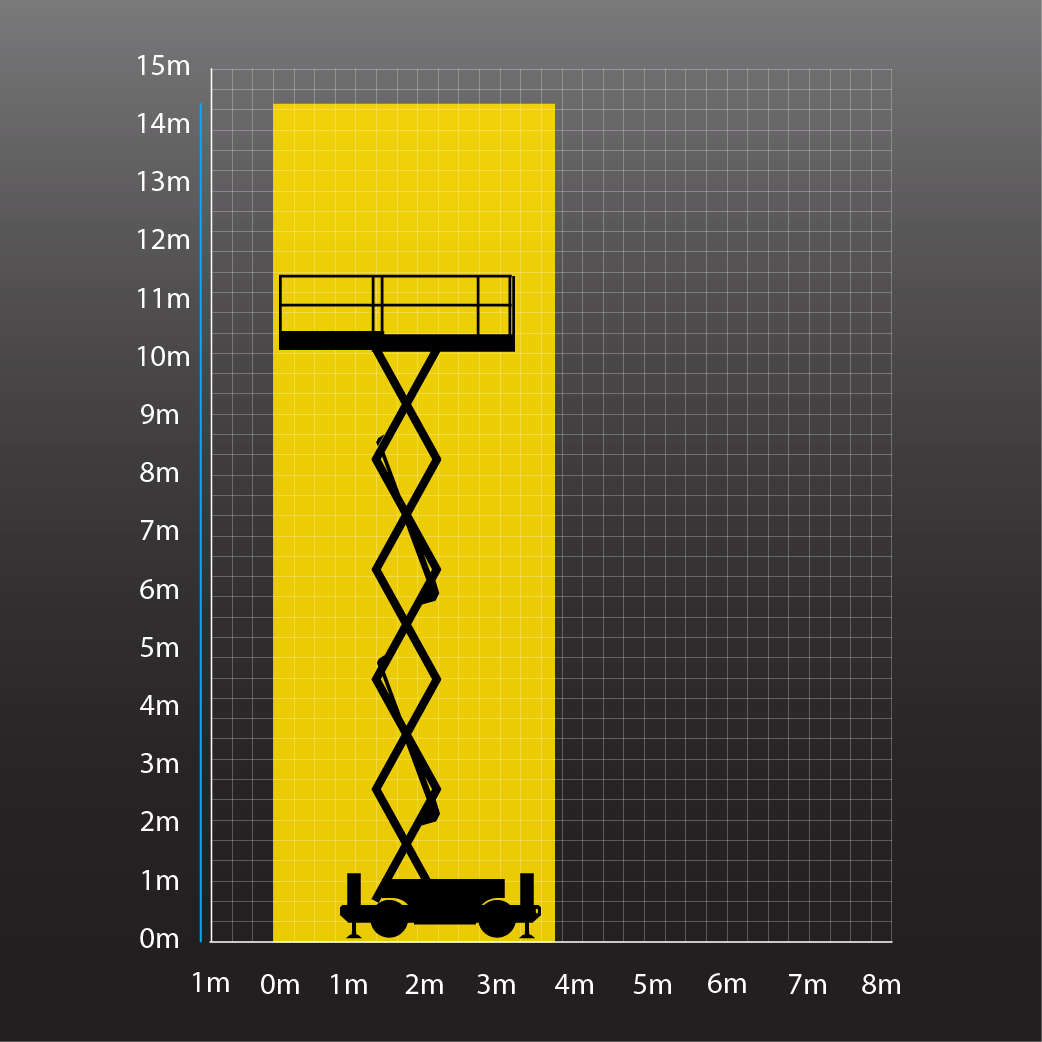

Working envelope

Working envelope

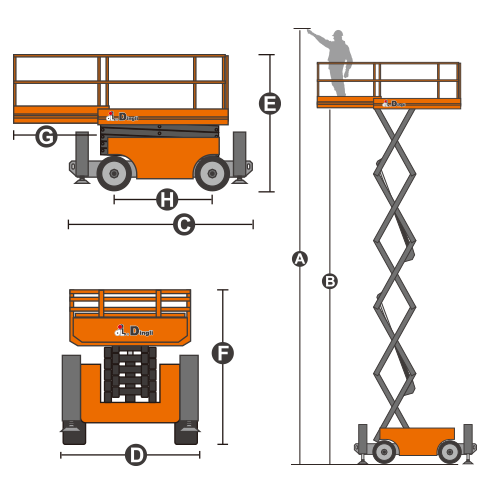

Dimension drawing

Dimension drawing

MACHINE INFORMATION

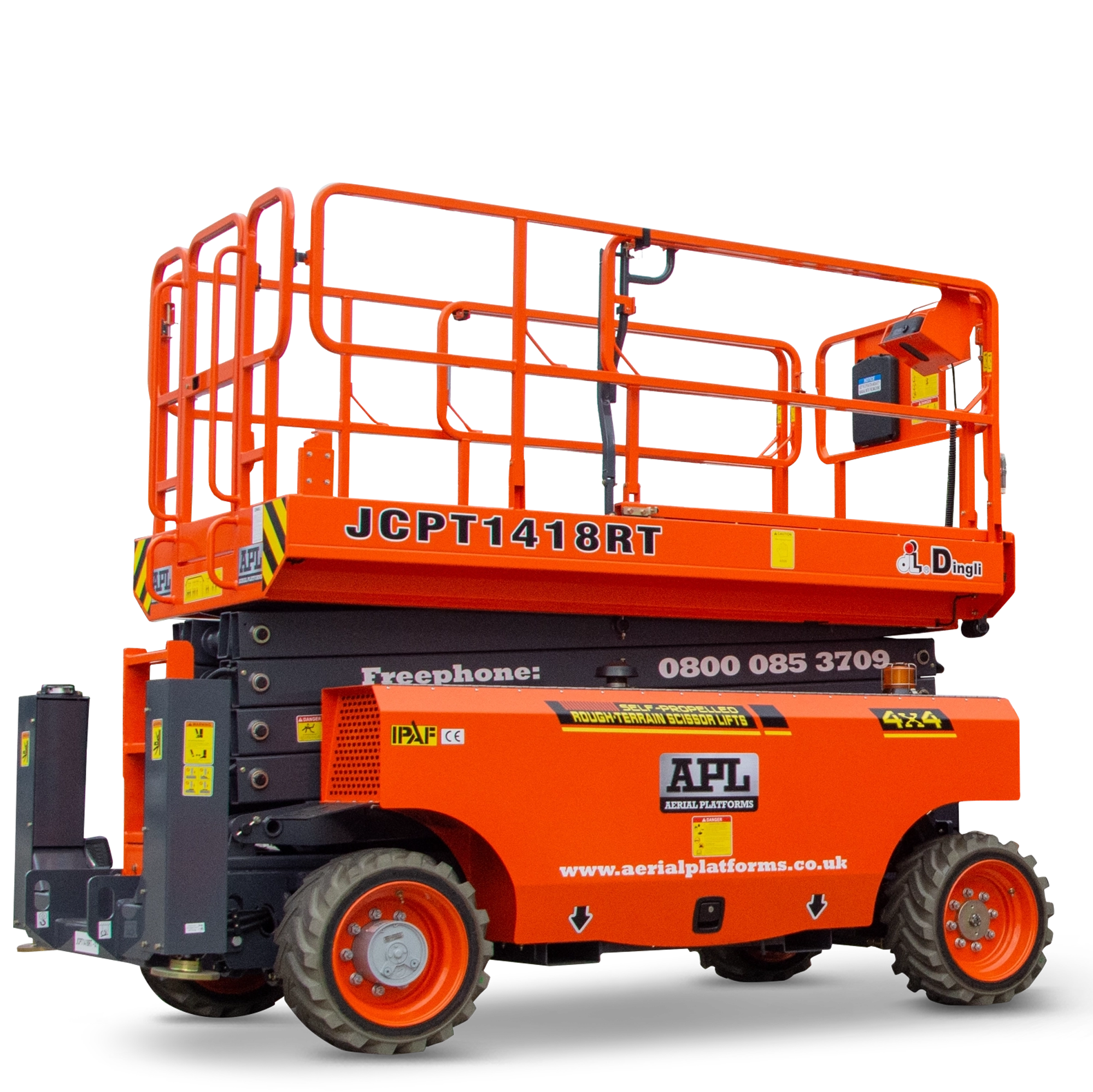

The Dingli JCPT1418RT is a reliable and versatile diesel scissor lift that offers a 14.30m working height and a generous 363kg lift capacity, enabling up to 3 people to work safely at height. Not only does this machine come equipped with 4 wheel drive and a 40% gradeability, but it also comes with non-marking tyres meaning it is capable of working both indoors and outdoors on both flat and uneven surfaces.

STANDARD FEATURES

Strong off-road ability

Large extension platform of 1.43m with a wide platform size of 1.52m

Automatic hydraulic leveling outriggers and 40% gradeability capability offering good stability on challenging terrains

Working Height

14.30m

Large platform dimensions

2.88m x 1.52m with an additional 1.43m deck extension

Working Height

Non-marking rough-terrain tyres
