Working Height (A)
15.70m
Overall Width (D)
1.25m
Platform Size
2.64m x 1.12m
Lift Capacity (SWL)
363kg
Gradeability
25%
Weight
3,390kg
Emission-free electric power
Indoor and delicate surface use

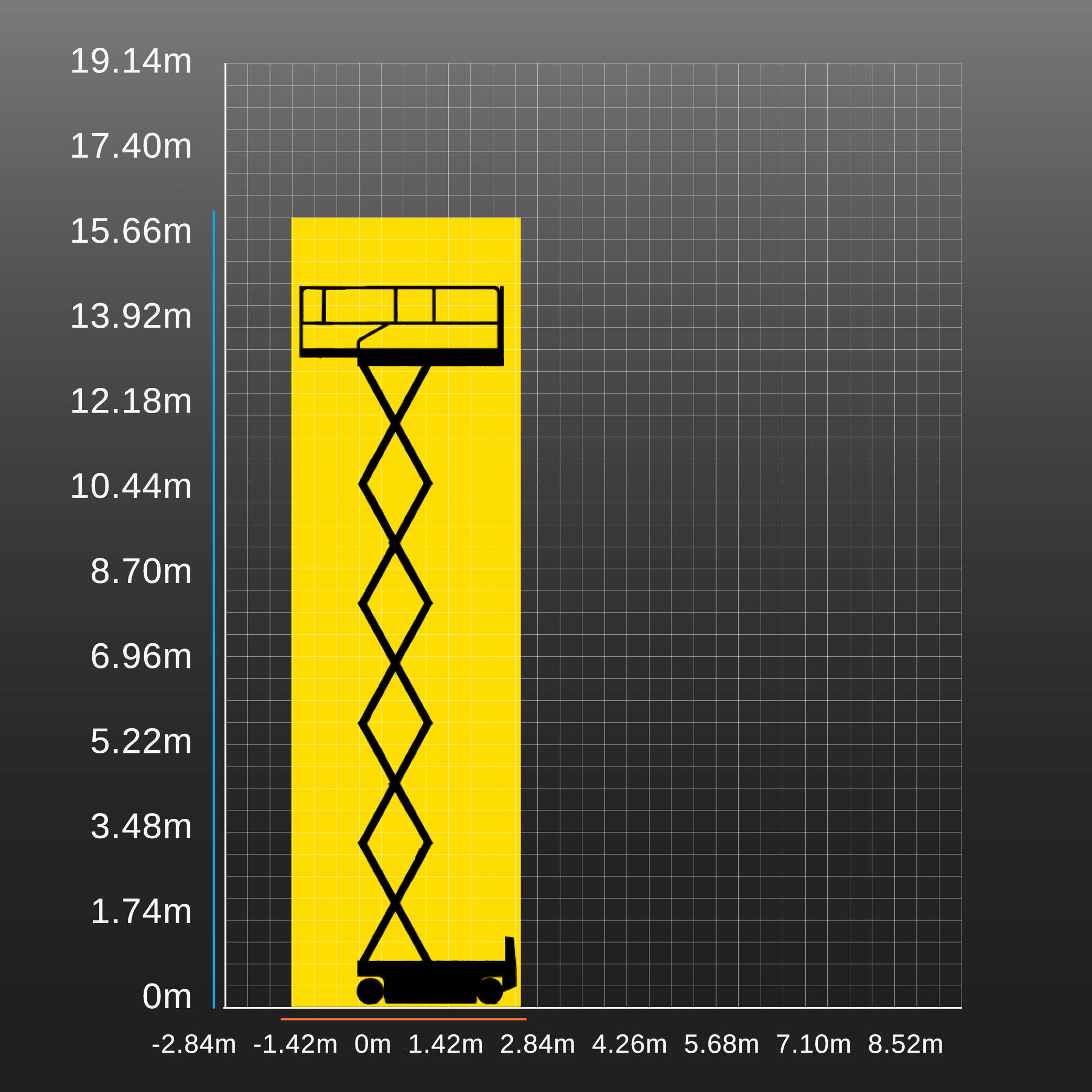

Working envelope

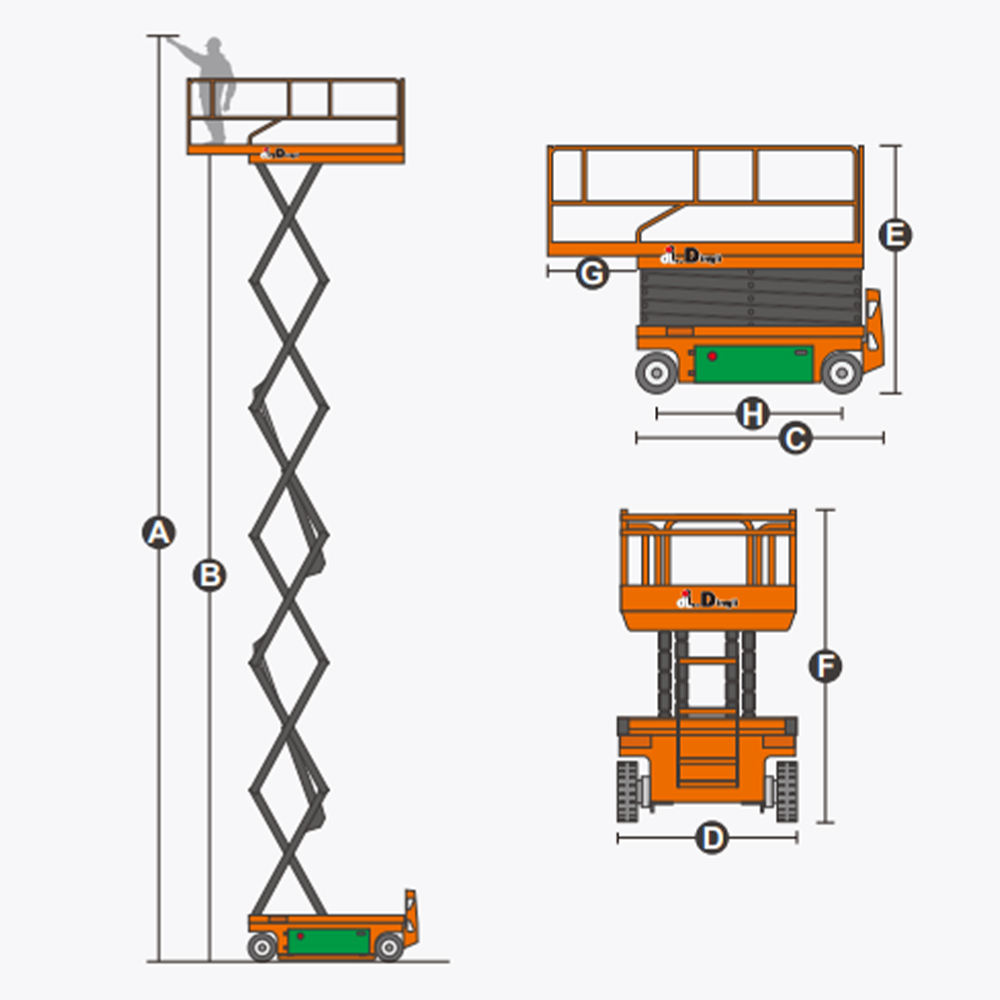

Dimension drawing
The Dingli S1612AC+ is a high-performance electric scissor lift designed for both indoor and outdoor work. It offers a maximum working height of 15.70m (13.70m platform), while weighing 3,390kg with its lithium-ion battery. The platform supports up to 363kg, and with its 0.90m extension deck, can safely carry up to 136kg. Compact in size (2.84m long by 1.25m wide), it uses non-marking tyres and has a tight turning radius of 2.65m. Powered by a 28.8V / 175Ah lithium-ion battery, it features a fully sealed AC drive and lifting system, making it energy-efficient, low maintenance, and environmentally friendly. Key systems include a gravity-down energy recovery, hydraulic oil containment, and electric-actuator steering, all contributing to operational efficiency and safety.
Platform dimensions are 2.64m by 1.12m, with a 0.90m one-way extension deck.
Safe working load (SWL) is 363kg, and the SWL when the extension is used is 136kg.
The machine can climb a 25% gradient, and its maximum working slope is 1.5° / 3° (X/Y).
Scissor angle sensor operates more reliably thanks to a load-sensing system that’s less susceptible to temperature changes and friction.
Includes both side and rear pockets to offer more flexible and efficient transport options.
A redesigned control panel features a more durable touchpad, a larger screen, and a surface that’s easier to clean.
