Electric Scissor Lift
| Working Height | 13.90m |
| Platform Height | 11.90m |
| Deck Extension | 0.90m |
| Length Stowed | 2.39m |
| Width Stowed | 1.15m |
| Height Stowed (Rails Up) | 2.60m |
| Height Stowed (Rails Down) | 1.98m |
| Platform Length | 2.25m |
| Platform Width | 1.15m |
| Platform Height | 1.10m |
| Lift Capacity | 320kg |
| Maximum No. Of Persons | 2 |
| Ground Clearance | 0.10m |
| Wheelbase | 1.85m |
| Turning Radius (Inside) | 0m |
| Turning Radius (Outside) | 2.35m |
| Gradeability | 25% |
| Weight | 2,996kg |

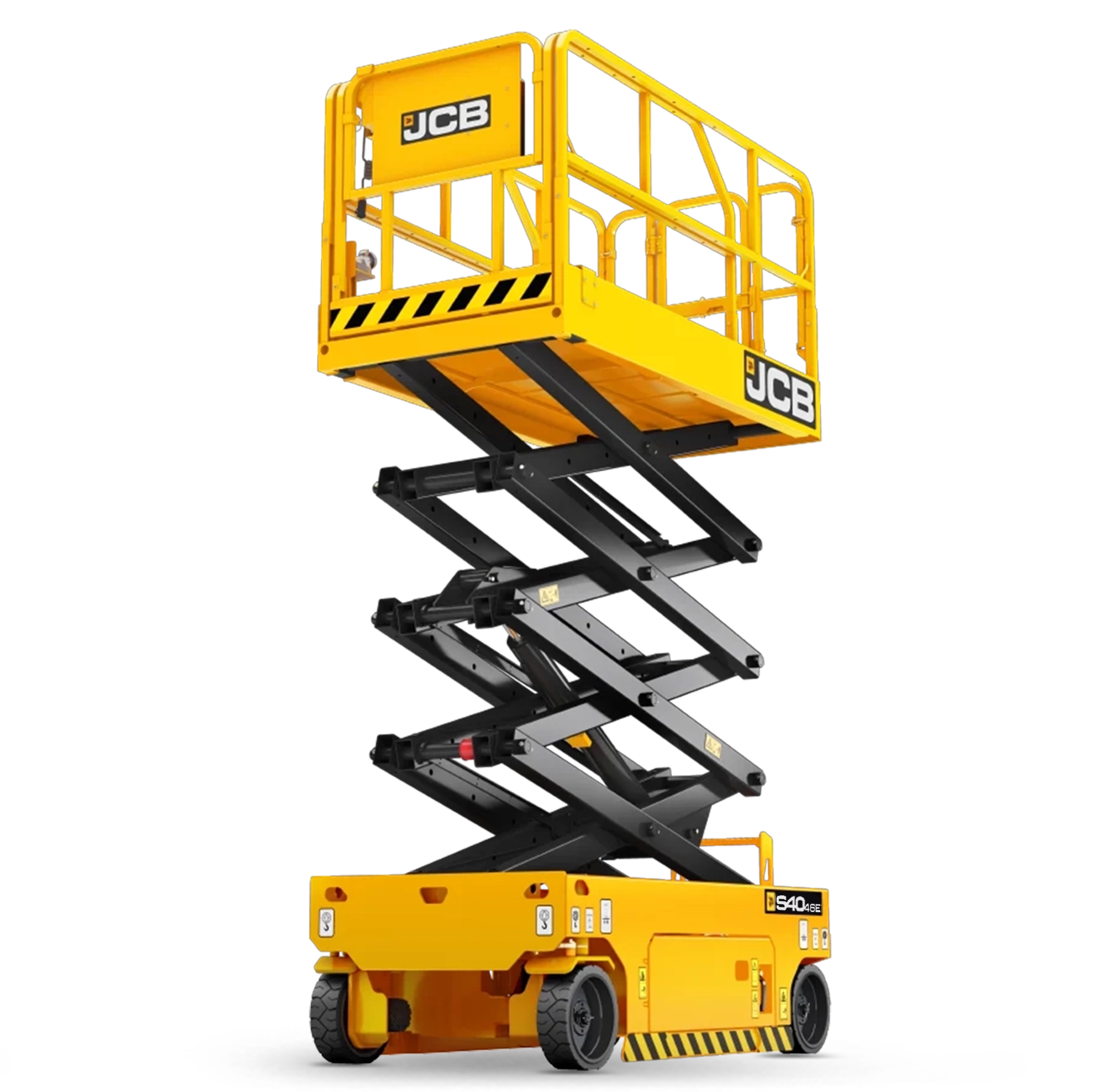

The JCB S4046E is an electric scissor lift designed to elevate two operators and their equipment to a maximum working height of 13.90 meters, with a platform capacity of 320 kilograms. The platform measures 2.25 meters in length and 1.15 meters in width, featuring a 0.90-meter roller-supported deck extension for enhanced reach. Its compact dimensions—2.39 meters in length, 1.15 meters in width, and a stowed height of 2.60 meters (reducible to 1.98 meters with rails folded)—facilitate maneuverability in confined spaces. The S4046E boasts a zero inside turning radius and an outside turning radius of 2.35 meters, with a gradeability of 25%. Weighing 2,996 kilograms, it is equipped with non-marking tires and offers power-to-platform functionality. Additional features include a unique gate handle for safe access and egress, as well as easily collapsible guardrails for increased versatility.
Indoor rated electric scissor machine and comes with standard fit non-marking tyres, making it ideal for work on sensitive flooring
the S4046E is equipped with power to platform as standard and deck extension that is easy to use, even at the maximum platform height of 11.90m
Unique gate handle for easy and safe access and egress.
Easily collapsible guard rails combined with compact dimensions of 1.25m x 2.76m making for an easily manoeuvrable machine
Roller supported 0.90m deck extension for effortless extension even at height
Offering an ergonomic controller cradle for both left and right hand use, and an automotive style foot pedal for deck extension designed to get the operator to complete the job in the shortest possible time.
