Electric Scissor Lift

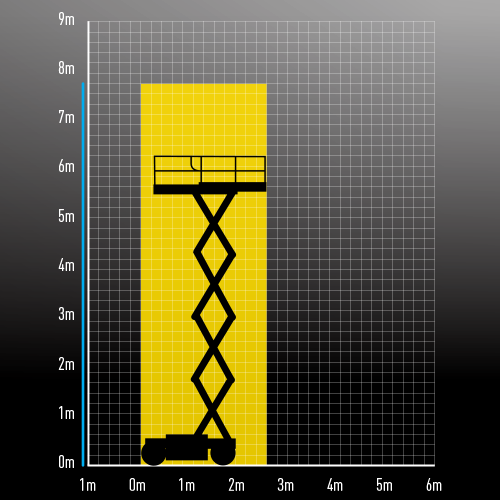

| Working Height | 7.72m |
| Platform Height | 5.72m |

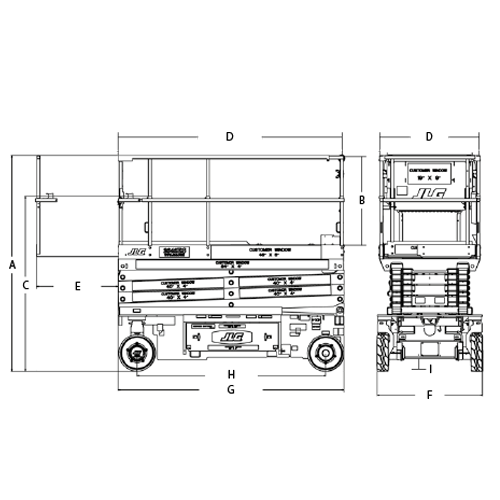

| A. Stowed Height | 2.02m |
| B. Platform Railing Height | 1.10m |
| C. Stowed Height (Rails Folded) | 1.59m |
| D. Platform Size (W x L) | 0.76m x 1.87m |
| E. Deck Extension | 0.90m |
| F. Overall Width | 0.76m |
| G. Overall Length | 1.87m |
| H. Wheelbase | 1.60m |
| I. Ground Clearance | 0.09m |
| Lift Capacity | 230kg |
| Capacity On Deck Extension | 120kg |
| Maximum Drive Height | Full Height |
| Turning Radius (Inside) | 0m |
| Turning Radius (Outside) | 1.75m |
| Gradeability | 25% |
| Weight | 1,550kg |
The JLG 1930ES is a compact electric scissor lift designed for efficient operation in confined spaces. It offers a maximum working height of 7.72 meters and supports a platform capacity of 230 kilograms, accommodating up to two occupants. The platform measures 1.87 meters in length and 0.76 meters in width, featuring a 0.90-meter roll-out deck extension for enhanced reach. With an overall width of 0.76 meters and a stowed height of 2.02 meters (reducible to 1.59 meters with folded rails), the 1930ES easily navigates standard doorways and tight areas. Its zero inside turning radius and 25% gradeability enhance maneuverability on various terrains. Equipped with non-marking solid tires, the lift is suitable for indoor use on sensitive flooring. Weighing 1,550 kilograms, the 1930ES is drivable at full height, ensuring productivity during tasks.
Max working height of 7.72m suitable for a number of external applications
Benefit from a lift capacity of 230kg ideal for a range of scenarios
Non-marking solid tyres perfect for work on sensitive flooring
Electric power for zero emissions and near-silent running indoors
Boost efficiency with direct electric drive
Get into more places with compact dimensions and precise control system
