Electric Scissor Lift

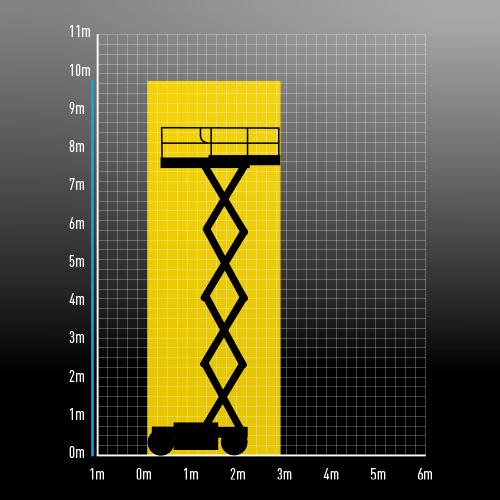

| Working Height | 9.77m |
| Platform Height | 7.77m |

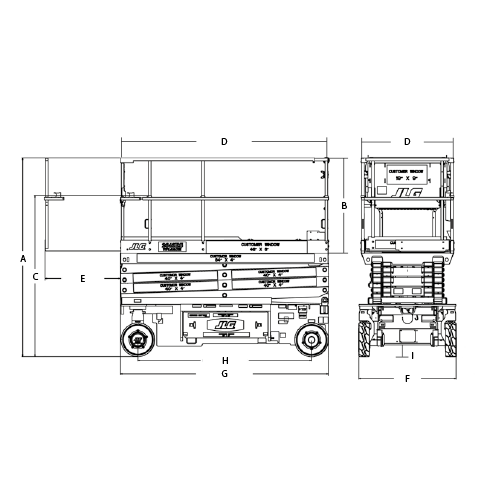

| A. Stowed Height | 2.33m |
| B. Platform Railing Height | 1.10m |
| C. Stowed Height (Rails Folded) | 1.98m |
| D. Platform Size (W x L) | 0.76m x 2.30m |
| E. Deck Extension | 0.90m |
| F. Overall Width | 0.81m |
| G. Overall Length | 2.30m |
| H. Wheelbase | 1.88m |
| I. Ground Clearance | 0.09m |
| Lift Capacity | 230kg |
| Maximum Drive Height | Full Height |
| Gradeability | 25% |
| Turning Radius (Inside) | 0m |
| Turning Radius (Outside) | 2.06m |
| Weight | 2,135kg |

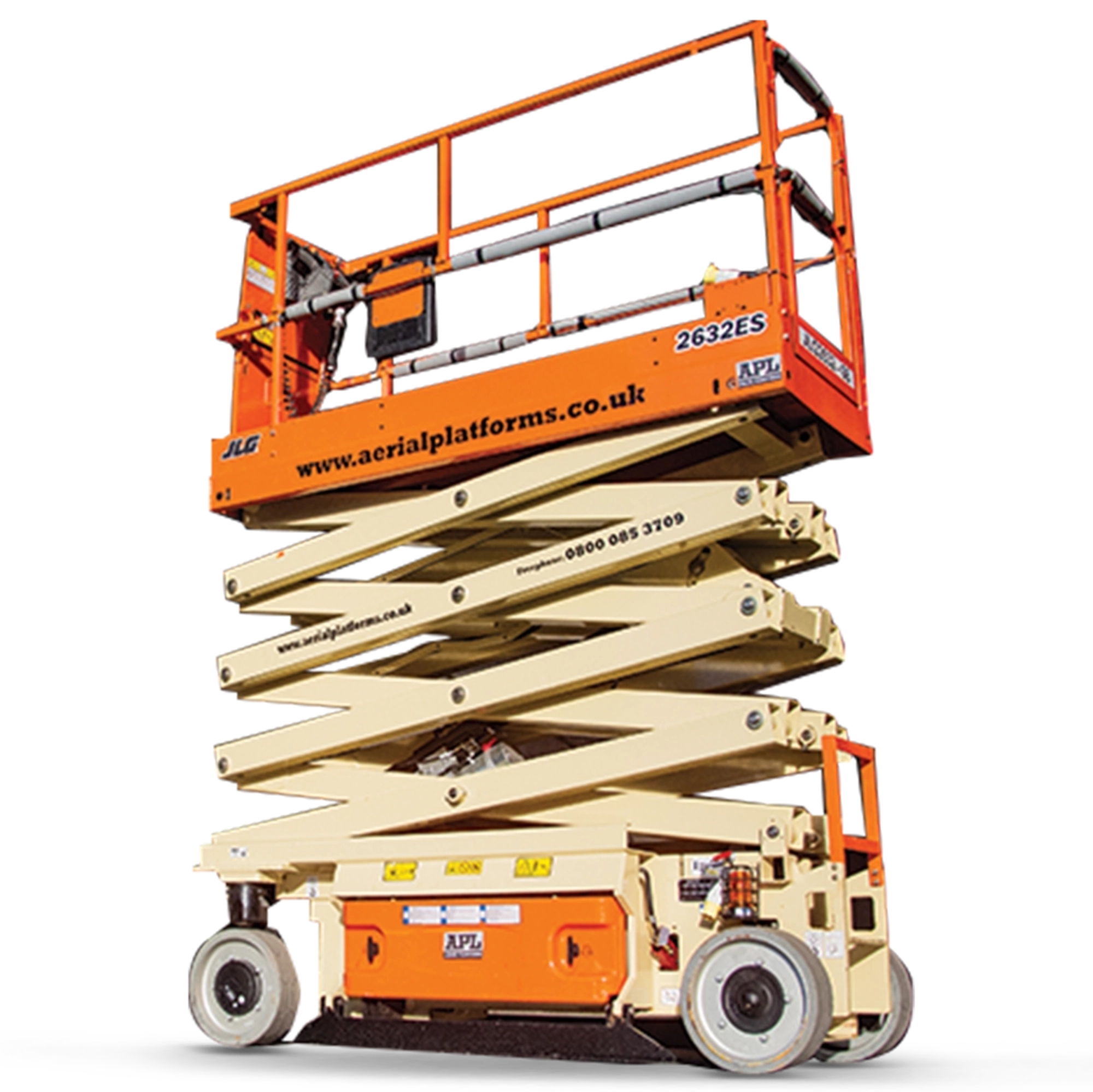

The JLG 2632ES is a compact electric scissor lift designed for efficient operation in confined spaces. It offers a maximum working height of 9.77 meters and supports a platform capacity of 230 kilograms, accommodating up to two occupants. The platform measures 2.3 meters in length and 0.76 meters in width, featuring a 0.9-meter extension deck for enhanced reach. With an overall width of 0.81 meters and a stowed height of 2.33 meters (reducible to 1.98 meters with guardrails folded), the 2632ES easily navigates standard doorways and tight areas. Its zero inside turning radius and 25% gradeability enhance maneuverability on various terrains. Equipped with non-marking solid tires, the lift is suitable for indoor use on sensitive flooring. Weighing 2,135 kilograms, the 2632ES is drivable at full height, ensuring productivity during tasks.
Max working height of 9.77m suitable for a number of internal applications
Benefit from a lift capacity of 230kg ideal for a range of scenarios
Non-marking solid tyres perfect for work on sensitive flooring
Electric power for zero emissions and near-silent running indoors
Boost efficiency with direct electric drive
Get into more places with compact dimensions and precise control system
