Has power to platform

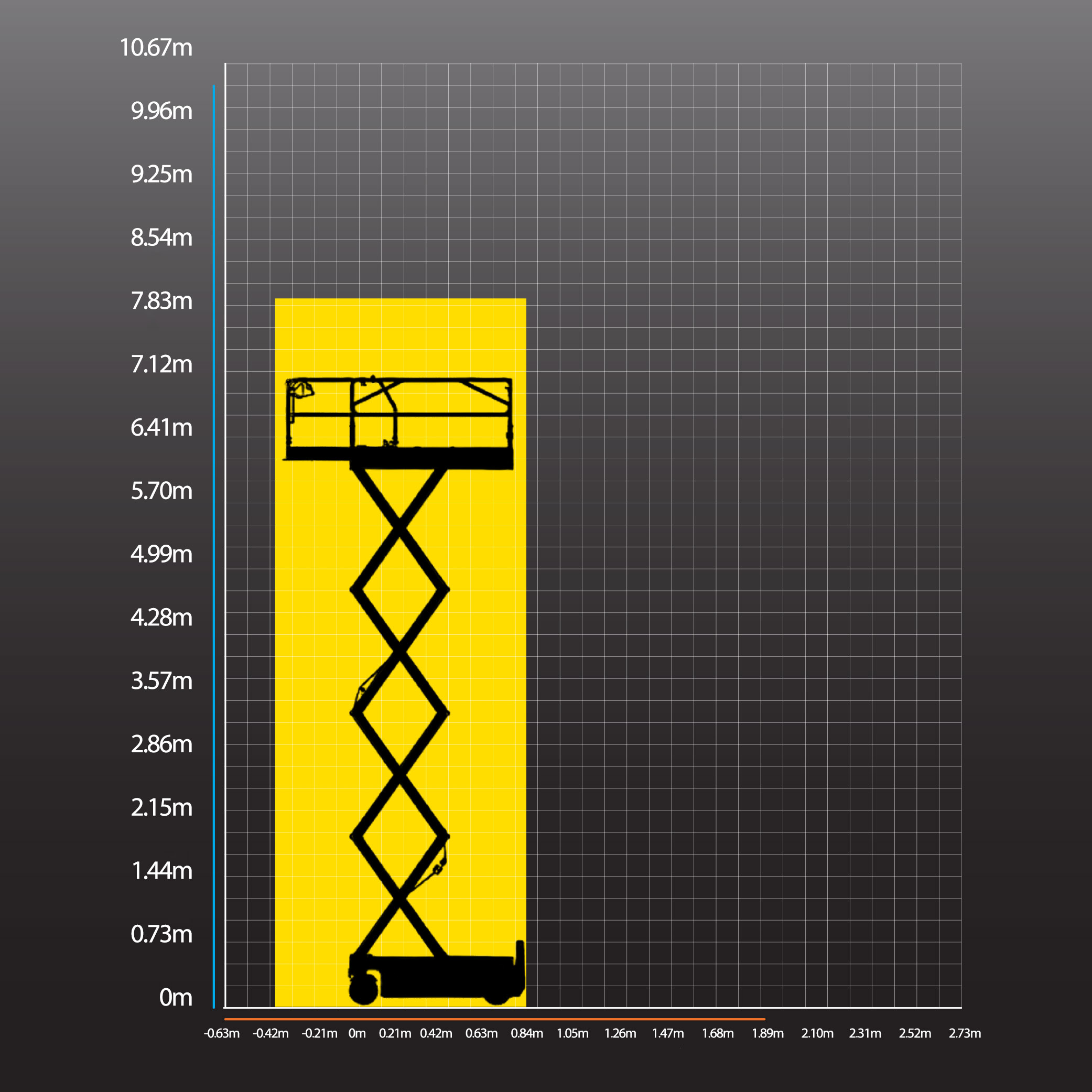

Working envelope

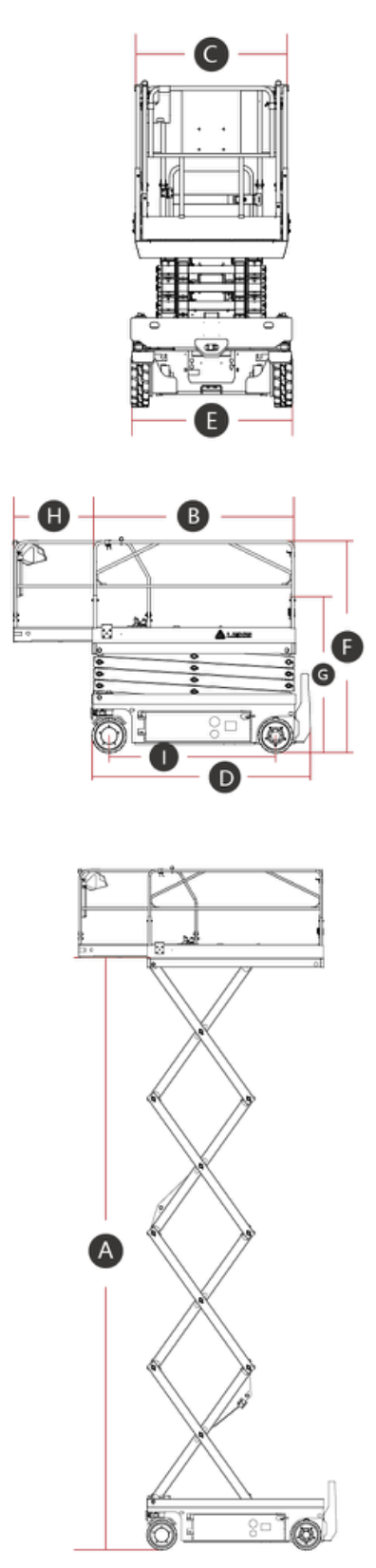

Dimension drawing

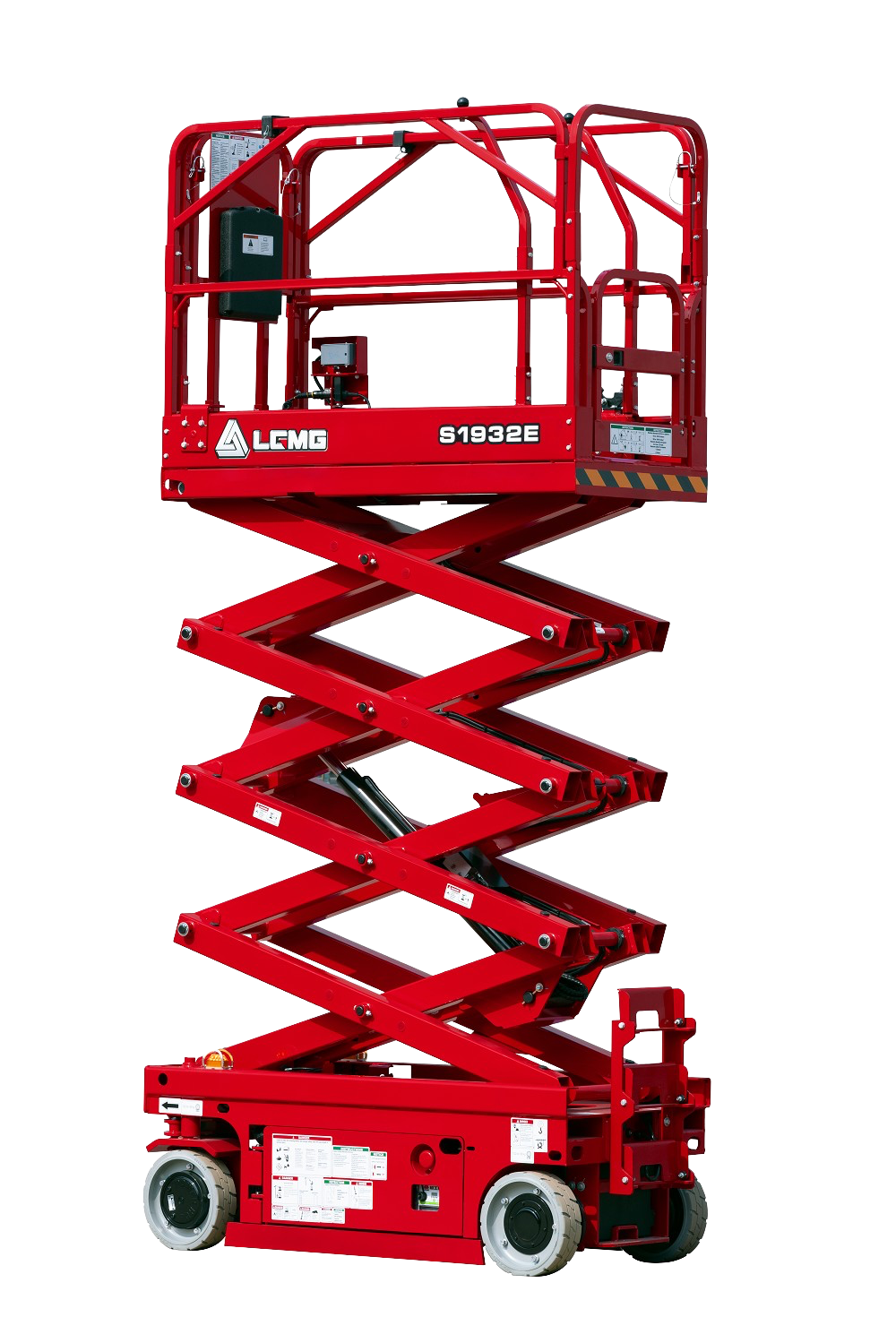

The LGMG S1932E electric scissor lift is a compact, efficient, and reliable aerial work platform designed for both indoor and outdoor applications. With a maximum working height of 7.8 meters and a platform capacity of 230 kg, it provides a safe and stable working environment. Its maintenance-free AC drive motors, IP67-rated electrical system, and extended platform for greater reach ensure high performance with minimal upkeep. The platform measures 1.67 meters in length and 0.7 meters in width, featuring a 0.6-meter extension deck for additional accessibility. With an overall width of 0.82 meters and a stowed height of 2.16 meters (reducible to 1.5 meters with guardrails down), the S1932E is designed for easy navigation through standard doorways and compact spaces. Its 1.55m inside turning radius and 25% gradeability enhance maneuverability, while the machine's robust construction ensures durability. Additional features include an intuitive lower control panel, proportional lift and drive controls for smooth operation, and an advanced safety system with automatic pothole protection and tilt alarms.
The LGMG LG1932E can support a maximum load of 230 kilograms, making it ideal for carrying both workers and tools.
The platform extends 0.96 meters with an extension capacity of 120kg.
The maximum working height is 7.8 meters, making it suitable for a variety of indoor tasks.
With an IP67-rated electrical system, the S1932E is protected against dust and water ingress, making it suitable for challenging environments.
The LGMG LG1932E features a large, easily accessible lower control panel, ensuring intuitive operation and quick troubleshooting.
The 0.9-meter (3-foot) platform extension allows workers to reach over obstacles and access hard-to-reach areas with ease.

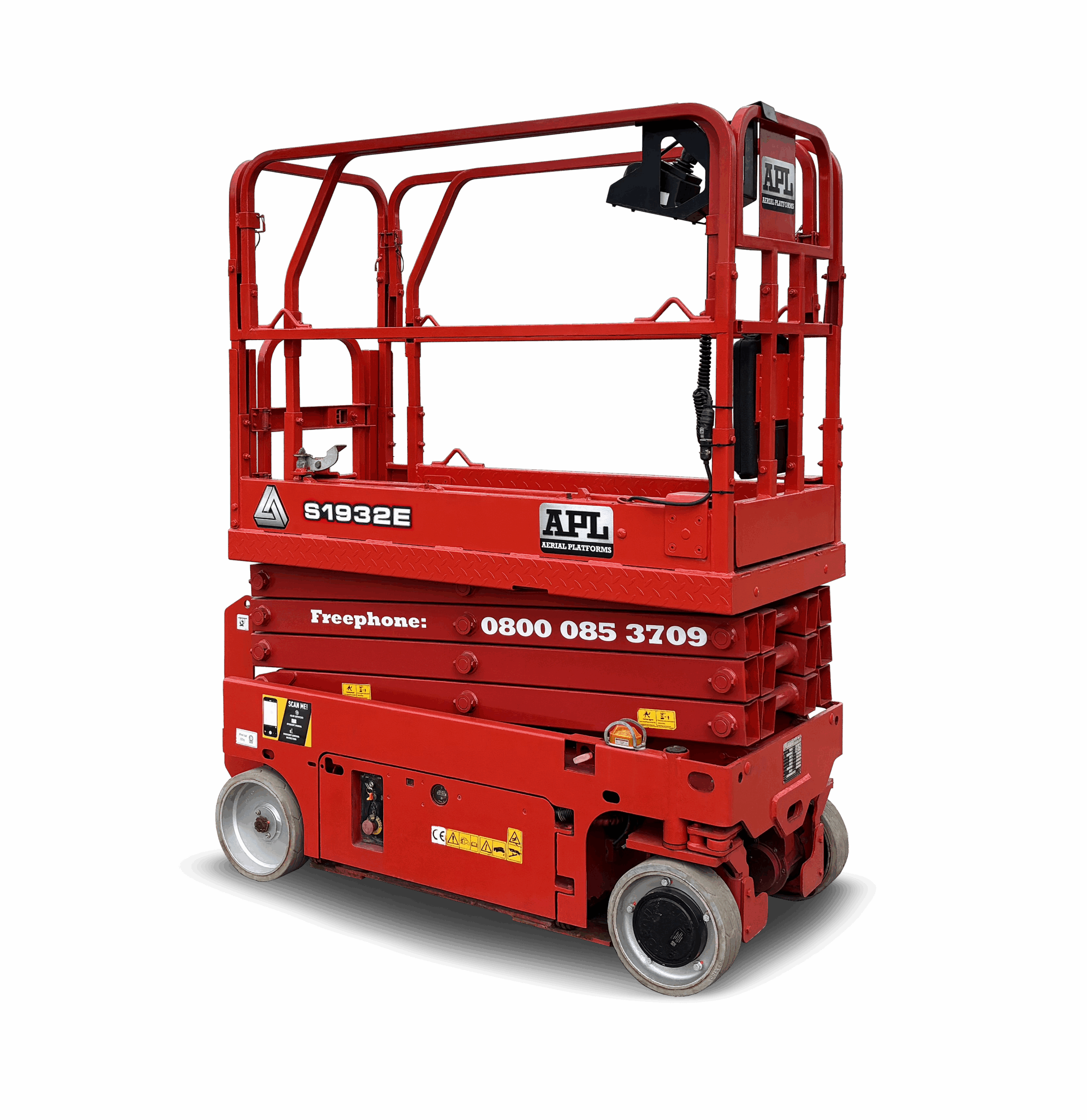

HIRE LGMG LG1932E WITH AERIAL PLATFORMS
We’re recognised as one of the leading privately owned single source MEWP rental companies in the UK, dedicated to making powered access simple.
Our professional team are ready and waiting for you. If you have any questions or thoughts, we’re here to answer them!
