Skyjack SJ3219

Specifications

A. Working Height

7.62m

B. Raised Platform Height

5.79m

C. Lowered Platform Height

0.99m

D. Overall Width

0.81m

E. Overall Length

1.78m

F. Stowed Height (Rails Up)

1.99m

G. Stowed Height (Rails Down)

1.64m

H. Platform Width (Inside Dimension)

0.66m

I. Platform Length (Inside Dimension)

1.63m

Extension Deck

0.91m

Maximum Drive Height

5.79m

Ground Clearance (Stowed)

6.03cm

Ground Clearance (Raised)

1.78cm

Wheelbase

1.40m

Gradeability

30%

Turning Radius (Inside)

0m

Turning Radius (Outside)

1.68m

Lift Capacity

249kg

Maximum No. of Persons

2

Wind Rating

28mph (12.5m/s)

Weight

1,170kg

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Please follow all health and safety guidelines when using our products. Always wear the appropriate protective equipment and adhere to local regulations to ensure safe handling and operation.

Health & Safety downloads

Application & uses

Battery Powered

Battery Powered

Emission-free electric power

Non Marking Tyres

Non Marking Tyres

Indoor and delicate surface use

Power-To-Platform

Power-To-Platform

Has power to platform

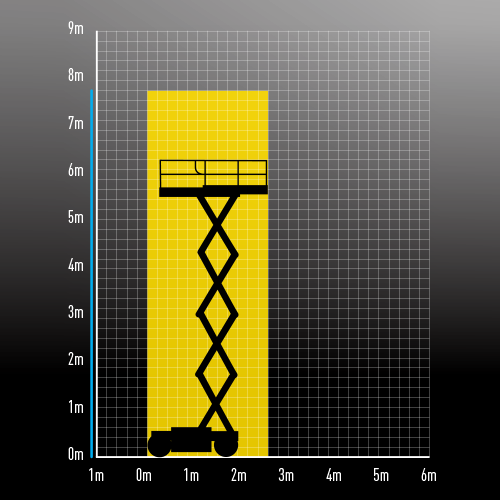

Working envelope

Working envelope

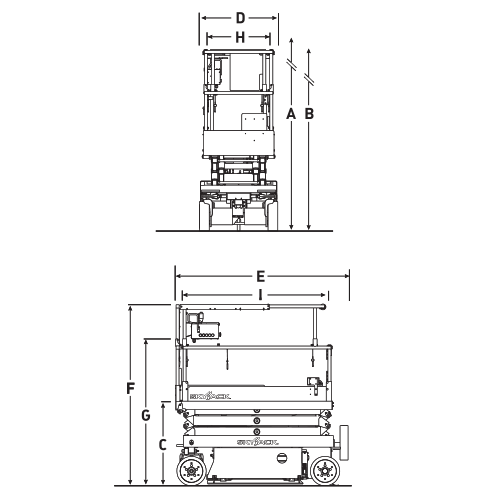

Dimension drawing

Dimension drawing

MACHINE INFORMATION

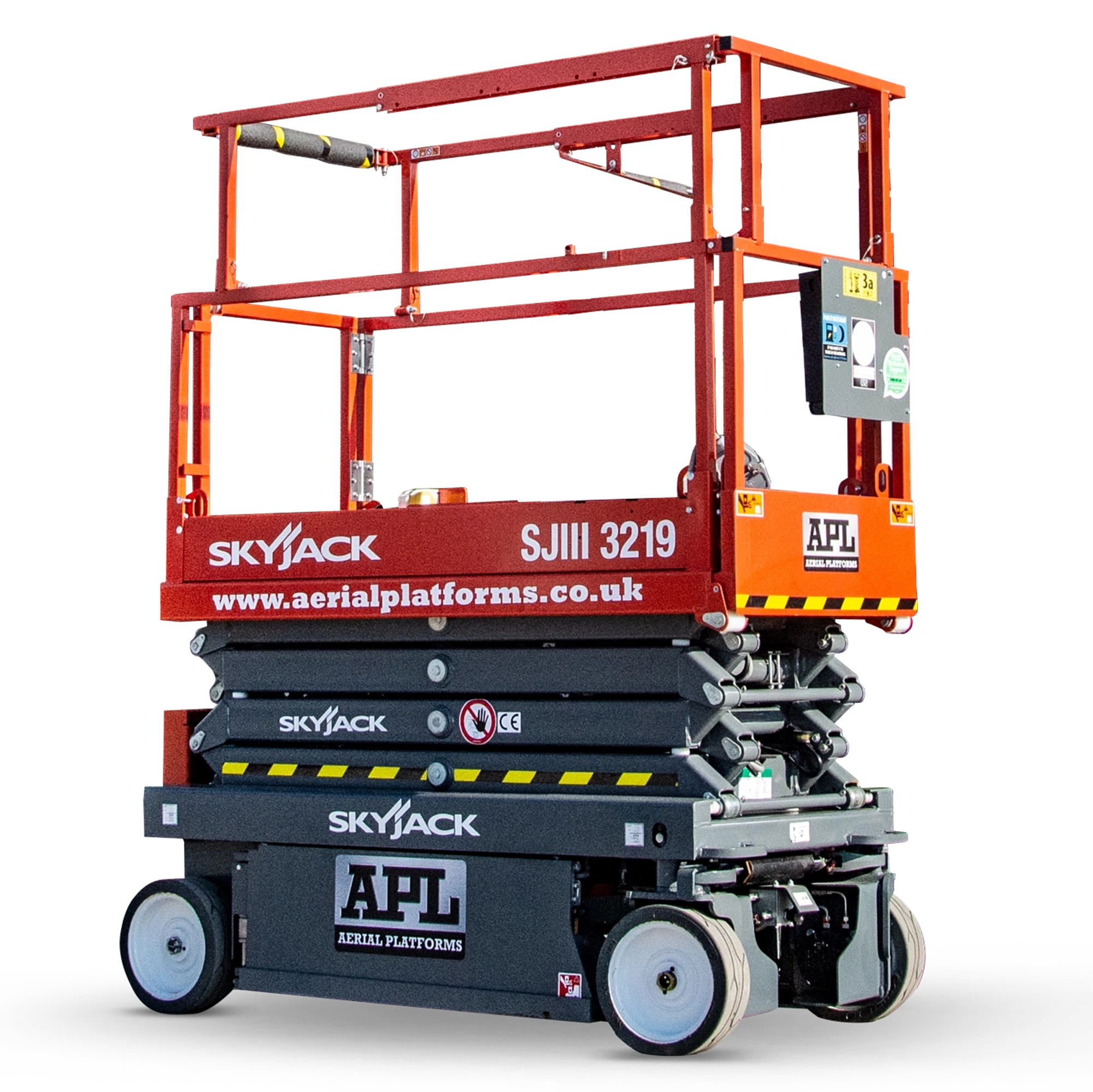

​The Skyjack SJ3219 is a compact, battery-powered electric scissor lift designed for versatile indoor and outdoor applications. It offers a maximum working height of 7.62 meters and supports a platform capacity of 249 kilograms, accommodating up to two occupants. The platform measures 1.63 meters in length and 0.66 meters in width, with a 0.91-meter roll-out extension deck, providing ample workspace. With an overall width of 0.81 meters and a stowed height of 1.99 meters (rails up), the SJ3219 is capable of maneuvering through standard doorways and confined spaces. Its zero inside turning radius and 30% gradeability enhance maneuverability on various terrains. The lift is equipped with solid, non-marking tires suitable for indoor use and features a pothole protection system for added safety. Weighing 1,170 kilograms, the SJ3219 is drivable at full height, ensuring efficiency during tasks.

STANDARD FEATURES

Drivable at full height of 7.62m

Pothole Protection System

Roll Out Extension Deck of 0.91m

Working Height

Max working height of 7.62m suitable for a number of internal applications

Lift Capacity

Benefit from a lift capacity of 249kg ideal for 2 persons

Working Height

Solid Rubber, Non-Marking Tyres
