Diesel Boom Lift
Working Height | 48.15m |
Platform Height | 46.15m |
Horizontal Outreach | 23.55m |
Up and Over Height | 18.40m |
Swing (Continuous) | 360° |
Lift Capacity (Restricted) | 450kg |
Lift Capacity (Unrestricted) | 270kg |
Platform Rotator | 180° |
Jib Length | 2.44m |
Jib Range of Articulation | 130° (+75°/-55°) |
Jib Horizontal Rotation | 125° (55° right, 70° left) |
A. Platform Size | 0.91m x 2.44m |
B1. Overall Width (Axles Retracted) | 2.50m |
B2. Overall Width (Axles Extended) | 5.00m |
C. Tailswing | 0.70m |
D. Height Stowed | 3.10m |
E1. Length Stowed | 15.10m |
E2. Length Stowed (Transport Position) | 12.10m |
F. Wheelbase (Axles Extended) | 4.60m |
G. Ground Clearance | 0.30m |
Gradeability | 40% |
Inside Turning Radius (Retracted) | 7.10m |
Inside Turning Radius (Extended) | 2.30m |
Outside Turning Radius (Retracted) | 9.50m |
Outside Turning Radius (Extended) | 6.60m |
Weight | 26,027kg |

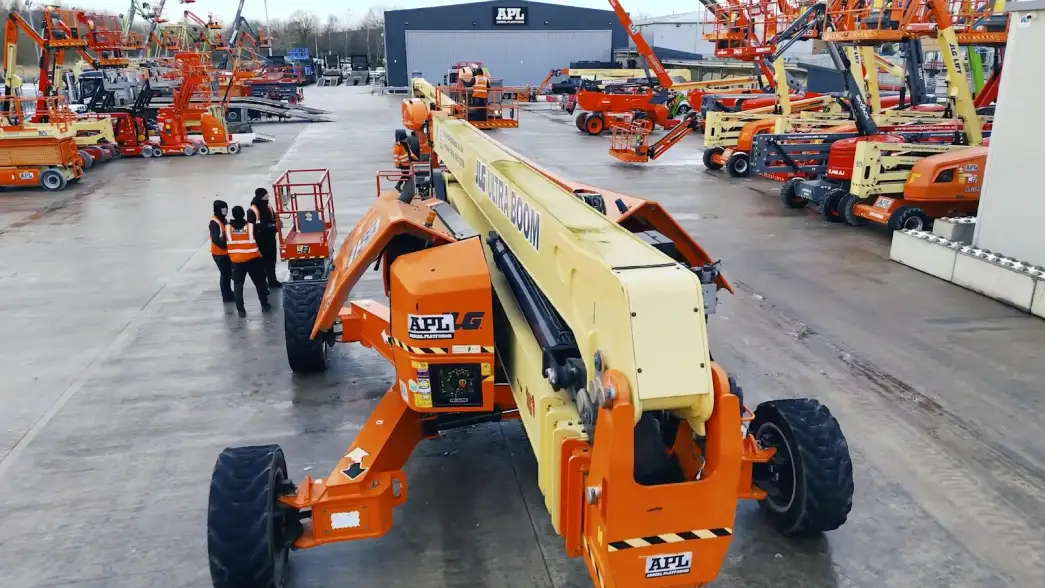

The JLG 1500AJP is a diesel-powered articulating boom lift designed for tasks requiring extensive reach and height. It offers a working height of 48.15 meters and a horizontal outreach of 23.55 meters. The platform has a dual capacity rating: 270 kilograms unrestricted and 450 kilograms restricted. A 2.44-meter jib with a 130-degree articulation range enhances maneuverability. The machine's width is 2.5 meters with axles retracted and 5 meters extended. Features include 360-degree continuous swing, 180-degree hydraulic platform rotation, and a QuickStick™ system for rapid elevation changes. Automatic axle deployment and full-height drive capability improve efficiency. The 1500AJP is equipped with the SkyGuard™ system for operator safety and an LCD display for real-time operational data.

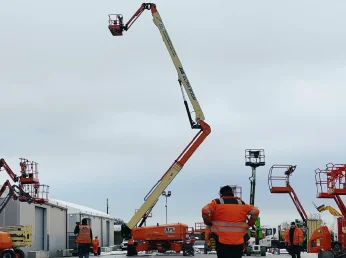

World's largest working envelope with high capacity throughout
JLG QuickStickTM capability allows for full height to ground in ~2 minutes
Full height drive capability
Providing largest working outreach in the industry while class-leading capacity allows for more materials to the work area. Quickstik enabled boom operation means operators spend more time working and less time positioning
Automatic axle deployment allows for set-up within 1 minute Minimal work uninterruption due to driveability at full height
More stable operation due to wide axle foot print. LCD display in platform keeps operator fully informed on location in work envelope. Advanced hydraulics and cylinder dampening provides for smooth ride and deployment functions. Equipped with JLG SkyGuard(TM) protecting the operator control panel
