Diesel Boom Lift
| Max. Working Height | 21.58m |
| Max. Platform Height | 19.58m |
| Horizontal Outreach | 12.37m |
| Below Ground Reach | 4m |

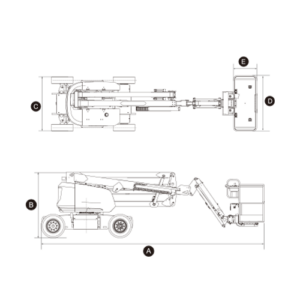

| Platform Length (D) | 2.44m |
| Platform Width (E) | 0.90m |
| Platform Capacity | 260/350kg |
| Overall Length (A) | 9.42m |
| Overall Width (C) | 2.50m |
| Overall Height (B) | 2.46m |
| Wheelbase | 2.51m |
| Max. Platform Occupants (Unrestricted/Restricted) | 2/2 |
| Turntable Rotation | 360° |
| Gradeability | 45% |
| Max. Wind Speed | 12.5m/s |
| Inside Turning Radius | 1.90m |
| Outside Turning Radius | 3.90m |
| Max Slope | 4° |
| Weight | 9850kg |

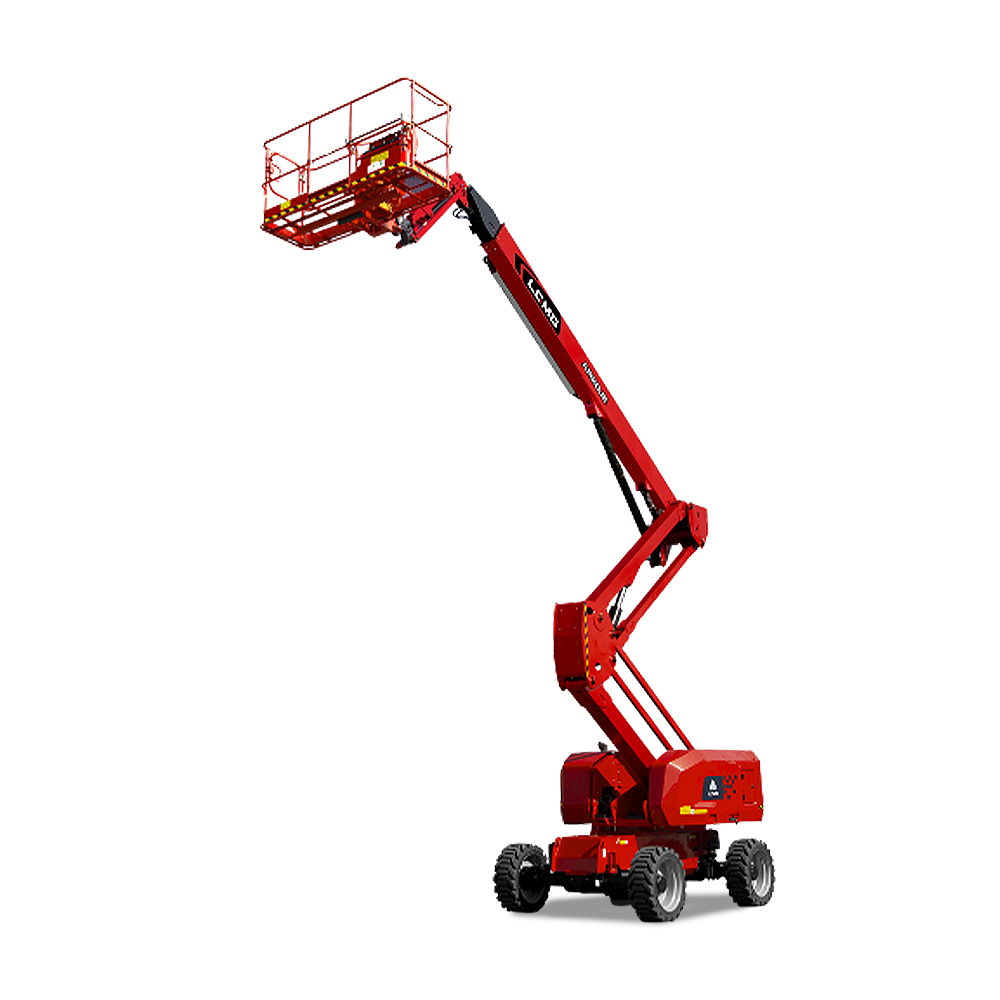

The LGMG AR20J is a rough terrain articulated diesel boom lift suitable for a range of different applications. Thanks to its articulated design, it offers a fantastic horizontal outreach of 12.37m with an equally as impressive working height of 21.58m. The rough-terrain tyres and oscillating axles that come standard on the LGMG AR20J deliver fantastic gradeability and performance on the most challenging terrains. Its large platform dimensions of 2.44m x 0.90m not only allows 2 occupants and their tools to work together comfortably at height, but also reduces the number of times the platform has to be repositioned. This, paired with the machine's 360° continuous turntable rotation make it a very versatile machine for construction projects of all shapes and sizes.
Oscillating axels and four-wheel drive delivers better gradeability on rough terrain.
Proportional control ensures smooth driving, precise positioning and comfortable operation.
Continuous 360° turntable rotation expands the operational area and makes operations more convenient.
The LGMG AR20J is capable of reaching a max. working height of 21.58m, max. horizontal outreach of 12.37m and a below ground reach of 4m.
Max. SWL of 260kg (unrestricted) and 350kg (restricted)
45% gradeability and oscillating axles mean this machine is capable of driving on extremely rough terrain.
