LGMG T22J

Specifications

Max. Working Height

23.80m

Max. Platform Height

21.80m

Horizontal Outreach

17.50m

Below Ground Reach

2.30m

Platform Length

2.44m

Platform Width

0.91m

Platform Capacity

300/450kg

Stowed Length (A)

10.60m

Overall Width (B)

2.49m

Stowed Height (C)

2.79m

Wheelbase (D)

2.51m

Max. Platform Occupants (Unrestricted/Restricted)

2/3

Turntable Rotation

360°

Turntable Tailswing

1.20m

Gradeability

45%

Max. Wind Speed

12.5m/s

Inside Turning Radius

2.50m

Outside Turning Radius

5.50m

Max Slope

4.5/4.5°

Weight

12,300kg

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Please follow all health and safety guidelines when using our products. Always wear the appropriate protective equipment and adhere to local regulations to ensure safe handling and operation.

Health & Safety downloads

Application & uses

Diesel Powered

Diesel Powered

Reliable diesel performance

4 x 4 Drive

4 x 4 Drive

All-terrain capability

Power-To-Platform

Power-To-Platform

Has power to platform

Basket Rotation

Basket Rotation

Rotating platform for flexibility

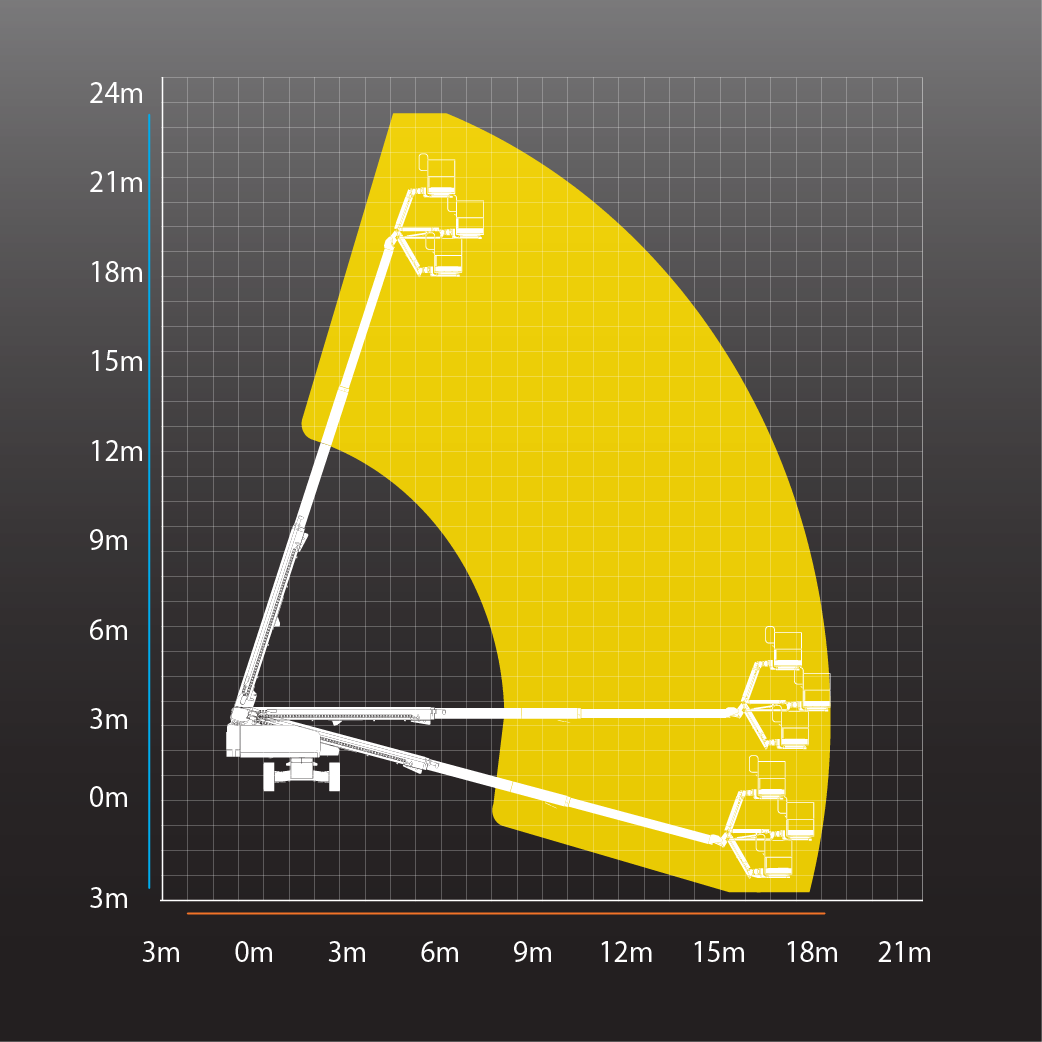

Working envelope

Working envelope

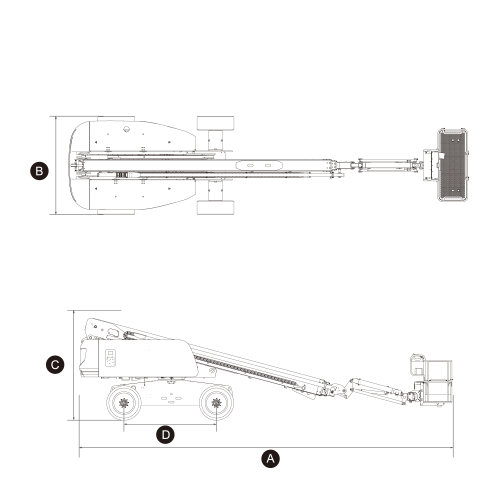

Dimension drawing

Dimension drawing

MACHINE INFORMATION

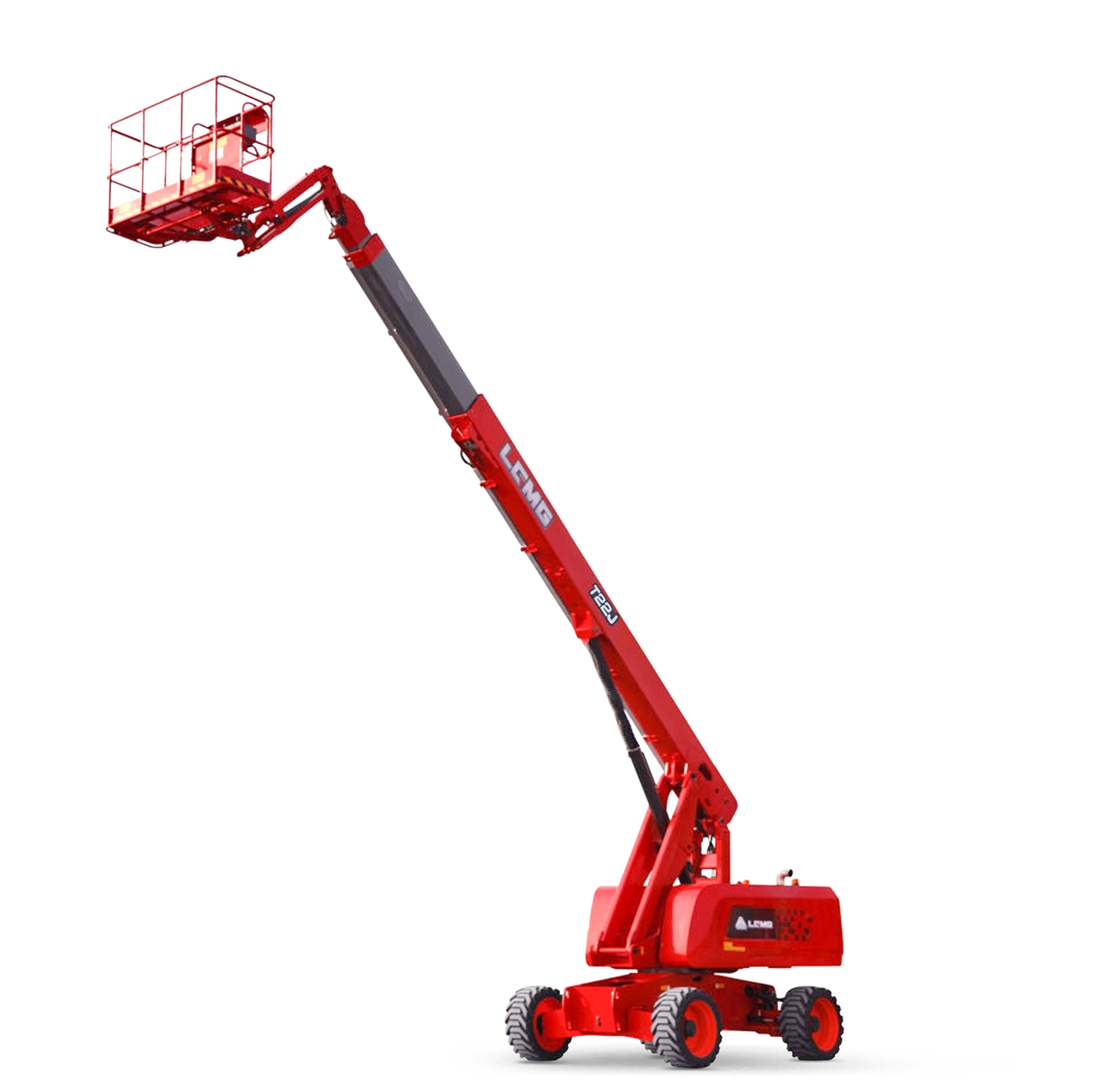

The LGMG T22J is a robust and reliable semi-articulated telescopic boom lift that has been specifically designed with a bigger platform and increased safe working load in mind. Its 23.80m working height and impressive 17.50m horizontal outreach, paired with its dual lift capacity of 300kg/450kg make it an extremely versatile choice for work in a range of different industries; from construction and maintenance, to warehousing and logistics hubs. The machine also comes equipped with four-wheel drive with oscillating axle, over tilt protection and a platform auto-levelling system allowing the machine to be used on uneven terrain. Other features include anti-entrapment protection, proportional controls and 360° turntable rotation.

STANDARD FEATURES

Dual-capacity design with 300kg unrestricted and 450kg restricted.

2.44x0.9m extra-large platform, three-door design, more convenient for material handling.

Four-wheel drive, 45% climbing ability, better passability and rough terrain ability.

Continuous 360° turntable rotation

Continuous 360° turntable rotation expends the operational area.

Large Outreach

Unmatched horizontal outreach of 17.50m

Continuous 360° turntable rotation

Impressive working envelope allows for a 2.30m below ground reach
