Manitou 280 TJ

ENQUIRE NOW Call hire desk 0800 085 3709

Specifications

Working Height

27.75m

Platform Height

25.75m

Outreach

21.45m

Jib Tilting

+70°/-70°

Basket Rotation

+90°/-90°

Turret Rotation (Continuous)

360°

Lift Capacity (3 persons)

350kg

Lift Capacity (2 persons)

240kg

Basket

2.30m x 0.90m

1. Overall Width

2.43m

2. Overall Length

11.35m

3. Overall Height

2.75m

4. Overall Length (Folded)

8.04m

5. Overall Height (Folded)

2.72m

6. Turning Radius (Inside)

2.00m

7. Turning Radius (Outside)

4.33m

8. Turning Radius (Basket)

9.75m

9. Ground Clearance

43cm

10. Wheelbase

2.80m

Gradeability

40%

Weight

16,500kg

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Please follow all health and safety guidelines when using our products. Always wear the appropriate protective equipment and adhere to local regulations to ensure safe handling and operation.

Health & Safety downloads

Application & uses

Diesel Powered

Diesel Powered

Reliable diesel performance

4 x 4 Drive

4 x 4 Drive

All-terrain capability

Power-To-Platform

Power-To-Platform

Has power to platform

Basket Rotation

Basket Rotation

Rotating platform for flexibility

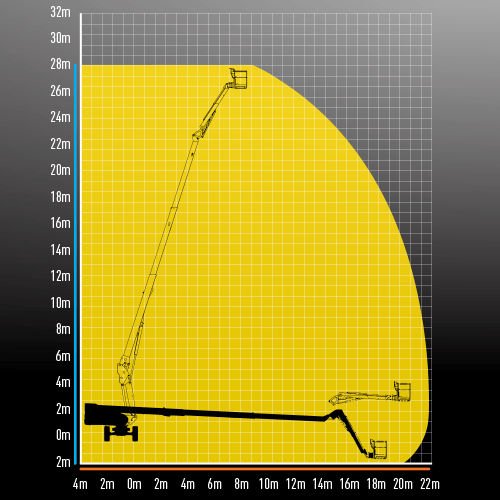

Working envelope

Working envelope

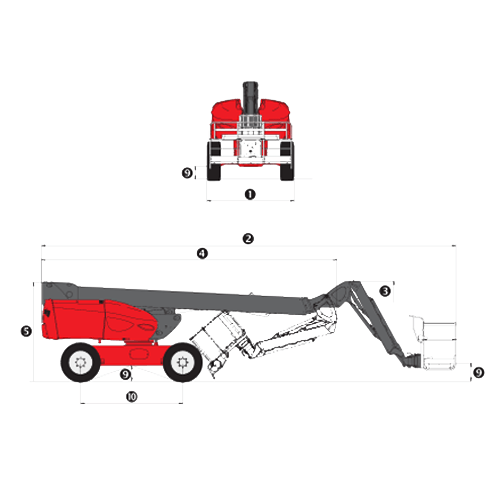

Dimension drawing

Dimension drawing

MACHINE INFORMATION

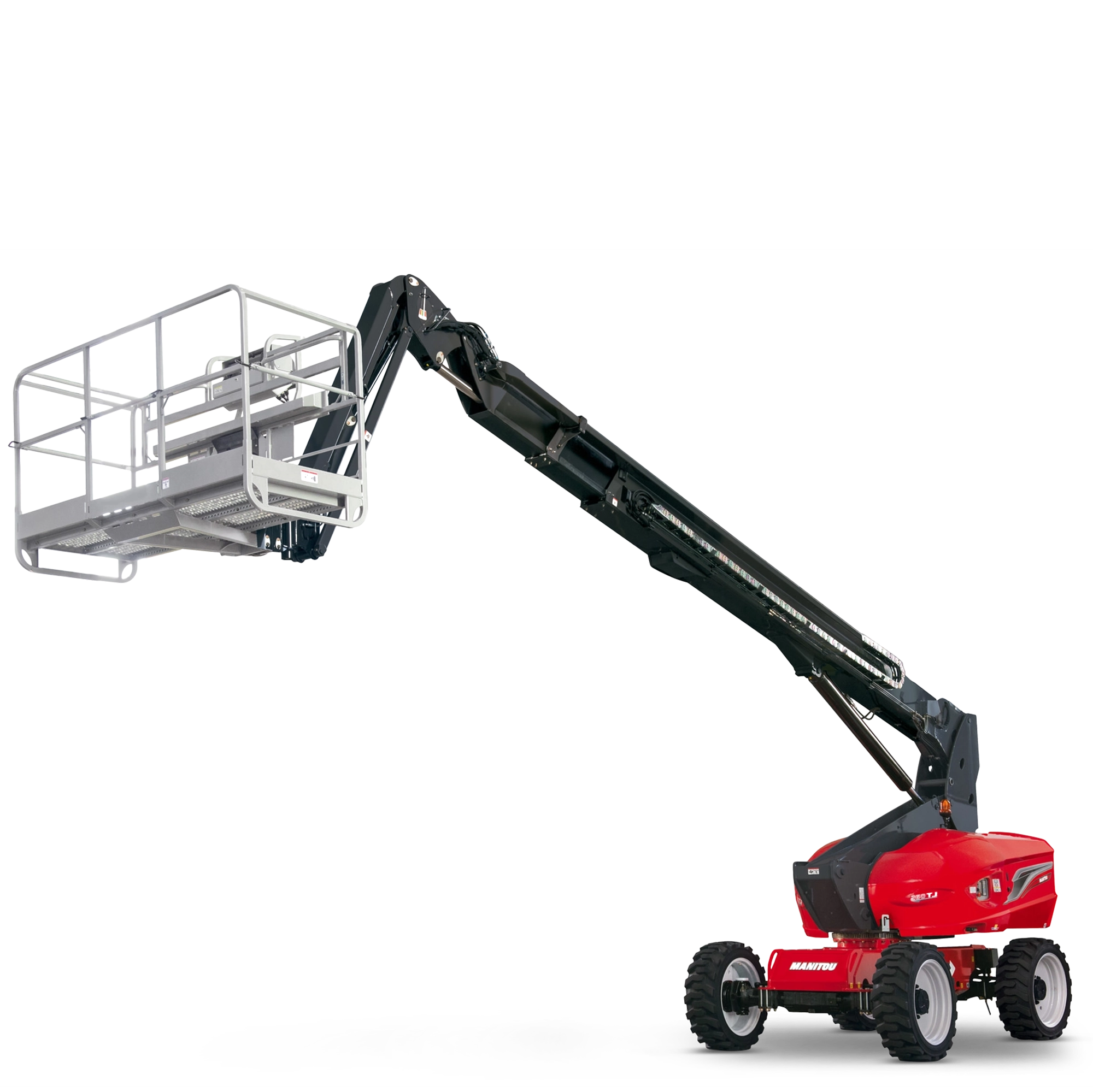

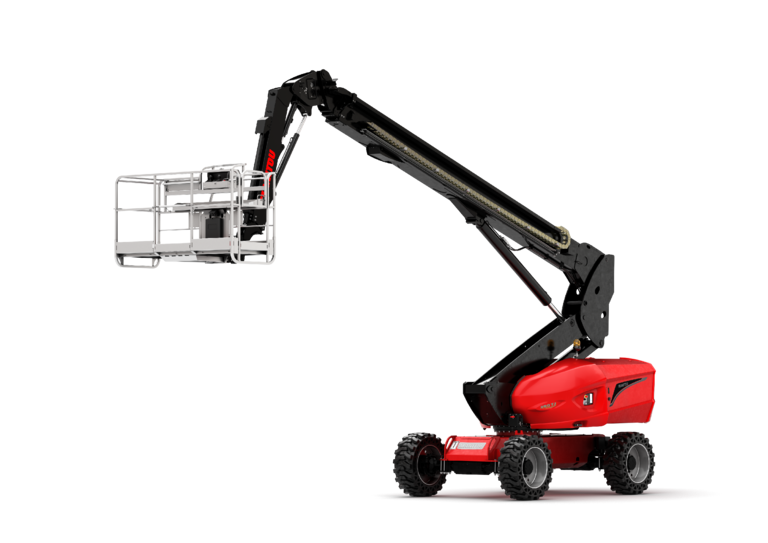

The Manitou 280TJ is a diesel-powered telescopic boom lift designed for high-reach applications. It offers a maximum working height of 27.75 meters and a horizontal outreach of 21.45 meters, enabling access to challenging work areas. The platform supports up to 350 kilograms, accommodating up to three operators and their equipment. Its compact design, with a width of 2.43 meters and a stowed height of 2.72 meters, enhances maneuverability in confined spaces. Equipped with four-wheel drive and four-wheel steering, the 280TJ ensures superior performance on rough terrains. Additional features include a 360° continuous turret rotation, oscillating front axle, and a 3.8-meter jib with 70° of tilt, providing versatility for various tasks. The machine's weight is 16,500 kilograms.

STANDARD FEATURES

The Manitou 280 TJ diesel-powered telescopic platform provides the greatest working height of the range (27.75m).

Thanks to the continuous turret rotation and its horizontal outreach of more than 21m, movements of the machine are reduced and the operator has an exceptional working area. Its significant ground clearance combined with its all-terrain capabilities guarantee a high-level clearance capacity.

The 280 TJ access platform has very compact dimensions and a weight that is less than the standard, which improves maneuverability on cluttered sites and faciltates its transport. The noise level is reduced as well as fuel consumption thanks in particular to the incremental hydraulic management for engine speed.

Basket Rotation

Benefit from a basket rotation of +90°/-90° improving productivity on site for your operators

Turret Rotation

Featuring 360° continuous turret rotation

Basket Rotation

This machine also features a tilting jib with a range of +70°/-70° allowing for extra accessibility in tight spaces
