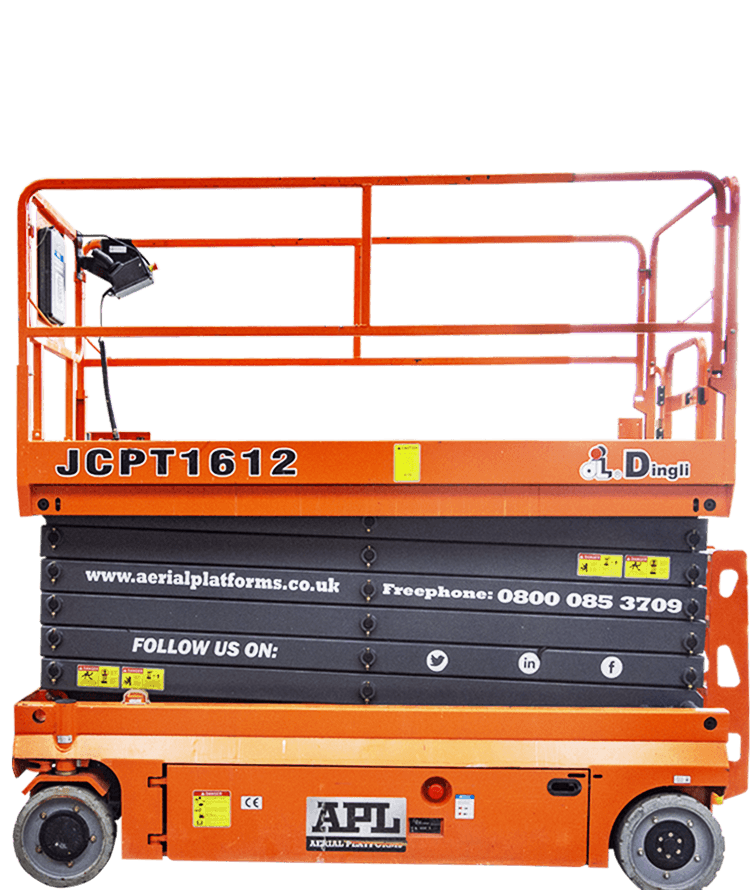

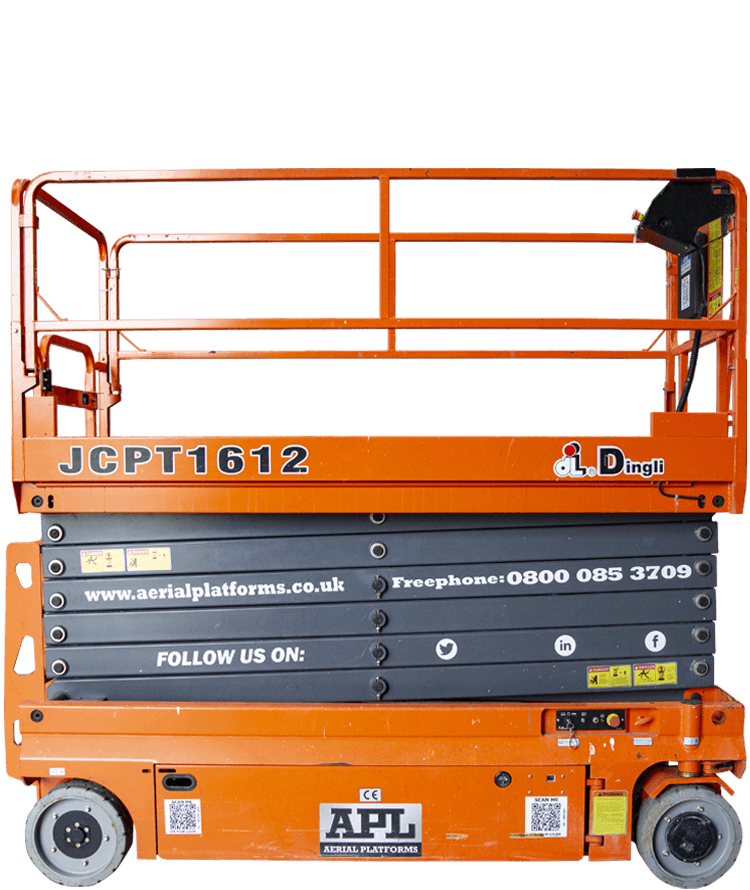

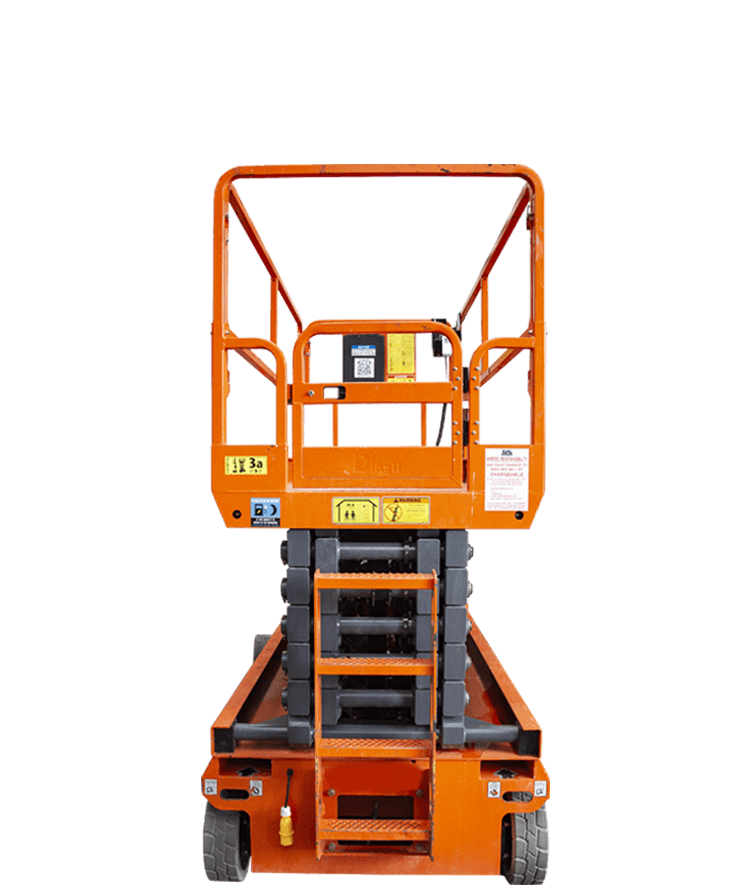

Dingli JCPT1612DC Electric Scissor Lift - APL
Dingli JCPT1612DC
Dingli JCPT1612DC
Dingli JCPT1612DC
Dingli JCPT1612DC
Dingli JCPT1612DC
Dingli JCPT1612DC
Right Arrow
Left Arrow

Dingli JCPT1612DC

Specifications

Working Height

15.70m

Platform Height

13.70m

Lift Capacity

250kg

Overall Length

2.84m

Overall Width

1.25m

Overall Height (Rails Up)

2.59m

Overall Height (Rails Down)

2.05m

Platform Size (L x W)

2.64m x 1.12m

Deck Extension

0.90m*

Ground Clearance (Stowed)

0.10m

Ground Clearance (Raised)

0.019m

Wheelbase

2.22m

Turning Radius (Inside)

0m

Turning Radius (Outside)

2.65m

Gradeability

25%

Weight

3,180kg

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Please follow all health and safety guidelines when using our products. Always wear the appropriate protective equipment and adhere to local regulations to ensure safe handling and operation.

Health & Safety downloads

Application & uses

Battery Powered

Battery Powered

Emission-free electric power

Non Marking Tyres

Non Marking Tyres

Indoor and delicate surface use

Power-To-Platform

Power-To-Platform

Has power to platform

Working envelope

Working envelope

Dimension drawing

Dimension drawing

MACHINE INFORMATION

​The Dingli JCPT1612DC is an electric scissor lift offering a maximum working height of 15.7 meters and a platform capacity of 250 kilograms, accommodating up to two occupants. The platform measures 2.64 meters in length and 1.12 meters in width, with a 0.9-meter extension deck for increased reach. Its compact dimensions—2.84 meters in length, 1.25 meters in width, and a stowed height of 2.59 meters (reducible to 2.05 meters with rails folded)—enhance maneuverability in confined spaces. The lift features a zero inside turning radius and an outside turning radius of 2.65 meters, with a gradeability of 25%. Weighing 3,180 kilograms, it is equipped with non-marking tires and offers power-to-platform functionality. Additional features include a self-locking gate on the platform for added safety and proportional drive controls with the ability to drive at full height.

STANDARD FEATURES

Self-lock gate on platform for added safety

Proportional drive controls with the ability to drive at full height

2.64m x 1.12m platform size 0.90m extending deck for increased productivity

Working Height

15.70m working height with the ability to drive at full height

Low Weight

Low weight of just 3,180kg which is considerably lighter than other machines with similar working heights

Working Height

Optional extending deck of 0.90m for increased platform length
