Electric Scissor Lift
| Working Height | 15.70m |
| Platform Height | 13.70m |
| Lift Capacity | 250kg |
| Overall Length | 2.84m |
| Overall Width | 1.25m |
| Overall Height (Rails Up) | 2.59m |
| Overall Height (Rails Down) | 2.05m |
| Platform Size (L x W) | 2.64m x 1.12m |
| Deck Extension | 0.90m* |
| Ground Clearance (Stowed) | 0.10m |
| Ground Clearance (Raised) | 0.019m |
| Wheelbase | 2.22m |
| Turning Radius (Inside) | 0m |
| Turning Radius (Outside) | 2.65m |
| Gradeability | 25% |
| Weight | 3,180kg |

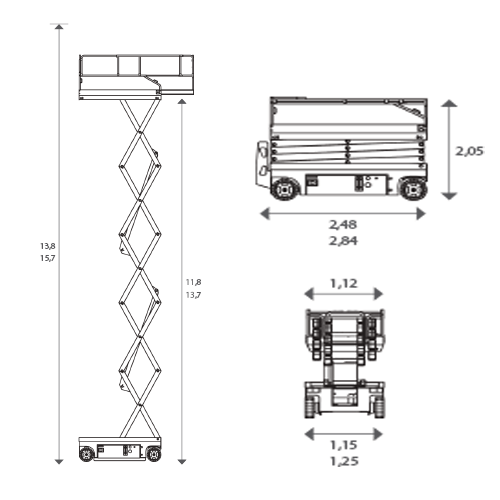

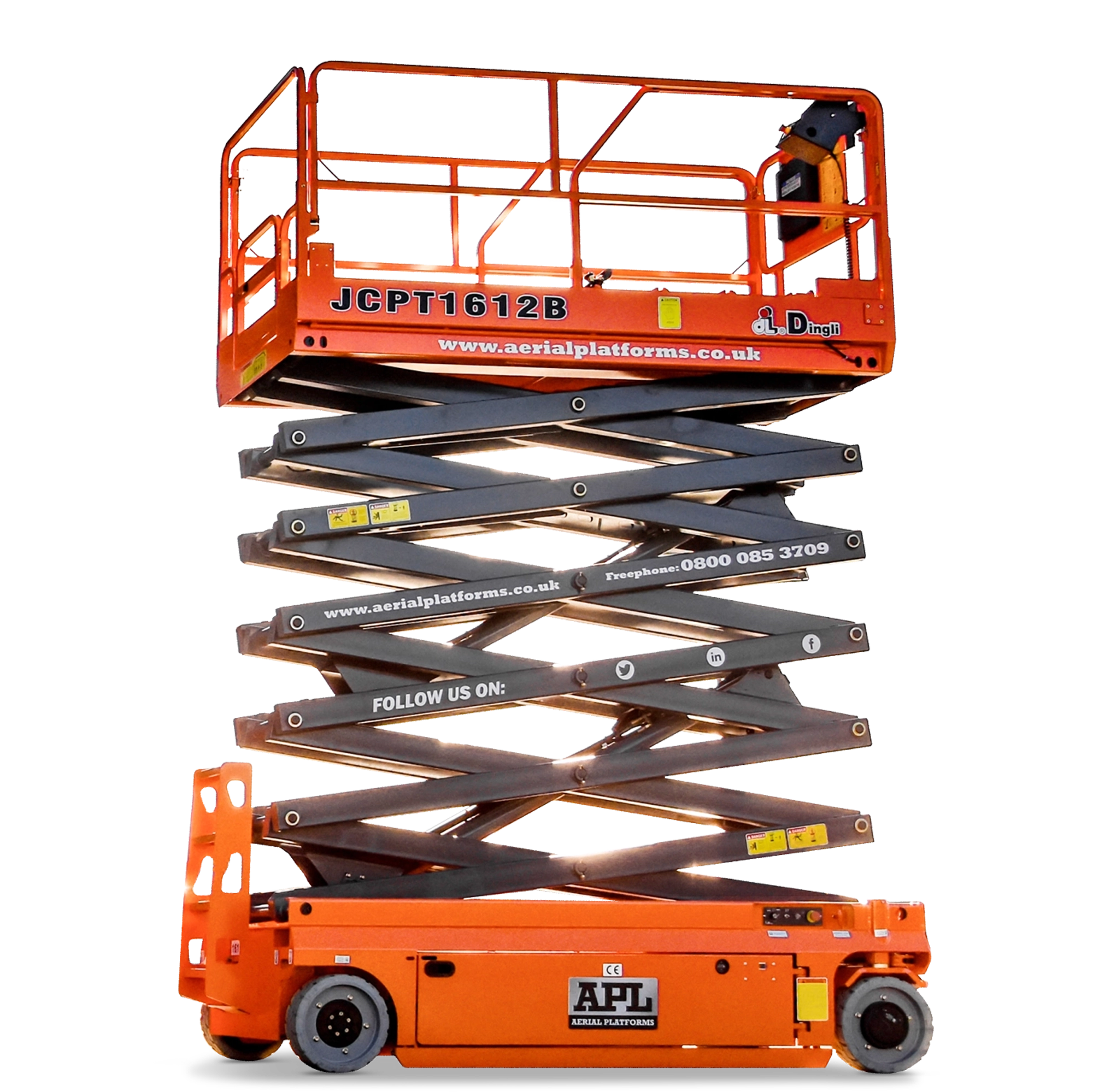

The Dingli JCPT1612DC is an electric scissor lift offering a maximum working height of 15.7 meters and a platform capacity of 250 kilograms, accommodating up to two occupants. The platform measures 2.64 meters in length and 1.12 meters in width, with a 0.9-meter extension deck for increased reach. Its compact dimensions—2.84 meters in length, 1.25 meters in width, and a stowed height of 2.59 meters (reducible to 2.05 meters with rails folded)—enhance maneuverability in confined spaces. The lift features a zero inside turning radius and an outside turning radius of 2.65 meters, with a gradeability of 25%. Weighing 3,180 kilograms, it is equipped with non-marking tires and offers power-to-platform functionality. Additional features include a self-locking gate on the platform for added safety and proportional drive controls with the ability to drive at full height.
Self-lock gate on platform for added safety
Proportional drive controls with the ability to drive at full height
2.64m x 1.12m platform size 0.90m extending deck for increased productivity

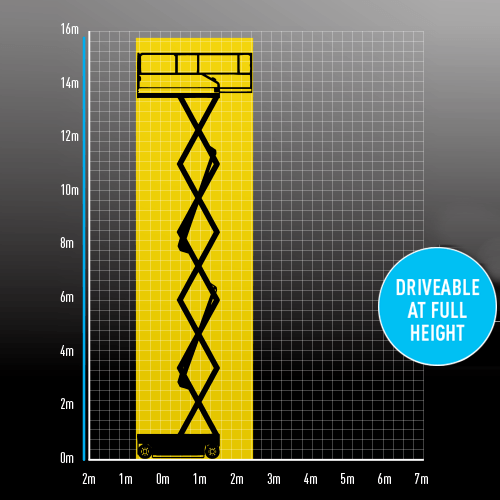

15.70m working height with the ability to drive at full height
Low weight of just 3,180kg which is considerably lighter than other machines with similar working heights
Optional extending deck of 0.90m for increased platform length
