Electric Scissor Lift

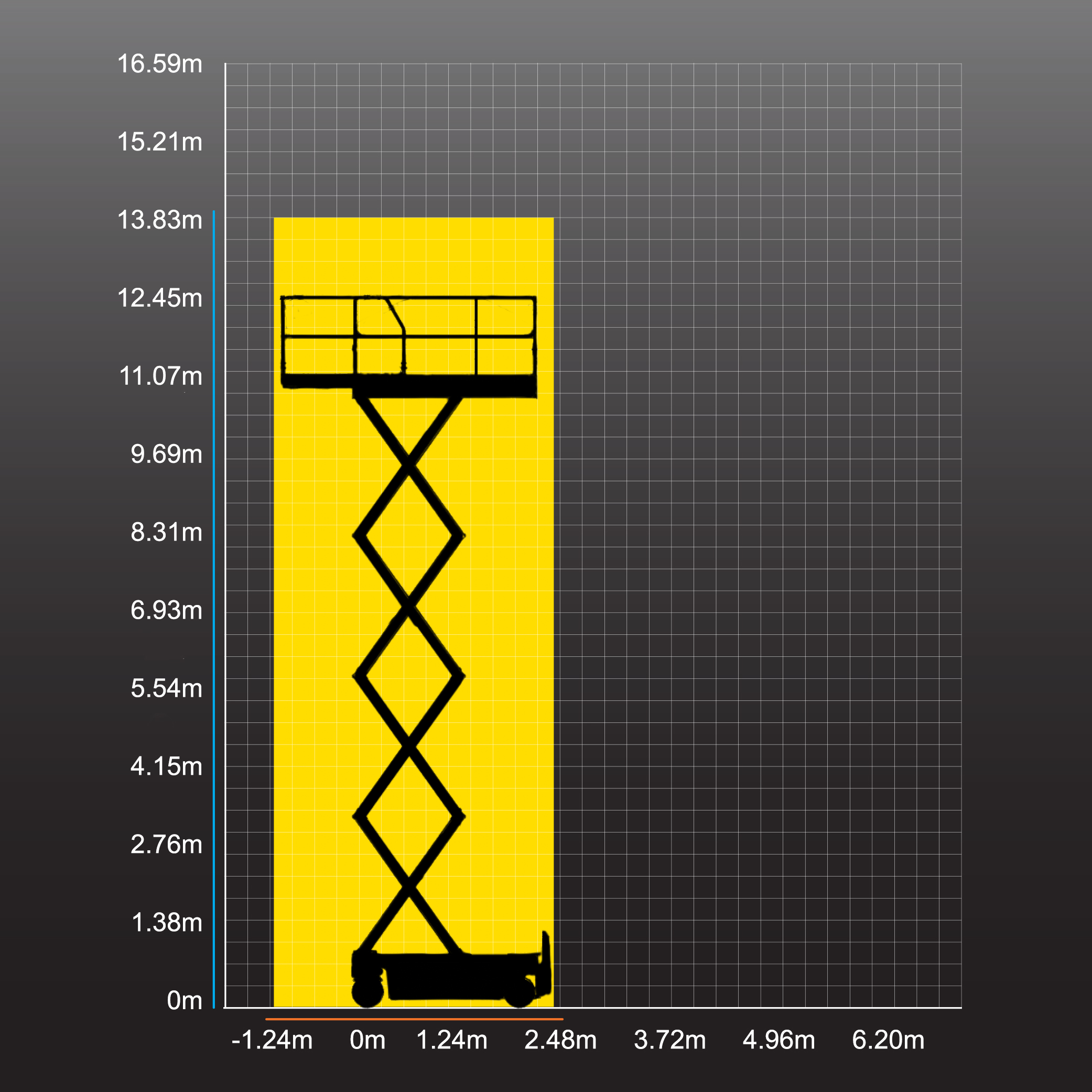

| Working Height (A) | 13.80m |
| Platform Height (B) | 11.80m |
| Overall Length (C) | 2.48m |
| Overall Width (D) | 1.19m |
| Overall Height (Rails Up) (E) | 2.62m |
| Overall Height (Rails Down) (F) | 2.09m |
| Platform Size | 2.27m x 1.12m |
| Lift Capacity (SWL) | 408kg |
| Deck Extension (G) | 0.90m |
| Ground Clearance (Stowed) | 0.10m |
| Ground Clearance (Raised) | 0.019m |
| Wheelbase (H) | 1.87m |
| Turning Radius (Inside) | 0m |
| Turning Radius (Outside) | 2.10m |
| Gradeability | 25% |
| Weight | 3,380kg |

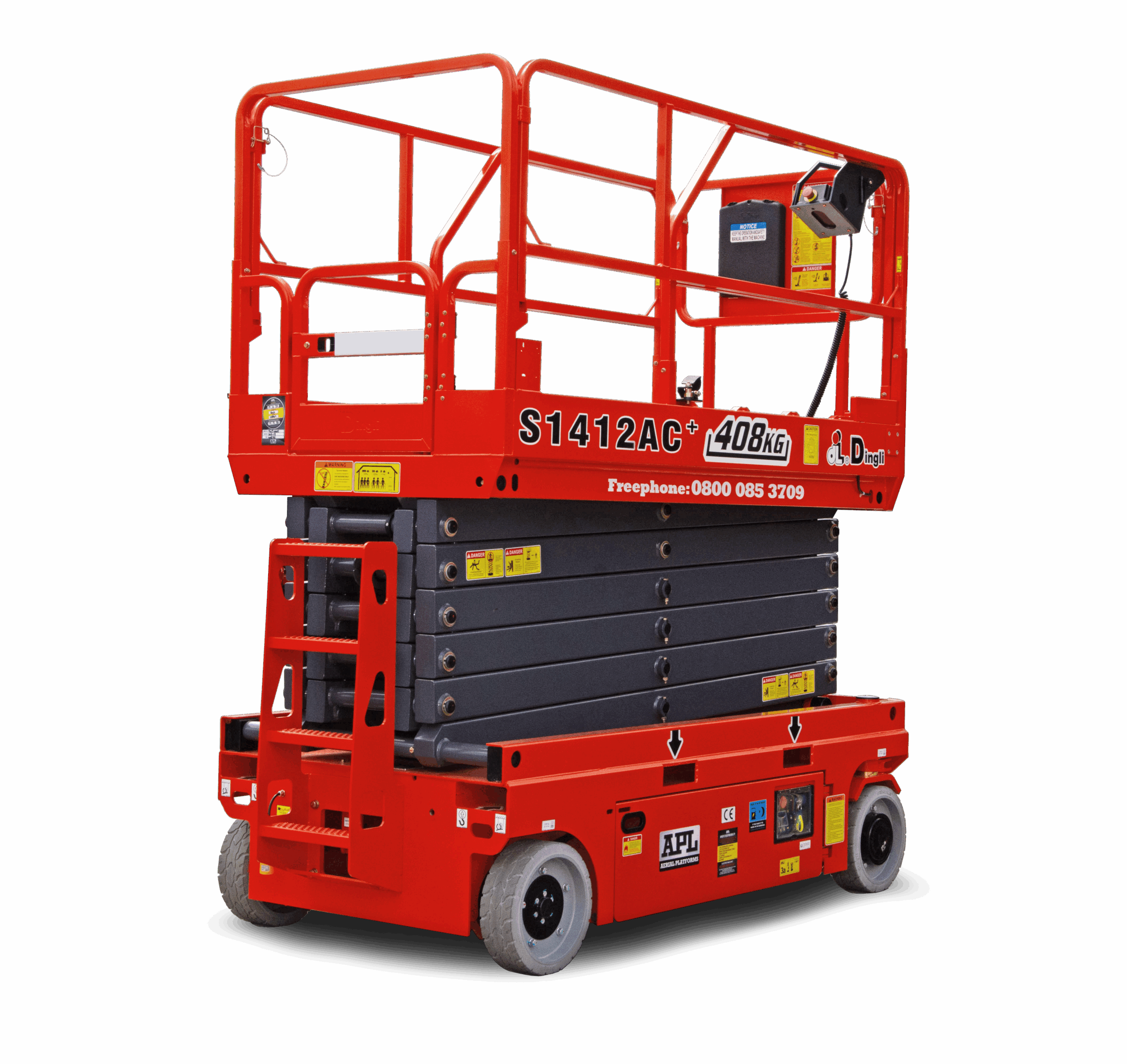

The Dingli S1412AC+ is a versatile, high-performance electric scissor lift designed for safe, efficient work at height. It offers a generous platform capacity and innovative features like gravity-down energy recovery, electric actuator steering, and fully sealed AC motors for long-lasting, maintenance-free operation. With its modern control panel, onboard diagnostic system, automatic pothole protection, and zero-leak hydraulic containment, the S1412AC+ delivers superior reliability, energy efficiency, and operator safety for a wide range of indoor and outdoor applications.
Platform capacity is 408 kilograms on the main platform and 113 kilograms on the extension.
The Dingli S1412AC+ is drivable at full height with non-marking tyres, two-wheel drive and steering, and automatic braking.
It accommodates up to three occupants indoors and one outdoors.
An optional hydraulic oil heater allows the lift to perform reliably in freezing temperatures.
The Dingli S1412AC+ includes an automatic pothole protection system, ensuring stable and safe operation over uneven ground.
It's equipped with an onboard diagnostic system that provides real-time fault codes and status information, making troubleshooting faster and more efficient.
