Electric Scissor Lift

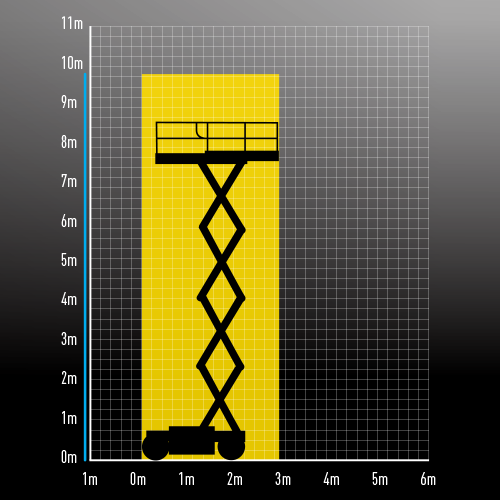

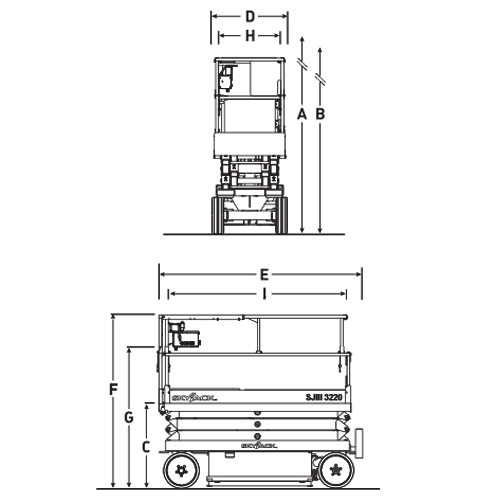

| A. Working Height | 9.75m |
| B. Platform Height | 7.92m |
| C. Height Stowed | 2.15m |
| D. Overall Width | 0.81m |
| E. Overall Length | 2.32m |
| F. Stowed Height (Rails Up) | 2.15m |
| G. Stowed Height (Rails Down) | 1.79m |
| H. Platform Width (Inside Dimension) | 0.71m |
| I. Platform Length (Inside Dimension) | 2.13m |
| Deck Extension | 0.91m |
| Ground Clearance (Stowed) | 8.89cm |
| Ground Clearance (Raised) | 1.90cm |
| Wheelbase | 1.75m |
| Gradeability | 30% |
| Turning Radius (Inside) | 1.27m |
| Turning Radius (Outside) | 2.74m |
| Maximum Drive Height | Full Height |
| Lift Capacity | 227kg |
| Maximum No. of Persons | 2 |
| Wind Rating | 28mph (12.5 m/s) |
| Weight | 1,876kg |

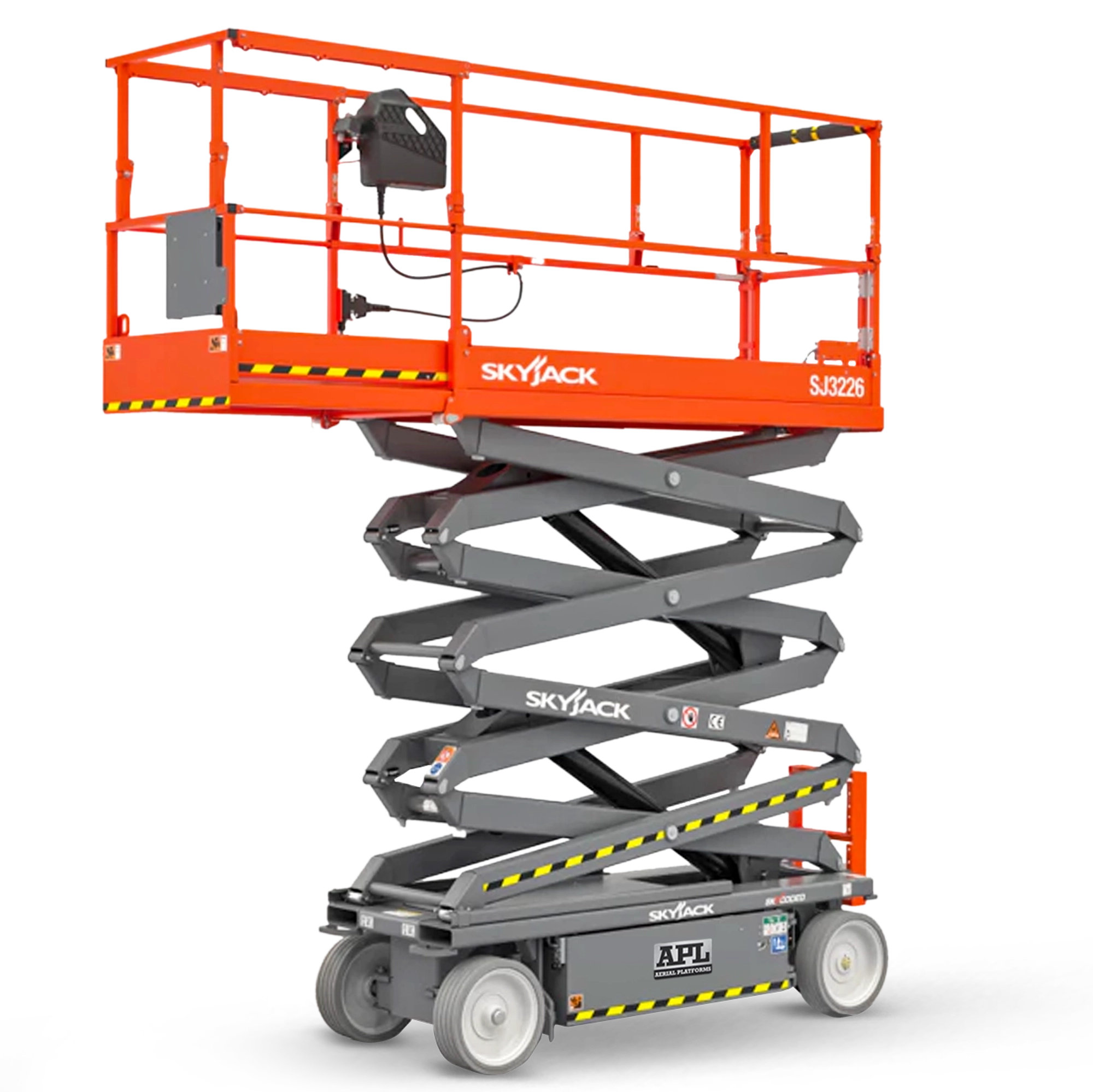

The Skyjack SJ3226 is a compact electric scissor lift designed for efficient operation in confined spaces. It offers a maximum working height of 9.75 meters and a platform capacity of 227 kg, accommodating up to two occupants. The platform measures 2.13 meters by 0.71 meters, with a 0.91-meter roll-out extension for extra reach. With an overall width of 0.81 meters and a stowed height of 2.15 meters (1.79 meters with folded guardrails), it easily navigates standard doorways. Its 1.27-meter inside turning radius and 30% gradeability enhance maneuverability, while solid non-marking tires make it ideal for indoor use. Weighing 1,876 kg, the SJ3226 is drivable at full height and includes collapsible guardrails and a power-to-platform outlet for added convenience.
These ultra compact self propelled scissors are perfect for manoeuvring and working in small spaces.
Collapsable guard rails for increased manoeuvrability in tight spaces
Power-to-platform as standard allowing for increased productivity for your workforce
Max working height of 9.75m suitable for a number of internal applications
Benefit from a lift capacity of 227kg
Low machine weight of just 1,876kg making it ideal for work on sensitive flooring
