Skyjack SJ4740 Electric Scissor Lift - Aerial Platforms Ltd
Skyjack SJ4740
Skyjack SJ4740
Skyjack SJ4740
Skyjack SJ4740
Skyjack SJ4740
Skyjack SJ4740
Right Arrow
Left Arrow

Skyjack SJ4740

Specifications

A. Working Height

13.80m

B. Platform Height

11.80m

C. Lowered Platform Height

1.37m

D. Overall Width

1.19m

E. Overall Length

2.40m

F. Height Stowed (Rails Up)

2.48m

G. Height Stowed (Rails Down)

2.21m

H. Platform Width (Inside Railing)

1.06m

I. Platform Inside Length (Retracted)

2.19m

Deck Extension

0.90m

Ground Clearance (Pothole Raised)

8.10cm

Ground Clearance (Pothole Deployed)

1.90cm

Wheelbase

1.85m

Gradebability

25%

Turning Radius (Inside)

0.54m

Turning Radius (Outside)

2.58m

Maximum Drive Height

Full Height

Lift Capacity

227kg*

Weight

3,400kg*

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Please follow all health and safety guidelines when using our products. Always wear the appropriate protective equipment and adhere to local regulations to ensure safe handling and operation.

Health & Safety downloads

Application & uses

Battery Powered

Battery Powered

Emission-free electric power

Non Marking Tyres

Non Marking Tyres

Indoor and delicate surface use

Power-To-Platform

Power-To-Platform

Has power to platform

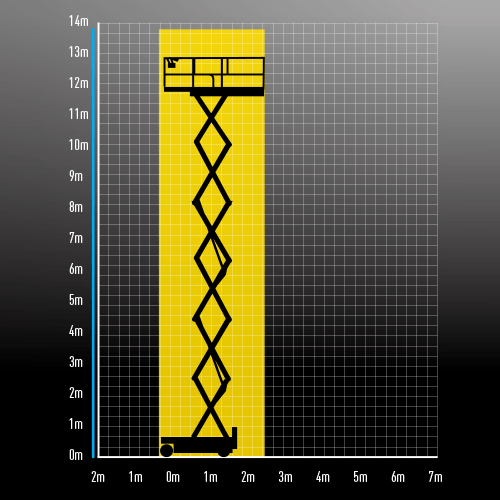

Working envelope

Working envelope

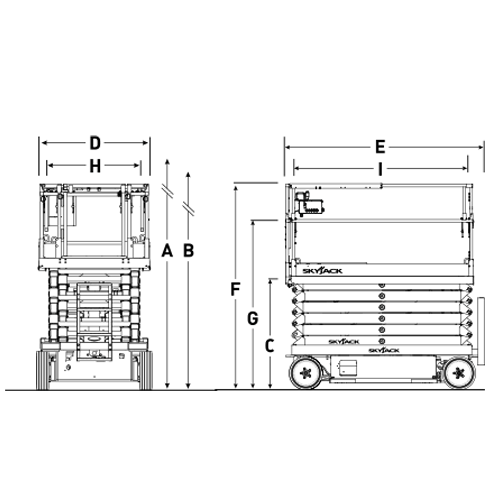

Dimension drawing

Dimension drawing

MACHINE INFORMATION

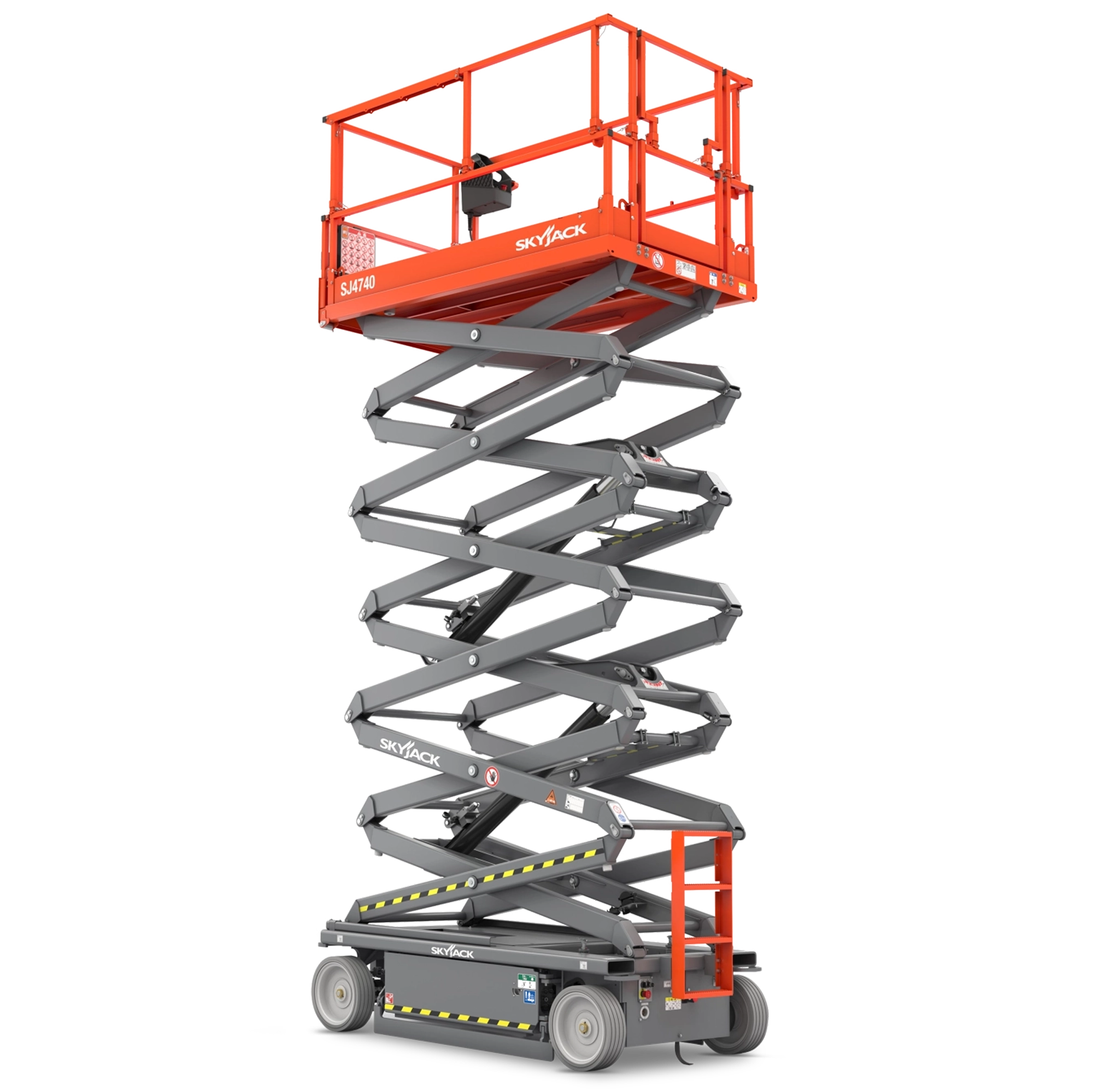

​The Skyjack SJ4740 is an electric scissor lift designed for indoor applications, offering a maximum working height of 13.80 meters and a platform capacity of 227 kilograms. Its compact dimensions—2.40 meters in length and 1.19 meters in width—allow it to navigate through standard doorways and operate efficiently in confined spaces. The platform features a 0.90-meter extension for increased reach, and the lift is drivable at full height, enhancing productivity on the job site. Additional features include solid rubber, non-marking tires, pothole protection, and a gradeability of 25%, ensuring reliable performance across various terrains.

STANDARD FEATURES

Drivable at full height of 11.80m with roll our deck fully extended

Variable speed, front wheel hydraulic drive

Solid rubber, non-marking tyres, pothole protection and a gradeability of 25%

Working Height

Benefit from a working height of 13.80m ideal for a range of indoor projects

Lift Capacity

Offering a lift capacity of 227kg providing access for 2 men and their tools

Working Height

Compact machine dimensions of 1.19m x 2.40m
