| Working Height | 20.80m |
| Platform Height | 18.80m |
| Horizontal Outreach | 12.80m |
| Lift Capacity | 225kg* |
| Platform Size | 1.80m x 0.80m |
| Jib Articulation | 150° |
| Platform Rotation | 160°* |
| Height Stowed | 2.18m |
| Width | 2.27m |
| Length Stowed | 6.62m |
| Length Stowed (Transport Position) | 5.47m |
| Turning Radius | 3.89m |
| Gradeability | 45% |
| Weight | 6,680kg* |

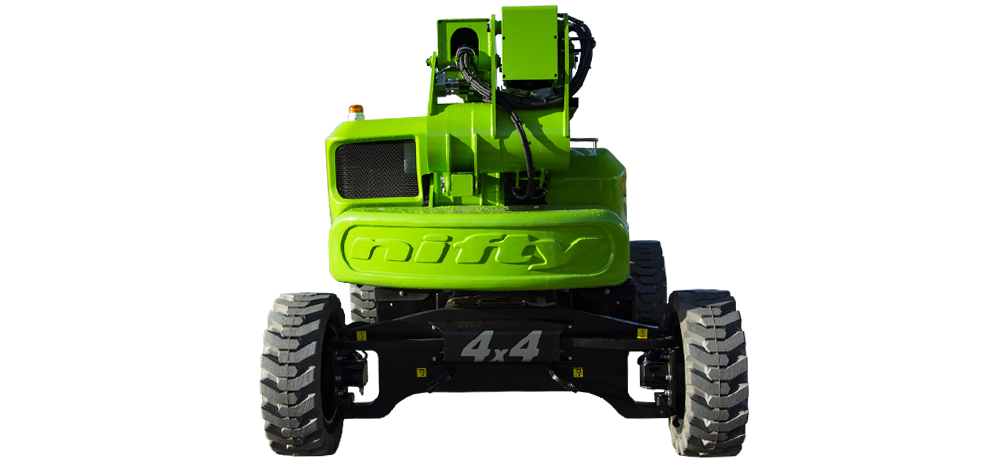

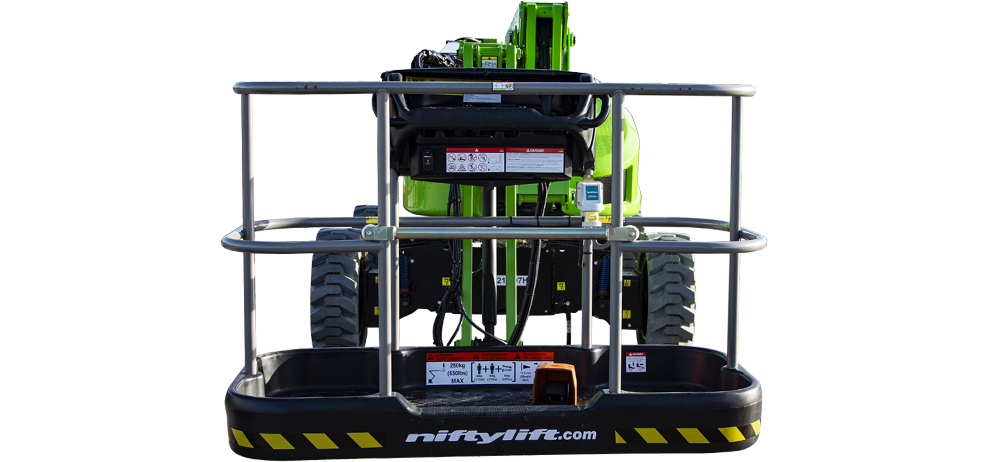

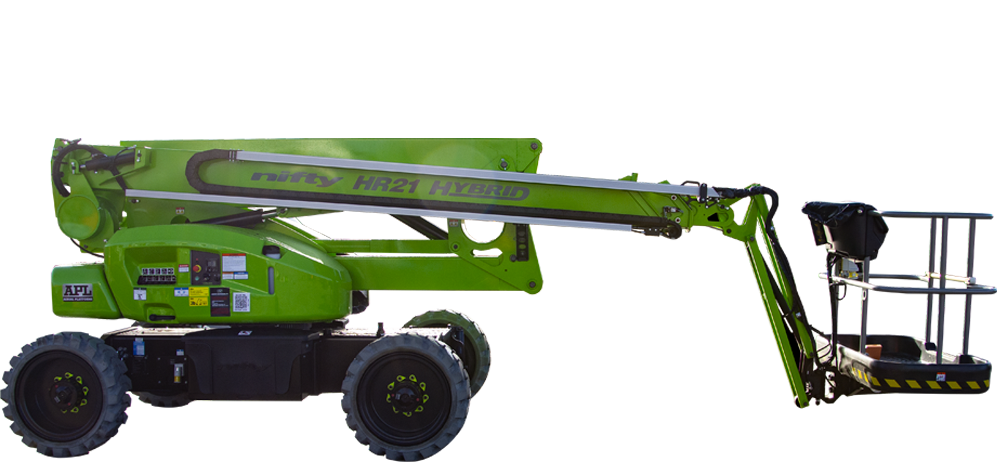

Winner of the International Powered Access Federation's 'IAPA Product of the Year 2018' award, the HeightRider 21 4x4 (HR21 4x4) self-propelled cherry picker will lift 2 persons and their tools to a working height of 20.8m or a working outreach of 13m.
Proportional controls deliver smooth, measured operation while 160º cage rotation and a 150º fly-boom allow precise positioning anywhere in its vast working envelope.
Weighing just 6,640kg, the HR21 4x4 combines innovative weight and space-saving design with an excellent turning circle to deliver outstanding manoeuvrability on-site and lower transportation costs.
The Hybrid option incorporates a smaller, power-optimised Tier 4 Final/Euro Stage V compliant engine supported by the machine's battery pack for when extra power is needed. This maintains power and performance while reducing fuel consumption for maximum efficiency.
The Innovative 'Diesel Re-Gen' feature also recharges the batteries without a mains power source, giving a 'fast-charge' whenever the machine is idle and the engine running.
In addition, an electric-only mode allows zero-emission operation, making it ideal for indoor use, or for quiet, clean operation.
