Skyjack SJ63 AJ

Specifications

Working Height

21.38m

Platform Height

19.38m

Horizontal Reach

12.19m

Up and Over Height

8.38m

A. Platform Size

0.91m x 2.44m

B. Width Stowed

2.44m

C. Tailswing

0m

D. Height Stowed

2.54m

E. Transportation Height

2.79m

F. Length Stowed

9.14m

G. Transportation Length

7.75m

H. Wheelbase

2.44m

I. Ground Clearance

0.33m

Rotation (Continuous)

360°

Platform Rotation

170°

Jib Length

1.68m

Jib Range

+65°/-60°

Turning Radius (Inside)

2.21m

Turning Radius (Outside)

5.31m

Gradeability

45%

Axle Oscillation

10.16cm

Lift Capacity

227kg

Maximum No. of Persons

2

Weight

9,934kg

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Please follow all health and safety guidelines when using our products. Always wear the appropriate protective equipment and adhere to local regulations to ensure safe handling and operation.

Health & Safety downloads

Application & uses

Diesel Powered

Diesel Powered

Reliable diesel performance

4 x 4 Drive

4 x 4 Drive

All-terrain capability

Power-To-Platform

Power-To-Platform

Has power to platform

Basket Rotation

Basket Rotation

Rotating platform for flexibility

Working envelope

Working envelope

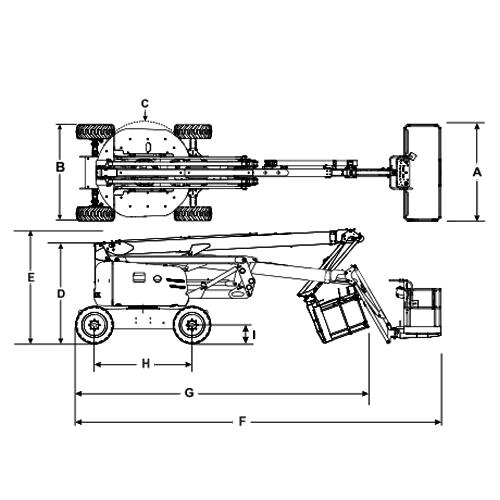

Dimension drawing

Dimension drawing

MACHINE INFORMATION

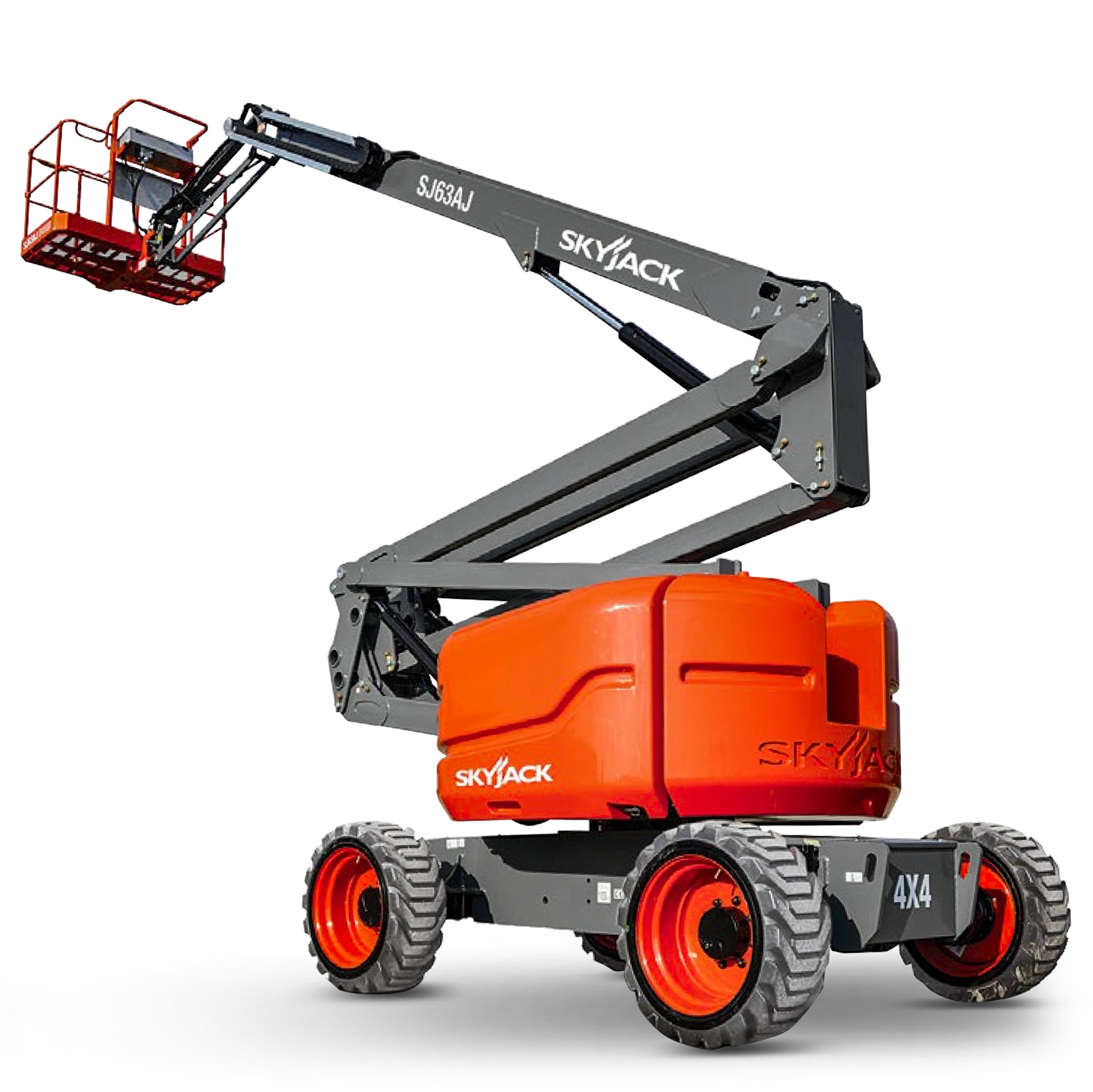

The Skyjack SJ63 AJ is a diesel-powered articulating boom lift with a 21.38-meter working height and 12.19-meter outreach, ideal for versatile access. It supports a 227-kilogram platform capacity and features a 1.68-meter jib with a +65° to -60° range and 170° platform rotation for precise positioning. Its compact design, with a 2.54-meter height and 2.44-meter width, allows easy transport. Equipped with four-wheel drive and 45% gradeability, it performs well on rough terrain. Additional features include zero tailswing and a tight turning radius for enhanced maneuverability. The machine weight is 9,934 kilograms.

STANDARD FEATURES

Skyjack's SJ63/85 AJ features a boom geometry that allows the operator to lower the main fly boom to ground level to restock on material or supplies, then return to full height at the original working position - without lowering the riser section.

Skyjack articulating booms offer precise positioning capabilities packaged in a high capacity boom with industry-leading up-and-over reach.

The tight turning radius on these machines and minimal tailswing make them ideal for maneuvering in confined areas.

SKYRISER

Ensures that the riser and main pivot point connecting the fly boom to the riser travel in a straight vertical line. Movement in a true vertical manner, without drifting forward or back, reduces the amount of repositioning the operator needs to do in order to stay close to a building facade, improving productivity.

EASYDRIVE

This means the boom lift controls are always in the orientation of the operator regardless of position of turret over chassis. This reduces operator confusion by eliminating the need for colour coded arrows to determine drive versus joystick direction.

SKYRISER

An axle-based drive system with an operator controlled locking differential on the rear axle and limited slip differential on the front axle. This drive system has been proven as durable, low maintenance, and capable of navigating any job site terrain.

More Boom Lifts
SEE MORE
Skyjack SJ60 AJ+
Skyjack SJ60 AJ+

Working height

20.29m

Platform capacity

300/454kg

Outreach

11.56m

VIEW MODEL
JLG 600AJ
JLG 600AJ

Working height

20.46m

Platform capacity

227kg

Outreach

12.10m

VIEW MODEL
Niftylift HR21 D
Niftylift HR21 D

Working height

20.80m

Platform capacity

225kg

Outreach

12.80m

VIEW MODEL
Niftylift HR21
Niftylift HR21

Working height

20.80m

Platform capacity

225kg

Outreach

12.80m

VIEW MODEL

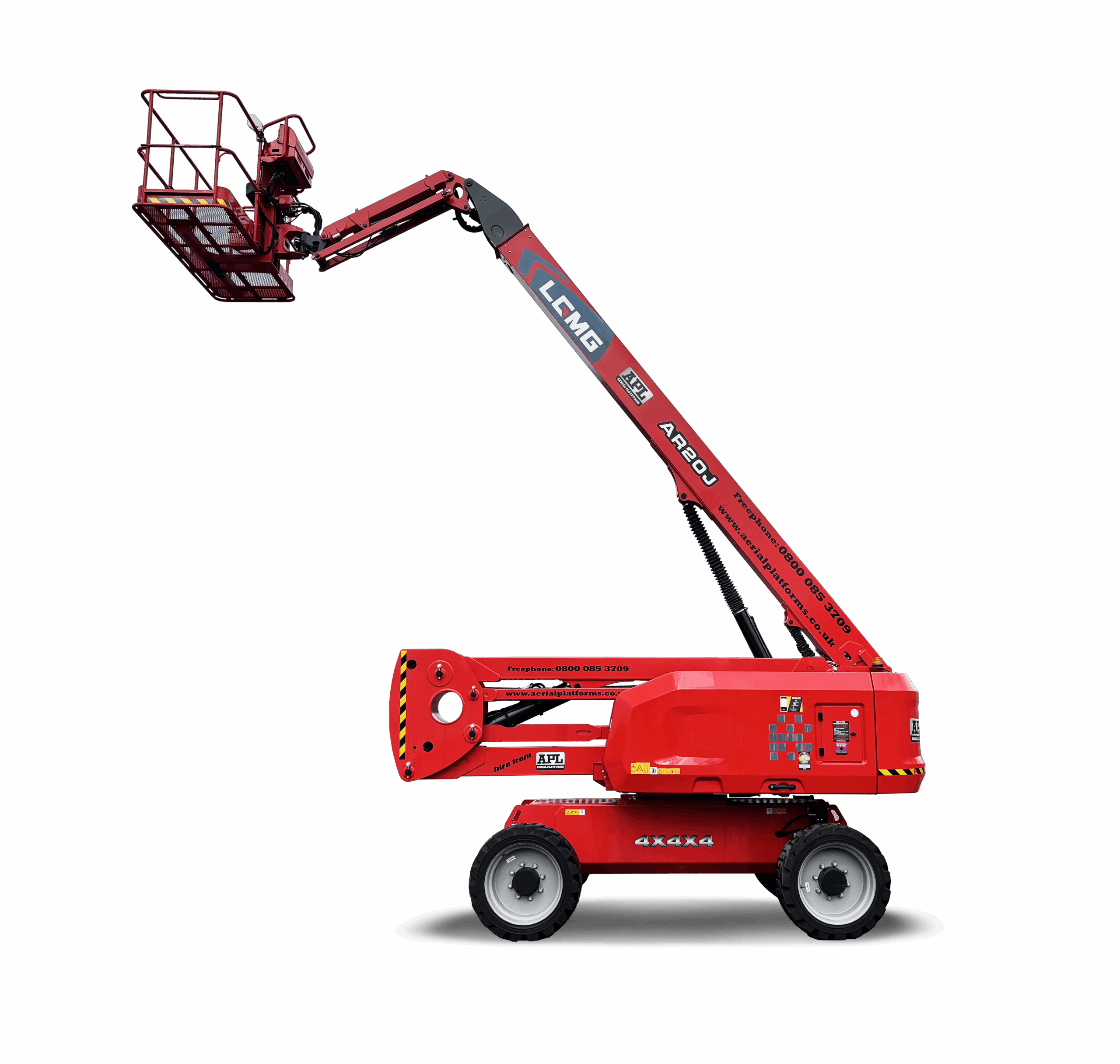

LGMG AR20J
